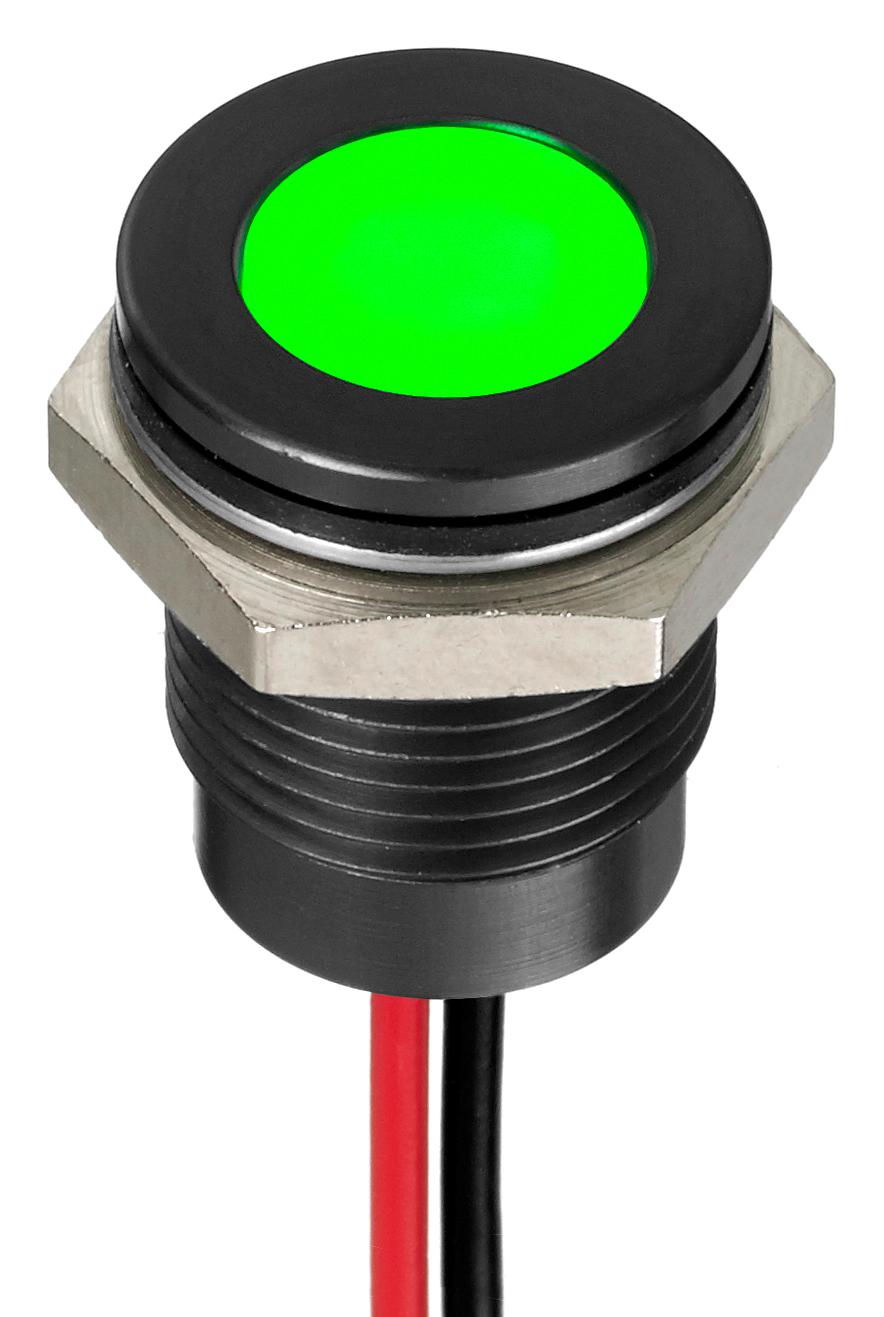

Apem Q14F5BXXHG24E LED Indicator
The Q14 series 14 mm panel mount LED indicators feature high-brightness LEDs with diffused epoxy lenses in various colors including red, green, yellow, blue, white, and RGB options. They are available with prominent or recessed bezels, designed for easy mounting with solder lug, faston terminals, pins, or long wire terminations. These indicators are suitable for harsh environments with IP67 sealing options, operating across a temperature range of -40°C to +85°C. They are ideal for industrial automation, signaling, or control applications requiring durable, vivid LED indicators with customizable engraving for identification.
Apem Q14F5BXXHG24E LED Indicator Specifications:
- Lens Size: 10 mm diffused epoxy or water clear
- LED Types: High-brightness, super bright, hyper bright, RGB, bi-color, tri-color
- Operating Voltage: 1.8 to 33 VDC, 6 to 220 VAC options, varies by model
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Sealing: IP67 option (EN60529), unsealed available
- Operating Temperature Range: -40°C to +85°C, rear epoxy body; -30°C to +65°C, rear plastic body
- Max Panel Thickness: 11 mm
- Material: Plated brass bezel, molded polycarbonate body
- Mounting: M14x1.0 threaded bezel, flush or recessed style
- Terminals: Solder lug, faston, pins, wire terminations, 200 mm wire length
- Electrical Characteristics: Forward voltage varies per color, reverse voltage max 5 V
- Environmental Ratings: IP67 for sealed variants, designed for harsh industrial environments
Buy the APEM Series Q14 LED: Panel Mount Indicator Part Number Q14F5BXXHG24E
Purchase the APEM Series Q14 LED indicator online today and experience top-quality, durable signaling solutions. With high-brightness LEDs, IP67 sealing, and customizable bezels, these indicators are perfect for industrial automation, control panels, and harsh environments. Easy to install with multiple termination options including solder lug, faston, pins, and long wire leads, they provide vivid visual alerts. Trust APEM for reliable, long-lasting illumination in your critical projects and enhance your equipment with superior signaling components.
Order your APEM Series Q14 LED indicator with high-brightness illumination today and ensure reliable signaling in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q14F5BXXHG24E?
You can click on the BUY or RFQ button to purchase Q14F5BXXHG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5BXXHG24E?
You can download the Q14F5BXXHG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5BXXHG24E?
Apem
