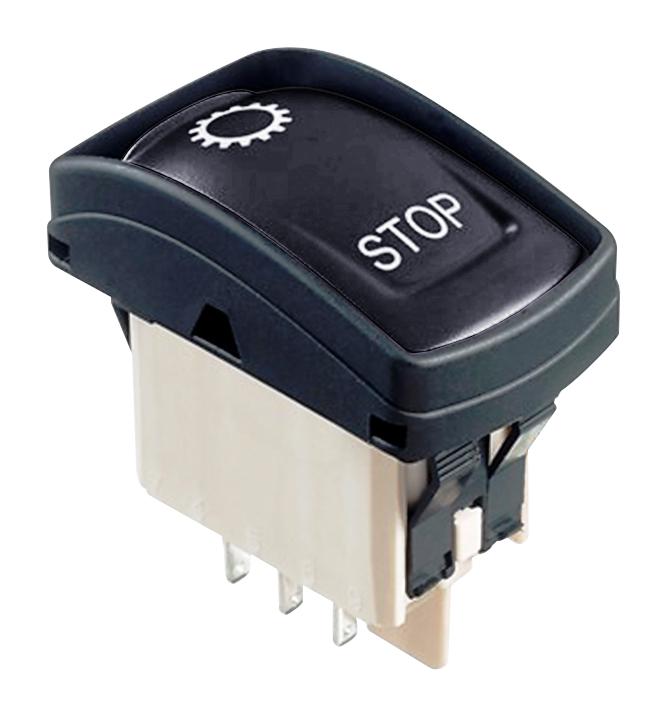

Apem KH137AAZEEG22N09XX10 Power Rocker Switch
Power rocker switch designed for industrial applications with protection guard on 4 sides, IP69K sealing, and rated for resistive loads up to 5A 24VDC or 20mA 12V. Features include sealed front panel, resistance to salt spray, vibration, and operating temperatures from -40°C to +85°C. Suitable for environments requiring durable, sealed switches with illuminated or non-illuminated options, available in various colors with laser etched symbols. Mechanical life exceeds 150,000 cycles, with brass contacts and robust PA 6-6 case construction, ensuring high reliability in harsh conditions.
Apem KH137AAZEEG22N09XX10 Power Rocker Switch Specifications:
- Sealing: IP69K front panel according to DIN 40050-9
- Salt spray resistance: 96 hours IEC 512-6, test 11f
- Vibration resistance: 10-500 Hz / 10 g IEC 60068-2-6
- Operating temperature: -40°C to +85°C
- Current/Voltage rating: 5A 24VDC resistive load, 20 mA 12VDC lamp load
- Mechanical life: 150,000 cycles minimum
- Contacts: Brass, solid silver grain, silver plated or gold plated
- Case material: PA 6-6
- Panel thickness: 0.8mm to 4.6mm, recommended 2-3.5mm
- Dimensions: Cut-out approximately 26.6 mm x 40.3 mm, actuator in various colors, illumination options available
- Contact resistance: 10 mΩ max
- Insulation resistance: ≥ 1,000 MΩ at 500 VDC
- Dielectric strength: ≥ 2,000 Vrms between terminals
Buy the Buy KH Series Power Rocker Switch Part Number KH137AAZEEG22N09XX10 Online
Purchase the KH Series Power Rocker Switch KH137AAZEEG22N09XX10 online today to benefit from durable, high-quality switching solutions. Perfect for demanding applications, this switch features IP69K sealing, withstands extreme temperatures, and offers long mechanical life exceeding 150,000 cycles. Its corrosion-resistant contacts and robust case ensure dependable performance in harsh environments. Choose from illuminated or non-illuminated options in multiple colors, with laser etched symbols for clarity. Experience hassle-free ordering and fast delivery for your industrial, automotive, or machinery projects.
Order your KH Series Power Rocker Switch KH137AAZEEG22N09XX10 today and ensure reliable operation with durable IP69K sealing and robust design for harsh environments.
