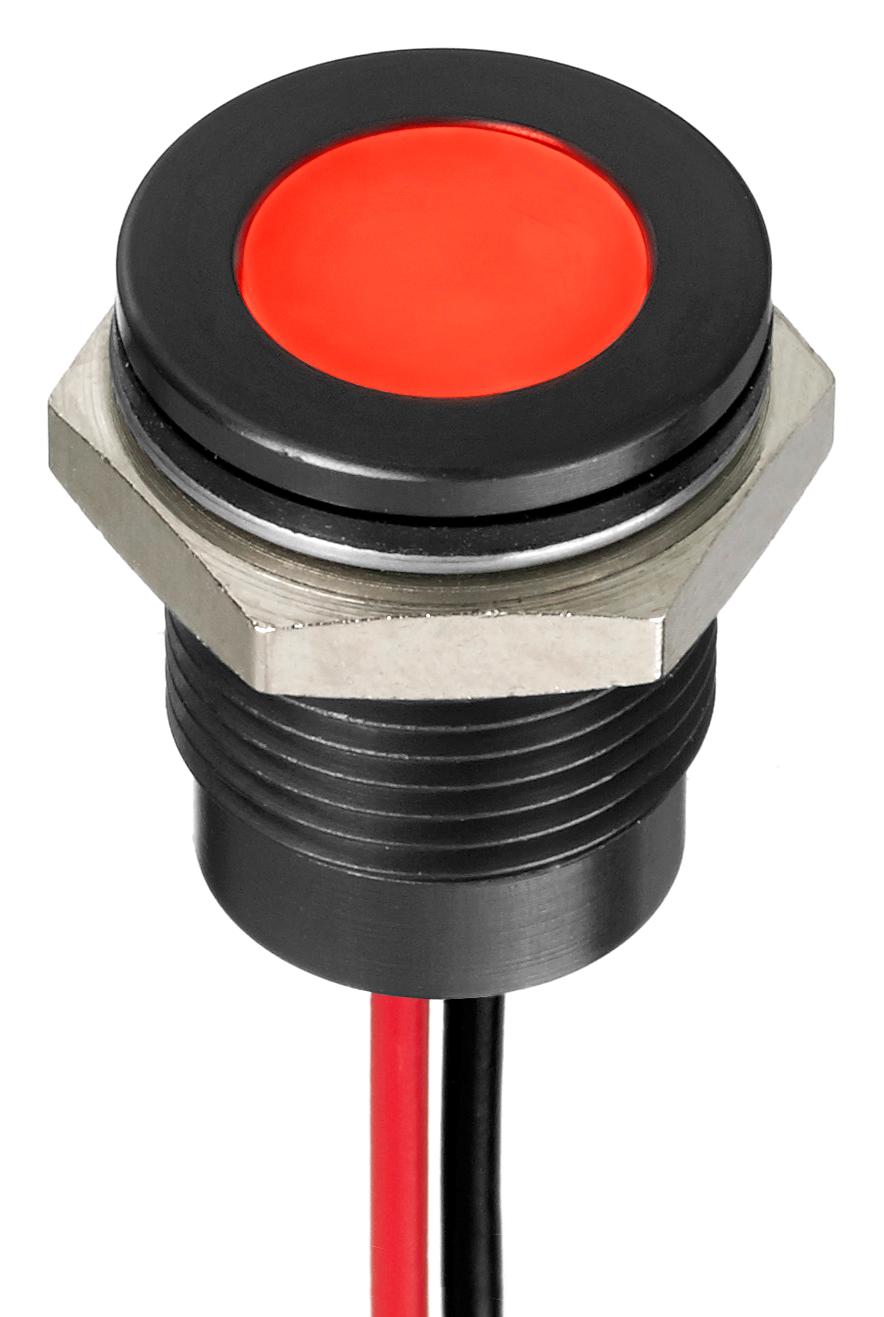

Apem Q14F5BXXHR220E LED Indicator
The Q14 series LED indicators are 14 mm panel mount devices featuring water-clear or diffused epoxy lenses, high-brightness LEDs, and various styling options including prominent and recessed bezels. They support multiple terminal types such as solder lug, faston, pins, or long wire terminations, with optional custom engraving. Suitable for harsh environments, they offer IP67 sealing and temperature ranges from -40°C to +85°C. These indicators are designed for reliable illumination in industrial, automotive, or control panel applications, providing long-lasting, high-intensity signaling with easy installation.
Apem Q14F5BXXHR220E LED Indicator Specifications:
- Lens Options: 10 mm diffused epoxy or water-clear
- LED Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 11 mm
- Operating Temperature Range: -40°C to +85°C
- Sealing: IP67 option available
- Operating Voltage: 1.8 to 33 VDC, 6V to 220 VAC, with resistor options
- Viewing Angles: 30-100°, dependent on model
- Material: Moulded polycarbonate rear body, plated brass bezel
- Bezel Finish: Bright chrome, black, satin grey
- Mounting Hole Size: 14 mm M14x1.0
- Electrical: Various LED colors with standard and hyperbright intensity
- Terminals: Solder lug, faston, pins, or long wire
Buy the APEM Q14F5BXXHR220E – Reliable LED Indicators for Industrial Applications
Enhance your project with the APEM Q14 series LED indicators. Featuring high-brightness LEDs, IP67 sealing, and versatile mounting options, these indicators deliver reliable, long-lasting performance in industrial and automation settings. Available with customized engraving, various LED colors, and sealed options, they are ideal for signaling in harsh environments. Easy to install with screw or quick-connect terminals, these durable indicators ensure clear visual alerts and operational efficiency across multiple applications. Purchase online today to upgrade your control systems.
Order your APEM Series Q14F5BXXHR220E LED indicators today and enhance your control panels with bright, durable illumination solutions designed for harsh environments.
Frequently Asked Questions
Where can I buy Apem Q14F5BXXHR220E?
You can click on the BUY or RFQ button to purchase Q14F5BXXHR220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5BXXHR220E?
You can download the Q14F5BXXHR220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5BXXHR220E?
Apem
