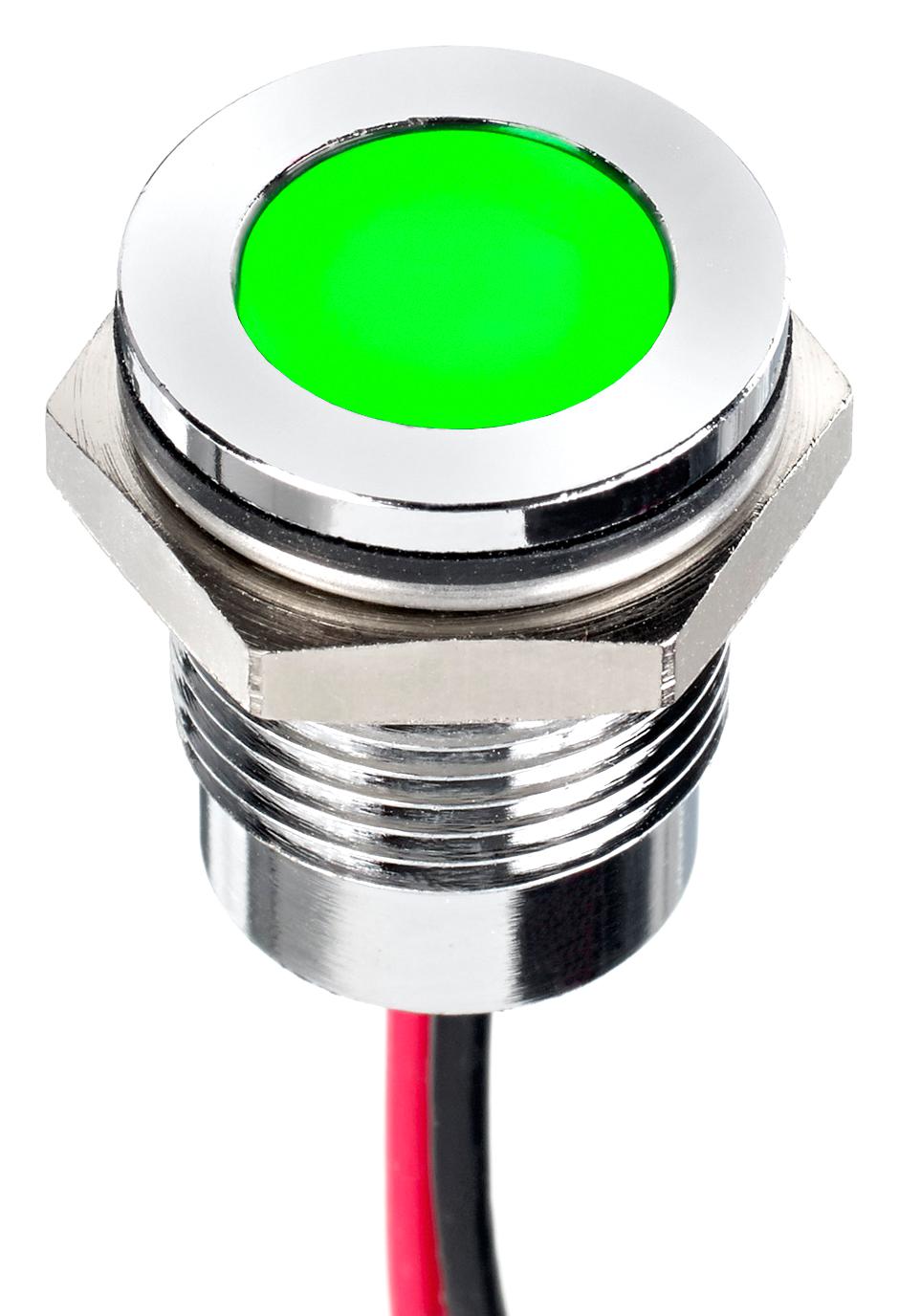

Apem Q14F5CXXHG220E LED Indicator
The Q14 series panel mount LED indicators offer a reliable, bright lighting solution suitable for industrial applications. Featuring 14 mm diameter, water-clear or diffused epoxy lenses, and available in RGB, these LEDs provide high brightness with a life expectancy of 100,000 hours. They include features such as IP67 sealing, multiple termination options (solder lug, faston, pins, or wire), and prominent or recessed bezel styles. Designed for durability in harsh environments, the series supports various voltages and sealing options, making them ideal for control panels, machinery, and industrial equipment.
Apem Q14F5CXXHG220E LED Indicator Specifications:
- Lens Size: 14 mm diameter with diffused epoxy or water-clear options
- Sealing: IP67 sealing option available
- Lens Colors: Red, Green, Yellow, Blue, White, Orange; RGB and bi-color options
- Viewing Angle: 30-100° depending on model
- Temperature Range: Rear plastic body -30°C to +65°C, epoxy body -40°C to +85°C
- Max Reverse Voltage: 5 V
- LED Life Expectancy: 100,000 hours
- Material: Plated brass bezel finished in bright chrome, black, satin grey; molded polycarbonate rear body
- Mounting Hole: M14x1.0
- Maximum Panel Thickness: 11 mm
- Electrical: Forward voltage varies by color, operating voltage from 1.8V to 33VDC, AC options available
- Terminals: Solder lug, faston, short body pins, rear epoxy wires
- Power Consumption: Typical 20 mA at specified voltages
- Construction: Recessed or flush bezel styles, custom engraving available
Buy the Acme Q14F5CXXHG220E – Reliable LED Indicators for Industrial Applications
Enhance your industrial control solutions with these high-brightness, waterproof LED indicators. Featuring multiple mounting options, various colors including RGB and bi-color, and IP67 sealing, these indicators are built for durability and visibility in harsh environments. Easy to install with diverse termination options like solder lug, faston, pins, or wire, they provide long-lasting performance up to 100,000 hours. Perfect for control panels, machinery, and automation systems, ensuring reliable signaling in demanding industrial settings.
Buy Acme Q14F5CXXHG220E now and experience unmatched reliability and performance in your industrial control panels and machinery.
Frequently Asked Questions
Where can I buy Apem Q14F5CXXHG220E?
You can click on the BUY or RFQ button to purchase Q14F5CXXHG220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5CXXHG220E?
You can download the Q14F5CXXHG220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5CXXHG220E?
Apem
