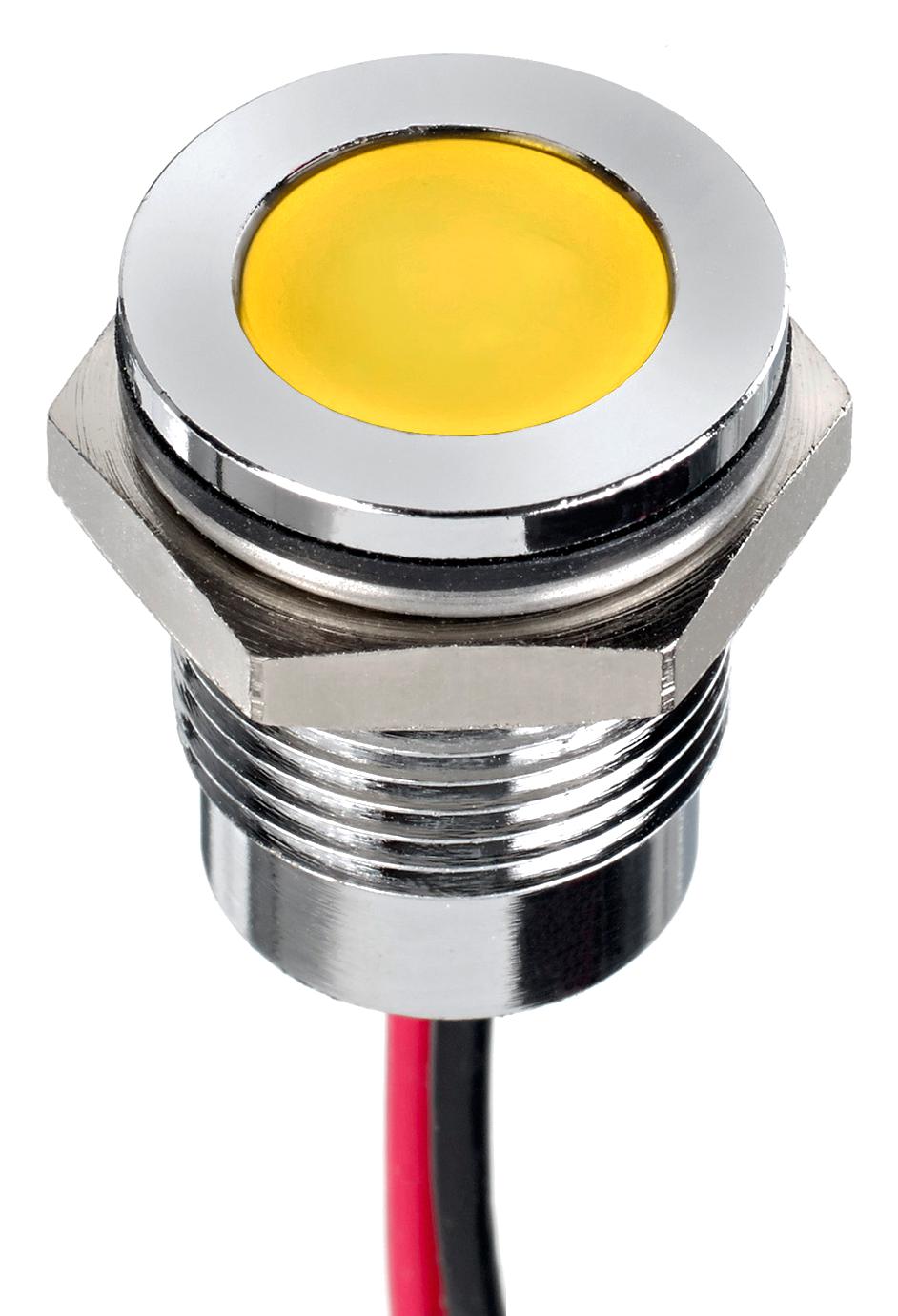

Apem Q14F5CXXHY12E LED Indicator
The Q14 series panel mount LED indicators are designed for easy installation with distinctive bezel styles including prominent and recessed options. Featuring 10 mm diffused epoxy lenses or water clear LEDs, these indicators are available in various colors such as red, green, yellow, blue, white, and RGB, with options for faston terminals, solder lugs, or wire terminations up to 200 mm. They offer high brightness, long life expectancy of 100,000 hours, IP67 sealing for environmental protection, and operate within temperature ranges from -40°C to +85°C depending on the body type. Ideal for industrial and electronic control applications, these LEDs are built for durability and visibility.
Apem Q14F5CXXHY12E LED Indicator Specifications:
- Lens size: 10 mm diffused epoxy or water clear
- Bezel finishes: Bright chrome, black, satin grey
- Maximum panel thickness: 11 mm
- Sealing: IP67 option available (EN60529)
- Operating temperature: -30°C to +65°C rear plastic body, -40°C to +85°C epoxy body
- LED life expectancy: 100,000 hours
- Mounting hole: 14 mm diameter M14x1.0 thread
- Viewing angle: 30-100° (dependent on model)
- Max reverse voltage: 5 V
- Electrical specifications: 10-60 VDC, 110-220 VAC options with resistor or terminal variations
- Materials: Plated brass bezel, polycarbonate rear body, epoxy encapsulation
- Terminal options: Solder lug, faston, wires, pins
- Luminous intensity: Ranges from 400 med to 1000 med depending on brightness level
- Color options: Red, Green, Yellow, Blue, White, RGB, Orange
- Power consumption varies by color and brightness, with standard operating currents around 20 mA
Buy the Buy APEM Q14F5CXXHY12E Panel Mount LED Indicator Part Number Q14F5CXXHY12E Online
Purchase the APEM LED indicator Q14F5CXXHY12E online today for exceptional brightness, durability, IP67 environmental sealing, and flexible terminal options. This 10 mm panel mount LED offers high visibility in industrial settings, with a long operational life of 100,000 hours and operation across wide temperature ranges. Its robust construction, including a plated brass bezel and polycarbonate body, ensures longevity even in harsh conditions. Whether for signaling or indicator needs, this LED component combines reliable performance with easy installation, making it a smart choice for control panels and industrial equipment.
Get APEM Q14F5CXXHY12E today—built for high brightness, long-lasting durability, and reliable industrial visibility.
Frequently Asked Questions
Where can I buy Apem Q14F5CXXHY12E?
You can click on the BUY or RFQ button to purchase Q14F5CXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5CXXHY12E?
You can download the Q14F5CXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5CXXHY12E?
Apem
