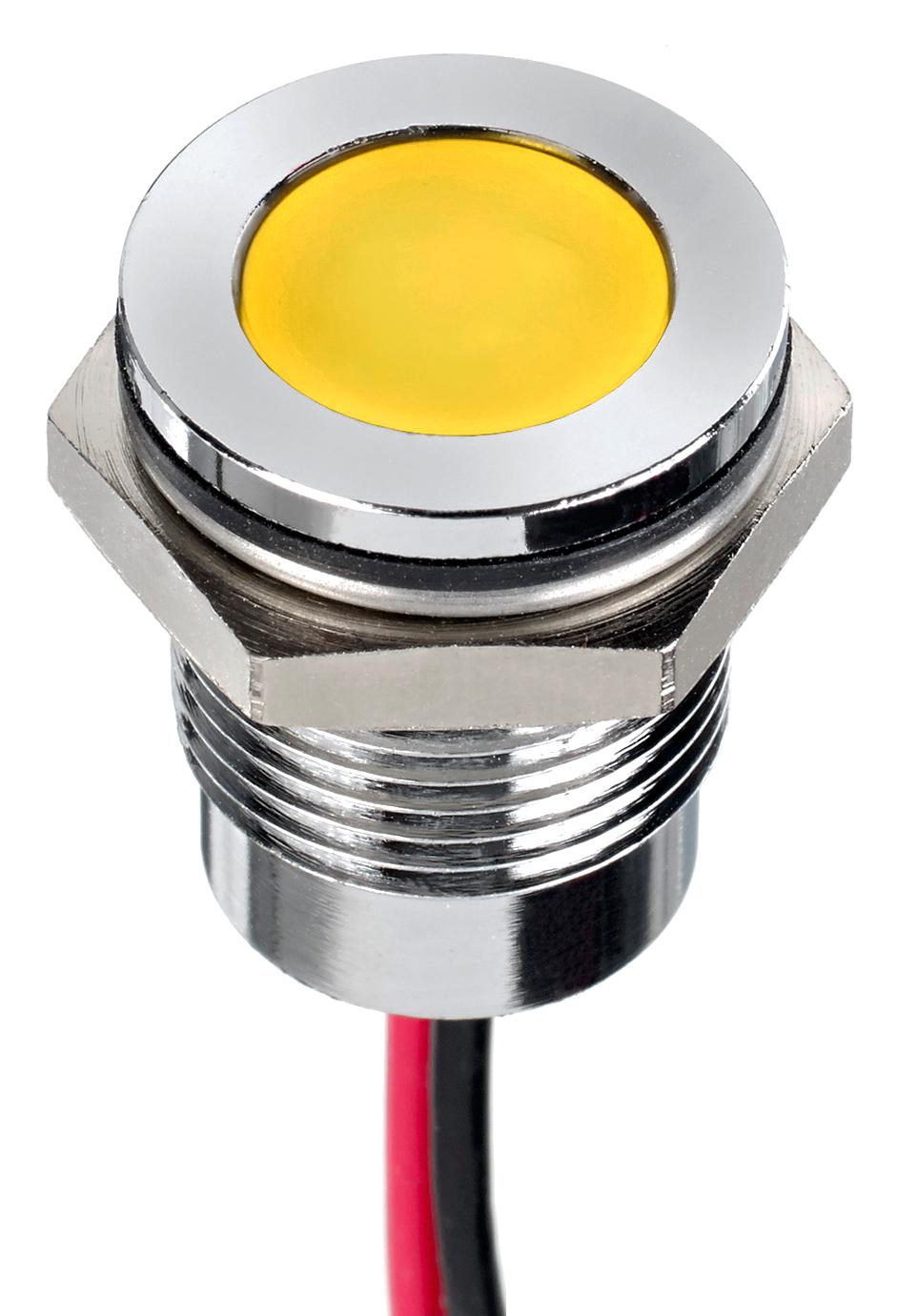

Apem Q14F5CXXHY24E LED Indicator
The Q14 series panel mount LED indicators are designed for professional applications requiring high brightness and durability. They feature 14 mm diffused epoxy lenses or water-clear lenses with prominent and flush bezel styles, offering custom engraving options. Available in multiple colors including RGB, they have IP67 sealing for environmental resistance. These indicators operate within temperature ranges from -40°C to +85°C depending on the body material. They support various mounting and termination options, ensuring reliable performance in industrial environments and easy installation.
Apem Q14F5CXXHY24E LED Indicator Specifications:
- Lens Size: 14 mm diffused epoxy or water-clear
- Bezel Material: Plated brass, bright chrome, black, satin grey
- Maximum Panel Thickness: 11 mm
- Sealing: IP67 (optional)
- Operating Temperature Range: -30°C to +65°C (plastic body), -40°C to +85°C (epoxy body)
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Torque: 75 cNm
- Max Mounting Hole Diameter: 14 mm
- Electrical Specifications: Various forward voltages depending on color, standard operating current 20 mA, operating voltage from 1.8 V to 33 VDC and AC options
- Material: Moulded polycarbonate rear body, plated brass bezel finished in bright chrome, black, satin grey
- Termination Options: Solder lug, Faston terminals, rear epoxy wires, pins with lengths up to 200 mm
- Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- Environmental & Mechanical: Water-resistant, sealed options, 30-100° viewing angles, mounting style recessed or flush
Buy the Buy Q14 series LED Indicators Part Number Q14F5CXXHY24E Online
Purchase the Q14 series LED indicator online today to enhance your industrial control panels with durable, high-brightness illumination. These panel mount indicators feature IP67 sealing for environmental resistance, multiple mounting and termination options, and vibrant color choices including RGB. Whether you need a recessed or flush style, these indicators are easy to install and offer reliable operation with a life expectancy of 100,000 hours. Order now to benefit from quick shipping and expert support, ensuring your project is powered by quality and performance.
Buy Q14 series LED indicators with high brightness and IP67 sealing now and experience unmatched durability and visibility in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q14F5CXXHY24E?
You can click on the BUY or RFQ button to purchase Q14F5CXXHY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5CXXHY24E?
You can download the Q14F5CXXHY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5CXXHY24E?
Apem
