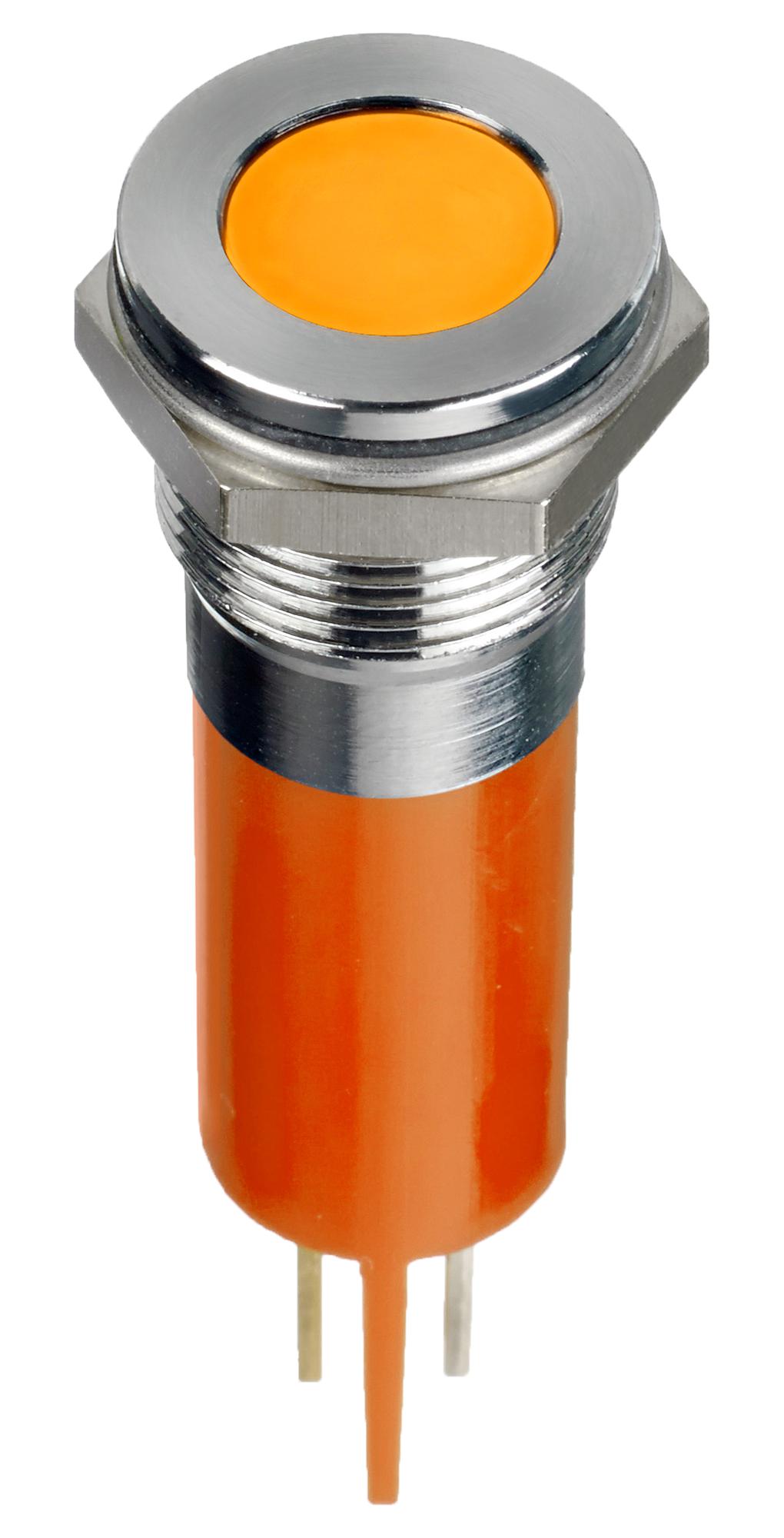

Apem Q12F1CXXHO24E LED Indicator
The Q12 series LED indicators are 12 mm panel-mount units available in various colors and illumination options, including super bright and hyper bright LEDs. They feature diffused epoxy lenses, water-clear lenses, and multiple mounting options such as solder lug, faston terminals, pins, or long wires. Suitable for environments with sealing requirements up to IP67, they operate across a wide voltage range from 2VDC to 220VAC. Made with plated brass bezels and molded polycarbonate bodies, these indicators offer high durability and long-lasting performance in industrial and control panel applications.
Apem Q12F1CXXHO24E LED Indicator Specifications:
- Lens Diameter: 12 mm
- Sealing: IP67 sealing option available
- Operating Temperature Range: -30°C to +85°C depending on body type
- Reverse Voltage: Max 5 V
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Materials: Plated brass bezel, molded polycarbonate body
- Max Panel Thickness: 7 mm
- Terminals: Solder lug, faston, pins, or 200 mm wire
- Voltage Range: 2VDC to 220VAC
- LED Intensity: Standard, super bright, hyper bright options
- LED Colors: Red, green, yellow, blue, white, orange, bi-color, tri-color
- Operating Current: Typically 20 mA at specified voltages
- Soldering Temperature: 300°C for 3 seconds
- Mounting Hole: 12 mm
- Termination: Solder lug, faston, pins or wires
- Certification: Suitable for industrial use with IP67 sealing available
Buy the Buy Q12 Series LED Indicator Part Number Q12F1CXXHO24E Online
Purchase the Q12 series LED indicator online today and equip your control panels with highly reliable, ultra-bright LEDs in various colors and mounting options. Designed to withstand harsh environments with IP67 sealing, these indicators provide long life and excellent visibility. With multiple LED brightness levels—standard, super bright, and hyper bright—they ensure clear signaling in industrial automation, control systems, and machinery applications. Easy to install with solder lug, faston terminals, pins, or long wires, they are perfect for professional and industrial use.
Get Q12 series LED indicator with sealed IP67 design and super bright LEDs today—built for durability and high visibility in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q12F1CXXHO24E?
You can click on the BUY or RFQ button to purchase Q12F1CXXHO24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1CXXHO24E?
You can download the Q12F1CXXHO24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1CXXHO24E?
Apem
