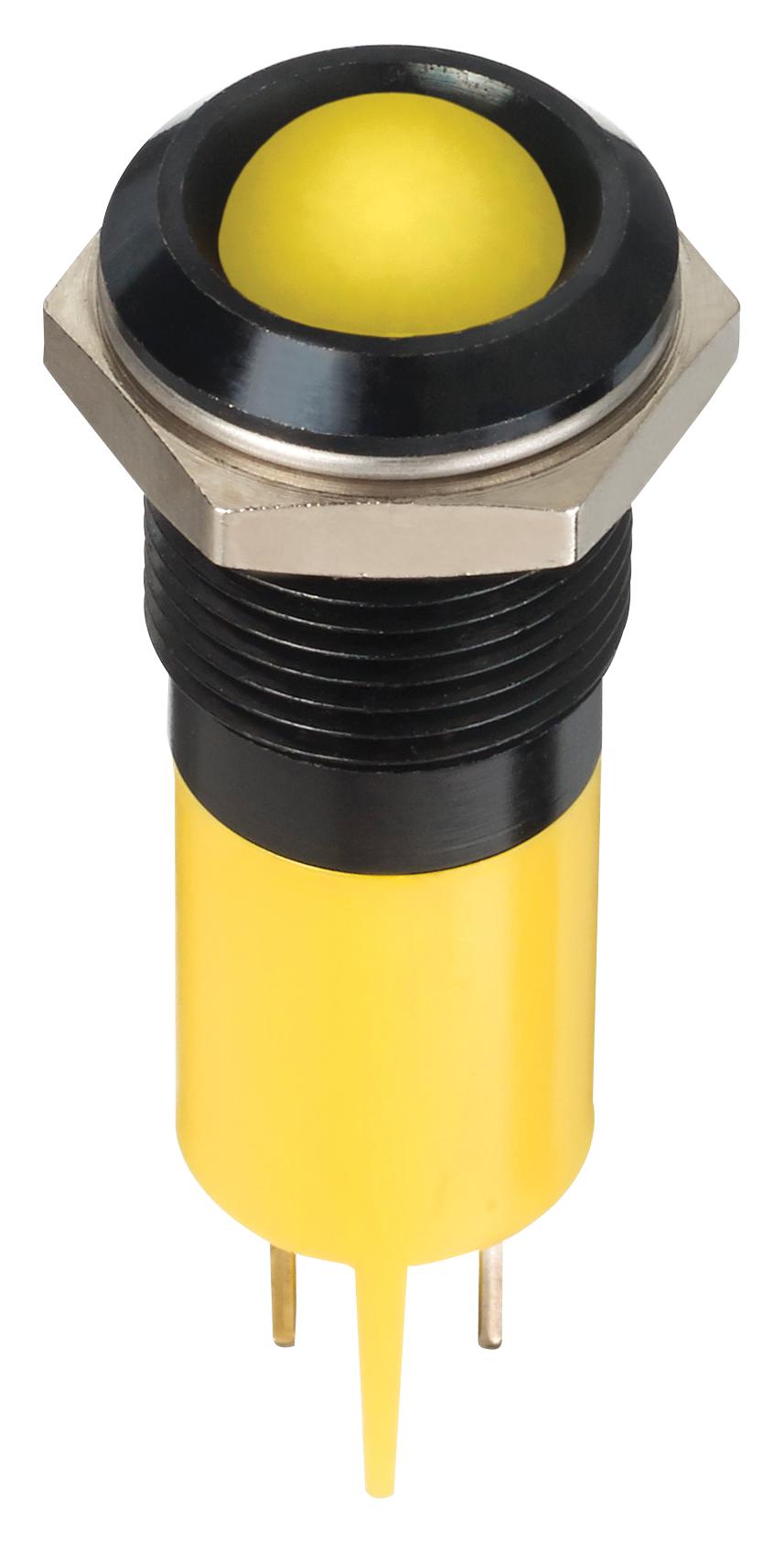

Apem Q14P1BXXHY220E LED Indicator
The Q14P1BXXHY220E is a 14mm panel mount LED indicator featuring a prominent flush bezel and high brightness LEDs. Designed for professional applications, it offers a wide voltage range from 2VDC to 220VAC, with options for different colors including red, green, yellow, blue, white, and orange. The indicator is sealed to IP67 standards, making it suitable for harsh environments. It includes customizable engraving, various termination options such as solder lug, pins, or wires, and is built for long life with an expected lifespan of 100,000 hours.
Apem Q14P1BXXHY220E LED Indicator Specifications:
- Lamp Diameter: 14mm (.551 inch)
- Bezel: Prominent flush style, bright chrome finish
- Lens: 10mm diffused epoxy or water clear LED options
- Voltage Range: 2VDC to 220VAC
- Operating Current: 20mA max at rated voltage
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°, depend on model
- Temperature Range: -40°C to +85°C
- Lifespan: 100,000 hours
- Sealing: IP67 (optional)
- Termination: Solder lug, pins, wires (200mm length)
- Lens Color Options: Red, green, yellow, blue, white, orange
- Brightness: Bright, with options for hyper and super brightness
- Max panel thickness: 11mm
- Certifications: UL Recognized
Buy the Buy APEM Q14P1BXXHY220E Part Number Q14P1BXXHY220E Online
Order the high-quality LED indicator online today. With a 14mm diameter, IP67 sealing, multiple color options, and a wide voltage range, this indicator is ideal for industrial control panels and harsh environments. It features customizable engraving and various termination options like solder lug, pins, or wires with 200mm length for easy installation. Designed for durability and long lifespan of 100,000 hours, it ensures bright visibility and reliable performance, making it a perfect choice for professional applications.
Get APEM Q14P1BXXHY220E today—built for high brightness illumination and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem Q14P1BXXHY220E?
You can click on the BUY or RFQ button to purchase Q14P1BXXHY220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1BXXHY220E?
You can download the Q14P1BXXHY220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1BXXHY220E?
Apem
