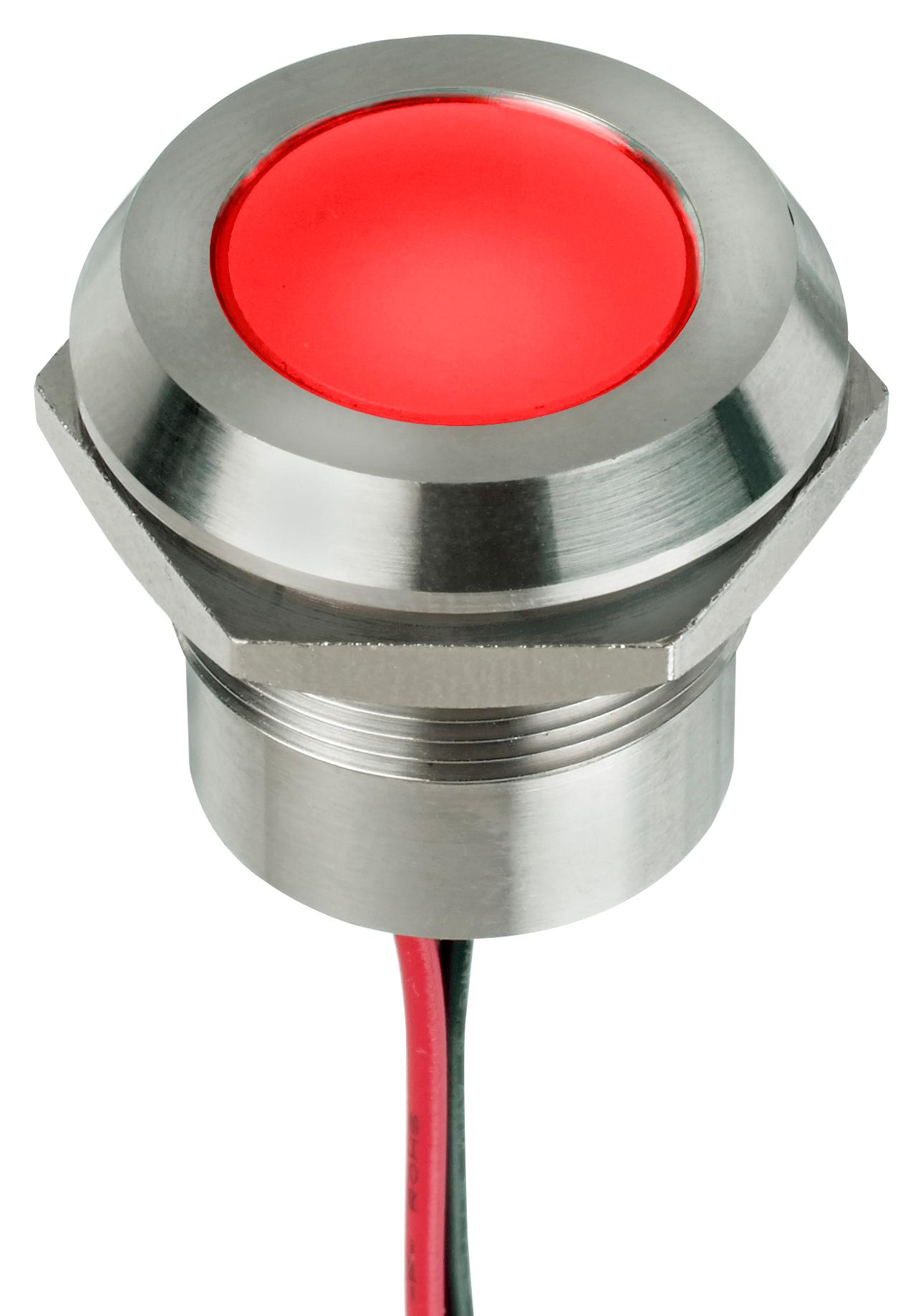

Apem Q22Y5SXXSR24E LED Indicator
The Q22 series are 22 mm panel mount LED indicators designed for easy integration into control panels. They feature 16.75 mm diffused epoxy lenses or super bright LEDs, available in RGB, with optional secret until lit polycarbonate decals or custom engraving. These indicators have a maximum panel thickness of 12 mm, are sealed to IP67, and have a life expectancy of 100,000 hours. They offer various mounting options, terminal types, and illumination colors suitable for multiple industrial signaling applications, ensuring durability and high visibility in demanding environments.
Apem Q22Y5SXXSR24E LED Indicator Specifications:
- Diameter: 22 mm
- Lens Options: 16.75 mm diffused epoxy or super bright LED
- Illumination Colors: Red, Green, Yellow, Blue, White, RGB, Bi-color, Tri-color
- Voltage Range: 3.3 VDC to 235 VAC/DC depending on model
- Operating Temperature: -40 °C to +85 °C (epoxy body), -30 °C to +65 °C (plastic rear body)
- Sealing IP67 (optional)
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100° (model dependent)
- Panel Thickness: up to 12 mm (prominent), 10 mm (flush)
- Materials: plated brass bezel, molded polycarbonate or ABS rear body
- Mounting Hole: 22 mm
- Max Reverse Voltage: 5 V
- Connections: solder lug, faston terminals, pins, or 200 mm wires
- Bezel Finish: Bright chrome, black, satin grey, anodized options
- Electrical Power: 3.3V-28V DC, 110V-220V AC
- Other features: secret until lit decals, customizable legends, various mounting options, and high durability suitable for difficult environments
Buy the APEM Series Q22 LED Indicators: Q22Y5SXXSR24E
Purchase the APEM Series Q22 LED indicator online today to ensure reliable signaling in your industrial control systems. With durable construction, IP67 sealing, and bright illumination options, this indicator is designed to withstand demanding environments. It offers flexible mounting, various color and illumination choices, and customization capabilities such as secret until lit decals and engraving. Optimized for quick installation and long-term performance, buying online guarantees quick delivery and professional support for your installation and maintenance needs.
Buy APEM Q22Y5SXXSR24E now and experience unmatched durability, high visibility, and versatile customization for industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q22Y5SXXSR24E?
You can click on the BUY or RFQ button to purchase Q22Y5SXXSR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SXXSR24E?
You can download the Q22Y5SXXSR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SXXSR24E?
Apem
