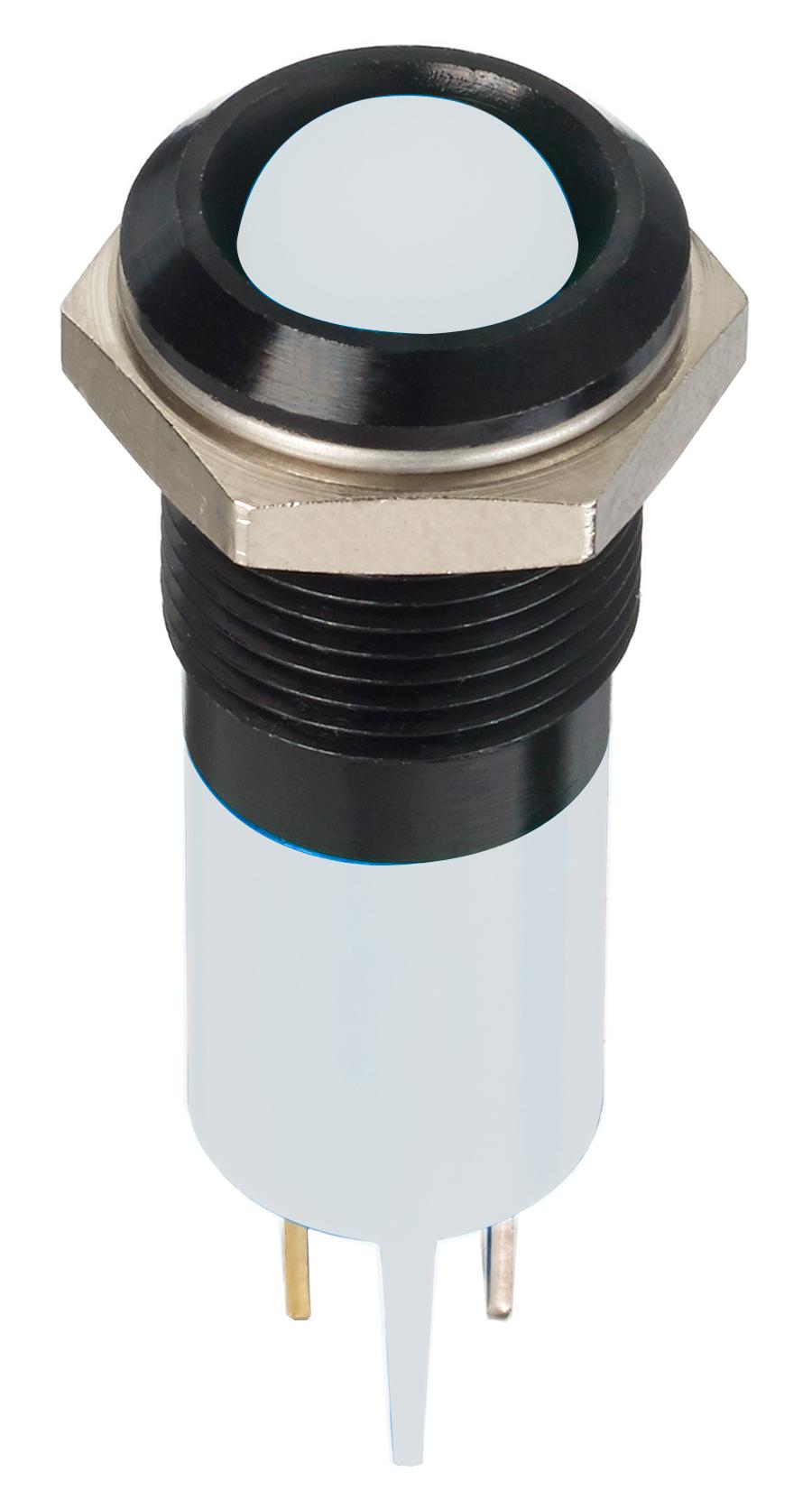

Apem Q14P1BXXW02E LED Indicator
The Q14 series are 14 mm panel mount LED indicators designed for various applications. They feature a distinctive bezel with options such as prominent, recessed, or flush styles, and are available with water-clear or diffused epoxy lenses in multiple colors, including RGB. These indicators have high brightness LEDs with long life expectancy of 100,000 hours and sealed IP67 options for harsh environments. They are supplied with different mounting styles, terminal options, and custom engraving, suitable for industrial, automotive, or electronic control systems, offering reliable visual indication with excellent durability and visibility.
Apem Q14P1BXXW02E LED Indicator Specifications:
- Lens Diameter: 14 mm
- Lens Type: Diffused or Water Clear
- LED Brightness: Standard, Super Bright, Hyper Bright, RGB
- Operating Voltage Range: 1.8 to 33 VDC, 6 to 28 VDC, 110/220 VAC
- Life Expectancy: 100,000 hours
- Viewing Angle: 30° to 100°
- Panel Thickness: Max 11 mm
- Sealing: IP67 (optional)
- Temperature Range: -40 °C to +85 °C
- Material: Plated brass bezel, molded polycarbonate rear body
- Bezel Finish: Bright Chrome, Black, Satin Grey
- Mounting Hole: M14x1.0
- Terminal Options: Solder lug, Faston, wires, pins
- Electrical: Max Reverse Voltage 5 V, Operating Currents from 3mA to 20mA
- Environmental Resistance: Sealed, shockproof, vibration resistant
Buy the Buy Build Your Part Series Q14 LED Indicator Part Number Q14P1BXXW02E Online
Order the Build Your Part series LED indicator, model Q14P1BXXW02E, online today. These high-brightness, 14 mm panel mount indicators are ideal for industrial, automotive, and electronic control systems. Featuring multiple illumination colors including RGB, diffused or water-clear lenses, IP67 sealing, customizable engraving, and various mounting options, they provide long-lasting, robust visual signaling in challenging environments. Benefit from fast delivery, comprehensive support, and a trusted supplier to enhance your equipment’s performance and safety.
Buy Build Your Part Q14 series LED indicator now and experience unmatched reliability and performance for industrial and control applications.
Frequently Asked Questions
Where can I buy Apem Q14P1BXXW02E?
You can click on the BUY or RFQ button to purchase Q14P1BXXW02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1BXXW02E?
You can download the Q14P1BXXW02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1BXXW02E?
Apem
