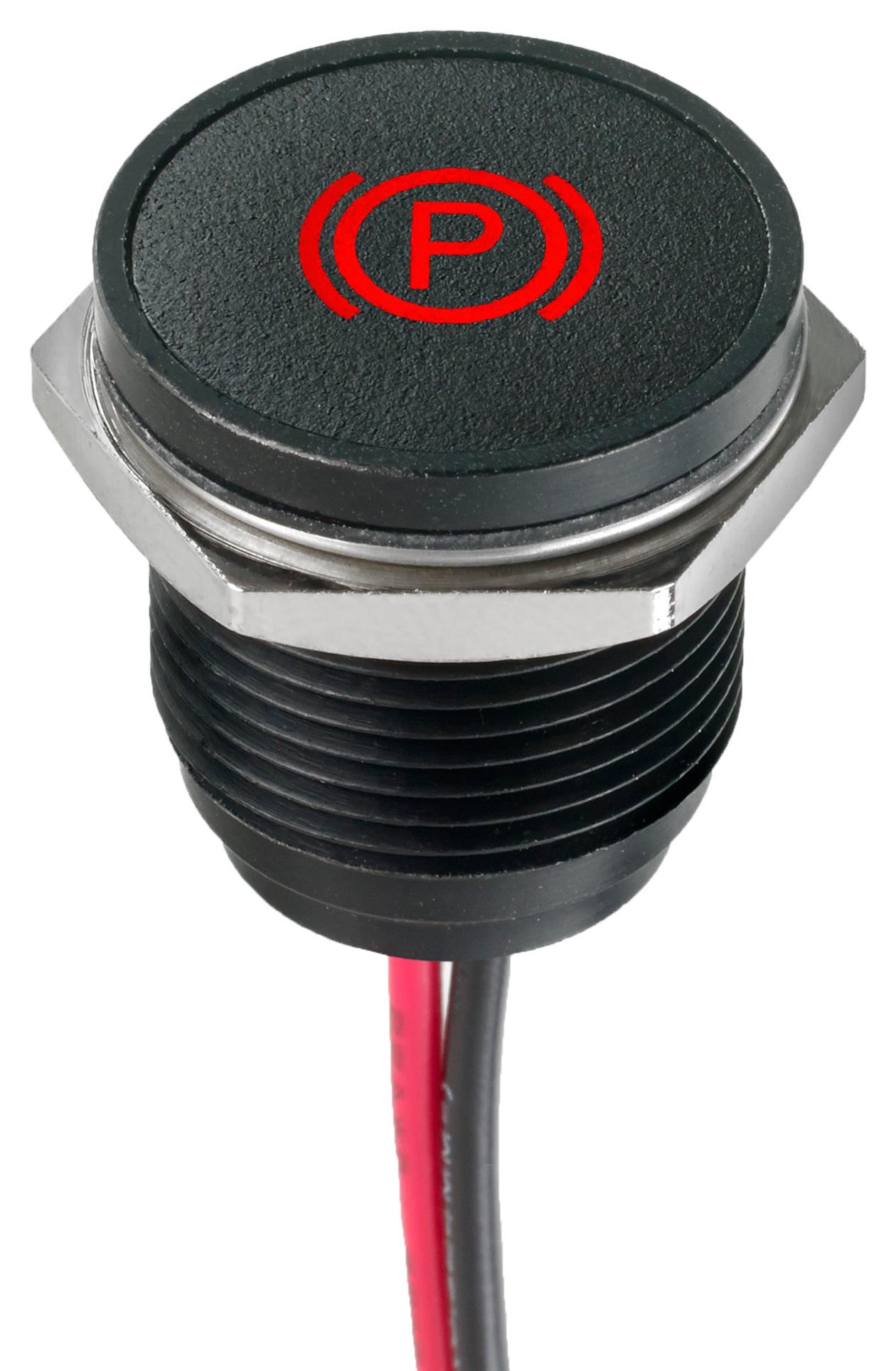

Apem Q16F5BXXHR12E3PB Panel Mount LED Indicator
The Q16 series panel mount LED indicators feature 16 mm diameter, high-brightness and super-bright LED options, with various colors including RGB and bi-color variants. Designed for industrial applications, these indicators offer environmental sealing up to IP67, multiple mounting styles, and operating temperature ranges from -40°C to +85°C. They include flush or recessed bezels, with solder lug, faston terminals, or wires for connection. Capable of long-lasting operation up to 100,000 hours, they are suitable for signaling and status indication in demanding environments.
Apem Q16F5BXXHR12E3PB Panel Mount LED Indicator Specifications:
- Diameter: 16 mm
- Bezel Material: Plated brass finished in bright chrome, black, or satin grey
- Body Material: Moulded polycarbonate
- Environmental Sealing: IP67 (optional)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Maximum Panel Thickness: 11 mm
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Electrical Connection: Solder lug, faston terminals, pins or wires
- Color Options: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- LED Forward Voltage: Ranges from 2V to 3.3V depending on color and brightness level
- LED Intensity: Standard, Super Bright, Hyper Bright options available
- Sealing: Up to IP67 for environmental protection
- Voltage Range: 6VDC to 220VAC/DC, various operating currents depending on voltage
- Durability: Long-lasting, suitable for demanding environments
Buy the APEM Series Q16 LED Indicator: Q16F5BXXHR12E3PB
Order the APEM Q16 series LED indicator online today to enhance your industrial equipment’s signaling system. Features include high-brightness LEDs, IP67 environmental sealing, durable construction, multiple mounting options, and long operational life up to 100,000 hours. Available in a variety of colors like red, green, yellow, blue, white, and orange, plus RGB, bi-color, and tri-color configurations for versatile applications. Standard and custom wiring solutions ensure quick installation. Trust APEM's quality for precise, reliable indication in demanding conditions.
Get APEM Q16F5BXXHR12E3PB today—ideal for industrial signaling with high brightness and IP67 sealing for reliable long-term operation.
Frequently Asked Questions
Where can I buy Apem Q16F5BXXHR12E3PB?
You can click on the BUY or RFQ button to purchase Q16F5BXXHR12E3PB from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16F5BXXHR12E3PB?
You can download the Q16F5BXXHR12E3PB datasheet or visit the Apem website for support.
Who is the manufacturer of Q16F5BXXHR12E3PB?
Apem
