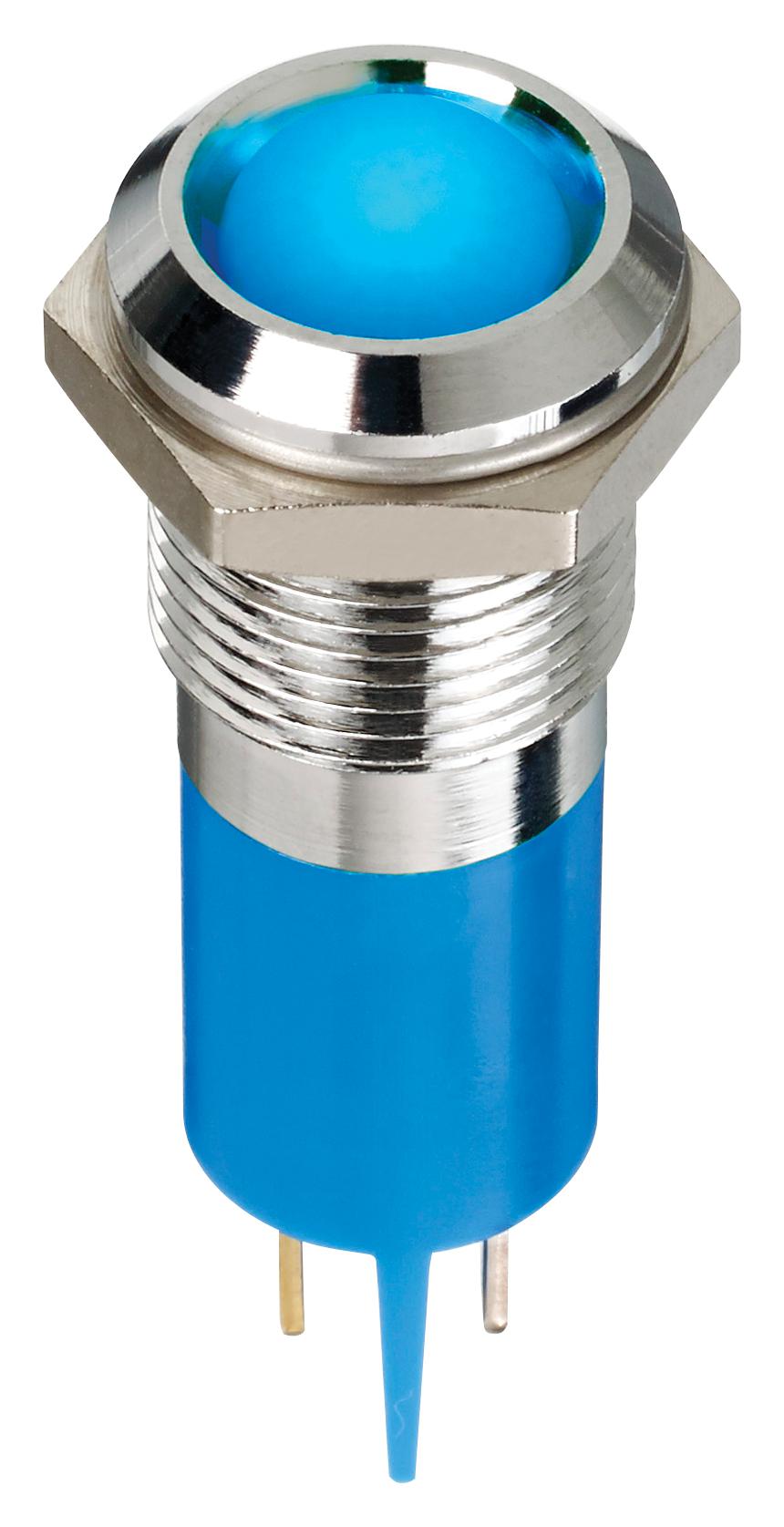

Apem Q14P1CXXB24 Panel Mount LED Indicator
The Q14 series panel mount LED indicators offer 14mm diameter, bright and diffused epoxy lens options, with features including flush bezel styles, IP67 sealing, and various color LEDs suitable for 2VDC to 220VAC applications. They feature plated brass bezels with chrome finishes, molded polycarbonate bodies, and various terminal options such as solder lug, pins, or wire terminations. These LEDs are UL Recognized, designed for durability with a life expectancy of 100,000 hours, and operate effectively within temperatures from -40°C to +85°C, making them ideal for industrial and control panel applications.
Apem Q14P1CXXB24 Panel Mount LED Indicator Specifications:
- Diameter: 14mm (.551 inches)
- Lens: 10mm diffused epoxy or water clear LED
- Bezel Material: Plated brass with chrome, black chrome, or satin grey finish
- Body Material: Molded polycarbonate
- Operating Voltage: 2VDC to 220VAC with various specific voltage ranges
- Current: 20mA maximum at specified voltages
- Luminous Intensity: Varies by LED color and brightness, up to 17,000 mcd for bright LEDs
- Viewing Angle: 30-100° depending on model
- Sealing: IP67 option available
- Max Reverse Voltage: 5V
- Temperature Range: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Mounting: Panel cutout size 14mm, prominent or flush bezel styles
- Terminals: Solder lug, Faston, pins, or 200mm wire terminations
- UL Recognized Component
Buy the Buy APEM Q SERIES Panel Mount LED Indicator Part Number Q14P1CXXB24 Online
Enhance your control systems with the durable and bright 14mm panel mount LED indicator from APEM. Featuring high-quality construction, IP67 sealing, and versatile terminal options, it is ideal for industrial applications. Available in multiple colors and voltages, this indicator ensures reliable operation with a life expectancy of 100,000 hours. Easy to install with standard panel cutout, it provides excellent visibility and robust sealing. Purchase online today to upgrade your control panels with a high-performance, long-lasting LED indicator that meets industry standards.
Order your APEM Series Q14P1CXXB24 LED indicator today and enhance your control panels with reliable, bright, and durable lighting solutions.
Frequently Asked Questions
Where can I buy Apem Q14P1CXXB24?
You can click on the BUY or RFQ button to purchase Q14P1CXXB24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1CXXB24?
You can download the Q14P1CXXB24 datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1CXXB24?
Apem
