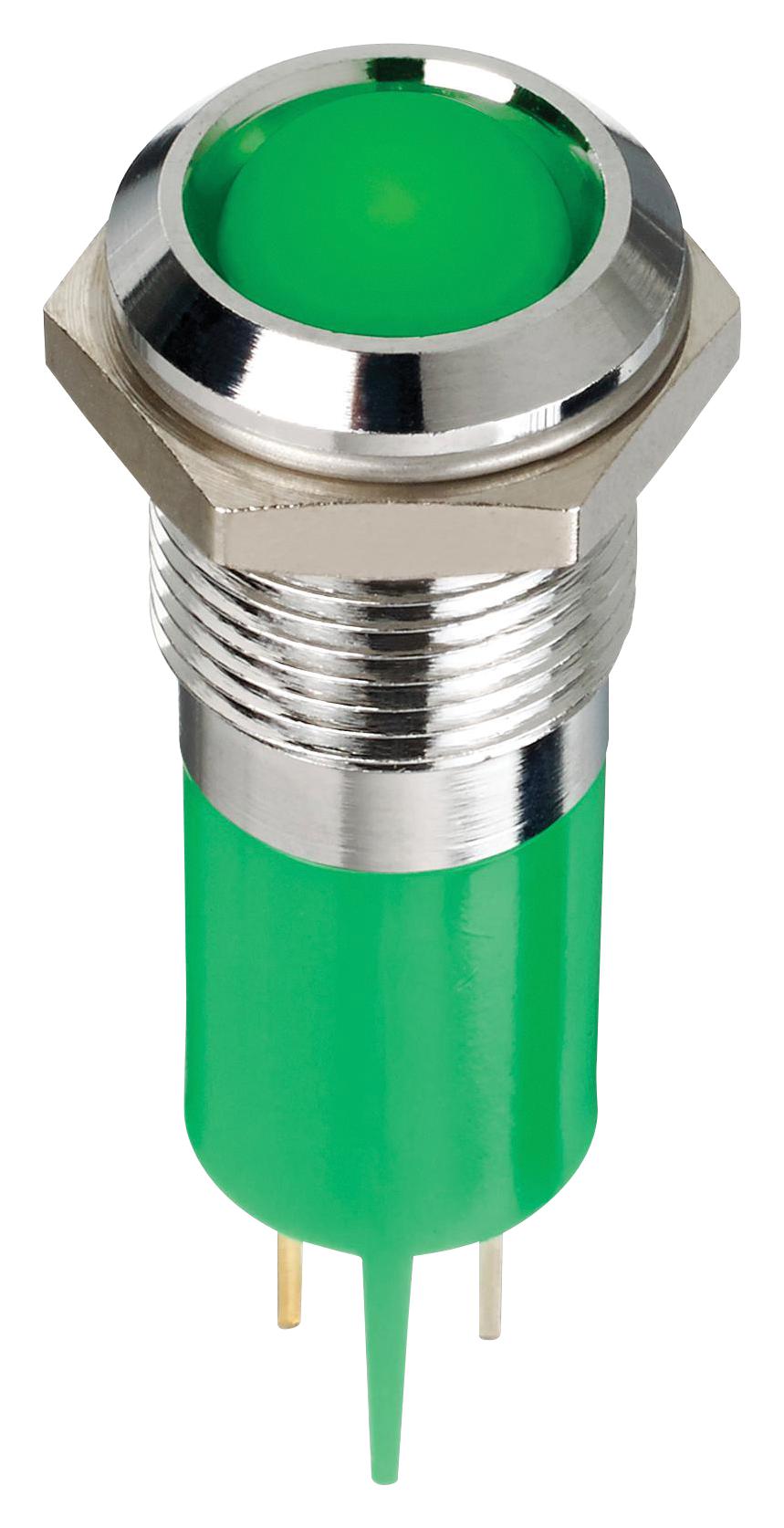

Apem Q14P1CXXG12 LED Indicator
The Q14P1CXXG12 is a high-quality 14mm panel mount LED indicator designed for various industrial and electrical applications. Featuring a bright chrome-plated brass bezel and a molded polycarbonate rear body, it supports voltages from 10.8 to 13.2V DC and a typical current of 20mA. Equipped with a 10mm diffused epoxy lens or super bright LEDs, it offers excellent visibility with viewing angles from 30° to 100°. The device has solder lug or faston terminals, a lifespan of about 100,000 hours, and operates in temperatures between -40°C to +85°C, making it reliable and durable in demanding environments.
Apem Q14P1CXXG12 LED Indicator Specifications:
- Bezel Material: Plated brass finished in bright chrome
- Rear Body Material: Molded polycarbonate
- Lens Type: 10 mm diffused epoxy or super bright LEDs
- Operating Voltage Range: 10.8 to 13.2 V DC
- Operating Current: 20 mA (typical)
- Viewing Angle: 30° to 100°
- Luminous Intensity: 40 mcd (standard, varies with model and LED type)
- Lifespan: Approximately 100,000 hours
- Maximum Reverse Voltage: 5 V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Mounting: 14 mm panel hole, with fixing nut and spring washer
- Terminals: Solder lug or faston (2.8 x 0.8 mm)
- Seal Type: Optional IP67 sealing available
- Max Panel Thickness: 11 mm
Buy the Buy APEM Q14P1CXXG12 Part Number Q14P1CXXG12 Online
Purchase the APEM Q14P1CXXG12 LED indicator online today to enhance your process control, electrical, or instrumentation systems. It features a robust chrome-plated brass bezel, a molded polycarbonate body, and supports operating voltages from 10.8 to 13.2V DC at 20mA. With a lifespan of 100,000 hours, it’s designed for reliability and durability. Its optional IP67 sealing makes it suitable for harsh environments, while the 10 mm lens provides excellent visibility at various viewing angles. Secure, versatile, and easy to install, order now for top performance and reliability.
Get APEM Q14P1CXXG12 today—built for precision, durability, and long-lasting illumination in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem Q14P1CXXG12?
You can click on the BUY or RFQ button to purchase Q14P1CXXG12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1CXXG12?
You can download the Q14P1CXXG12 datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1CXXG12?
Apem
