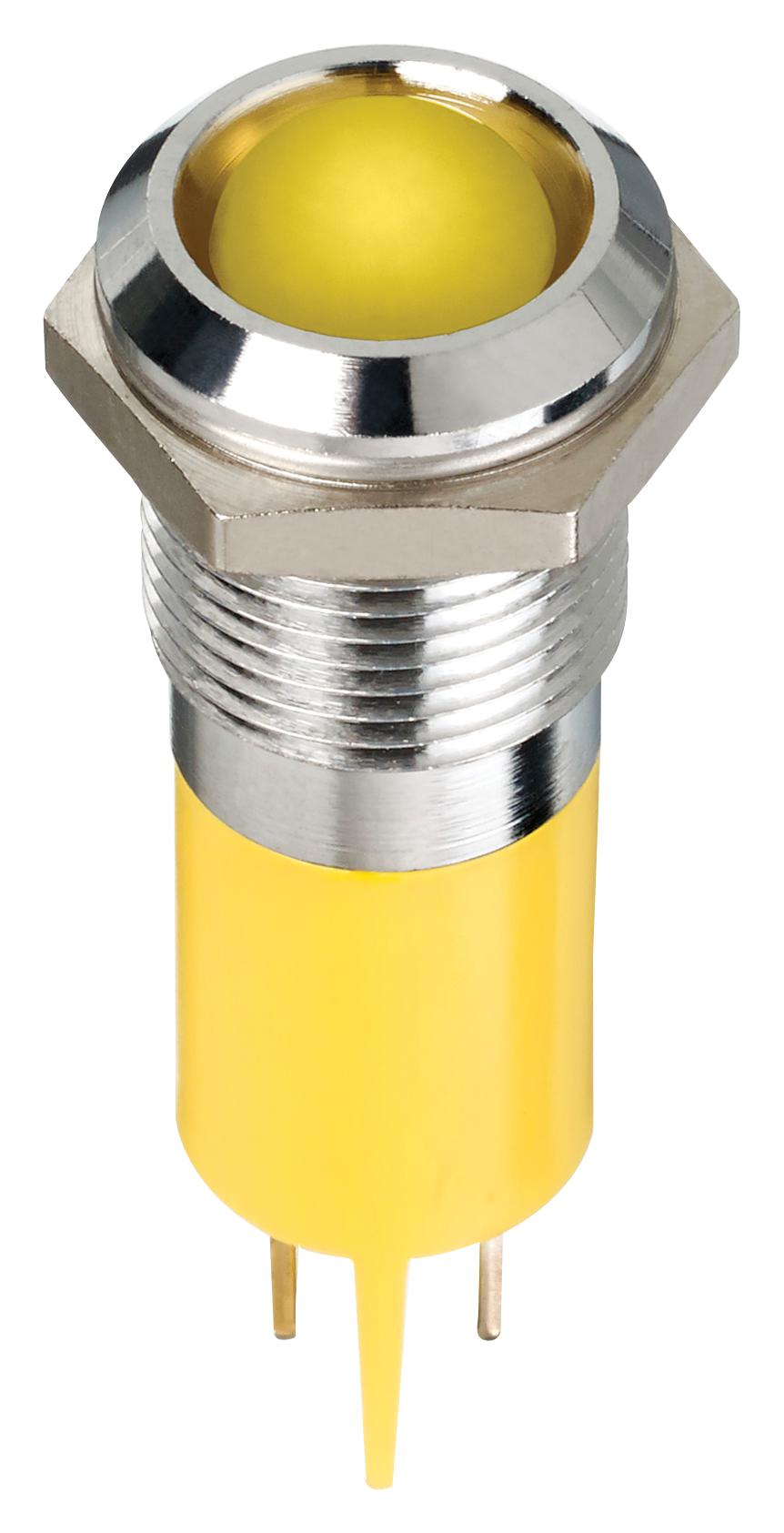

Apem Q14P1CXXHY220E LED Indicator
The Q Series 14mm panel mount LED indicators offer bright, reliable illumination with a 14mm prominent flush bezel. Featuring diffused epoxy lenses or super bright LEDs in various colors, they are designed for versatile industrial and control panel applications. These LEDs operate across a wide voltage range from 2VDC to 220VAC, with sealed IP67 options for harsh environments. With a lifespan of 100,000 hours and operating temperatures from -40°C to +85°C, they are suitable for prominent indicator signaling in demanding industrial settings, available with custom engravings for identification and branding.
Apem Q14P1CXXHY220E LED Indicator Specifications:
- Diameter: 14mm (0.551 inch)
- Bezel finish: Bright chrome, black chrome, satin grey
- Lens options: Diffused epoxy or super bright LEDs
- Operating Voltage: 2VDC to 220VAC, specific models for 2VDC, 6VDC, 12VDC, 24VDC, 28VDC, 110VAC, 220VAC, 24VAC, 24VDC, 28VDC
- Current: Max 20mA (for LED operation)
- Viewing angle: 30-100° (model-dependent)
- Reverse voltage: 5V max
- Life expectancy: 100,000 hours
- Temperature range: -40°C to +85°C
- Sealing: IP67 sealing option available
- Mounting: Panel cutout for 14mm diameter
- Terminals: Solder lug, faston, pins, wire terminations
- Standards: UL Recognized Component
- Additional features: Custom engraving, fixing nut, spring washer included
Buy the Buy APEM LED Indicator Part Number Q14P1CXXHY220E Online
Enhance your control panel's visibility with this premium 14mm LED indicator from APEM. Designed for durability and clear signaling, it features a bright, diffused epoxy lens or super bright LED in various colors. The versatile model supports wide voltage ranges from 2VDC to 220VAC, ensuring compatibility with different power sources. Its IP67 sealing makes it suitable for harsh environments. Easy to install with panel cutout, included mounting hardware, and optional custom engraving. Trust this indicator for reliable, long-lasting operation in industrial applications.
Get APEM Q14P1CXXHY220E today—built for precision and long-lasting durability in industrial signaling. Perfect for control panels with IP67 sealing and bright illumination.
Frequently Asked Questions
Where can I buy Apem Q14P1CXXHY220E?
You can click on the BUY or RFQ button to purchase Q14P1CXXHY220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1CXXHY220E?
You can download the Q14P1CXXHY220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1CXXHY220E?
Apem
