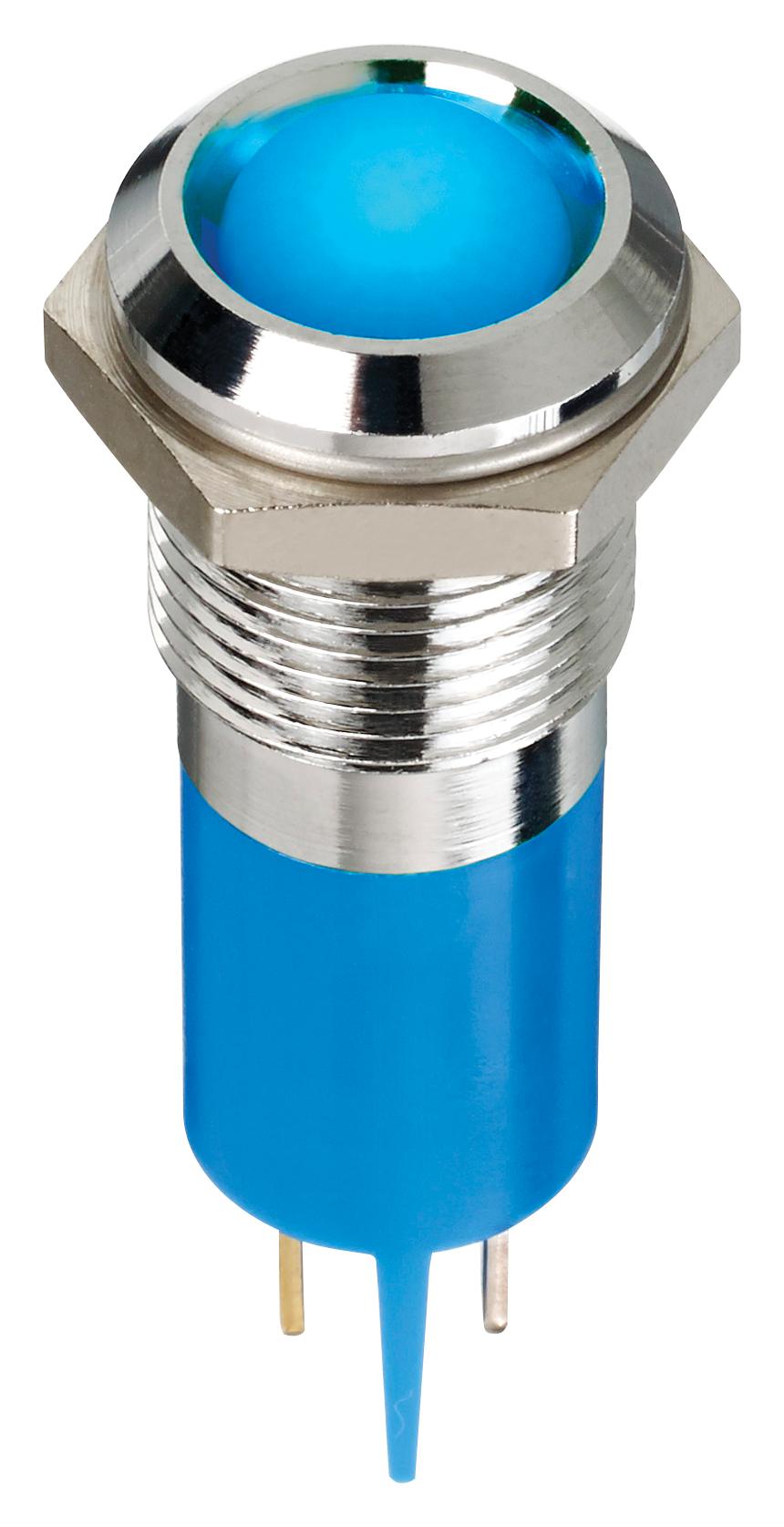

Apem Q14P1CXXSB12E LED Indicator
The Q Series panel mount LED indicators are 14mm diameter, distinguished by prominent flush bezels and high brightness LEDs suitable for industrial status indication. These LEDs feature a waterproof IP67 sealing option for harsh environments, with several color options including red, green, yellow, blue, white, and orange. They operate across a wide voltage range from 2VDC to 220VAC, with high durability up to 100,000 hours lifespan. Custom engravings and various termination options such as solder lug, wire, or faston terminals are available, making these indicators reliable for industrial applications and panel mounting setups.
Apem Q14P1CXXSB12E LED Indicator Specifications:
- Diameter: 14mm (0.551 inch)
- Lens Type: Colored diffused epoxy or water clear super bright LEDs
- Bezel Finish: Bright chrome, black chrome, satin grey
- Sealing: IP67 waterproof option
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Operating Voltage: 2VDC to 220VAC
- Operating Current: Max 20mA
- Lifespan: 100,000 hours
- Temperature Range: -40°C to +85°C
- Max Torque: 75 cNm
- Panel Cutout: Suitable for 14mm mounting
- Termination: Solder lug, faston, wire, or pins
- Max panel thickness: 11mm
- Certifications: UL Recognized, IP67 sealed option
Buy the APEM Q14P1CXXSB12E – Reliable LED Indicators for Industrial Applications
Enhance your industrial control panels with the reliable APEM LED Indicator. Featuring a 14mm diameter with prominent flush bezels, these IP67 sealed LEDs are suitable for harsh environments. Available in multiple colors including red, green, yellow, blue, white, and orange, they operate from 2VDC to 220VAC, ensuring versatility for various voltage needs. Designed for durability, with up to 100,000 hours lifespan, they come with customizable features such as engraving and multiple terminal options. Perfect for industrial signaling, machinery, and control panels, order now for fast, online delivery.
Order your APEM SeriesQ14P1CXXSB12E waterproof panel mount LED indicator today and ensure your industrial projects feature dependable visual signaling.
