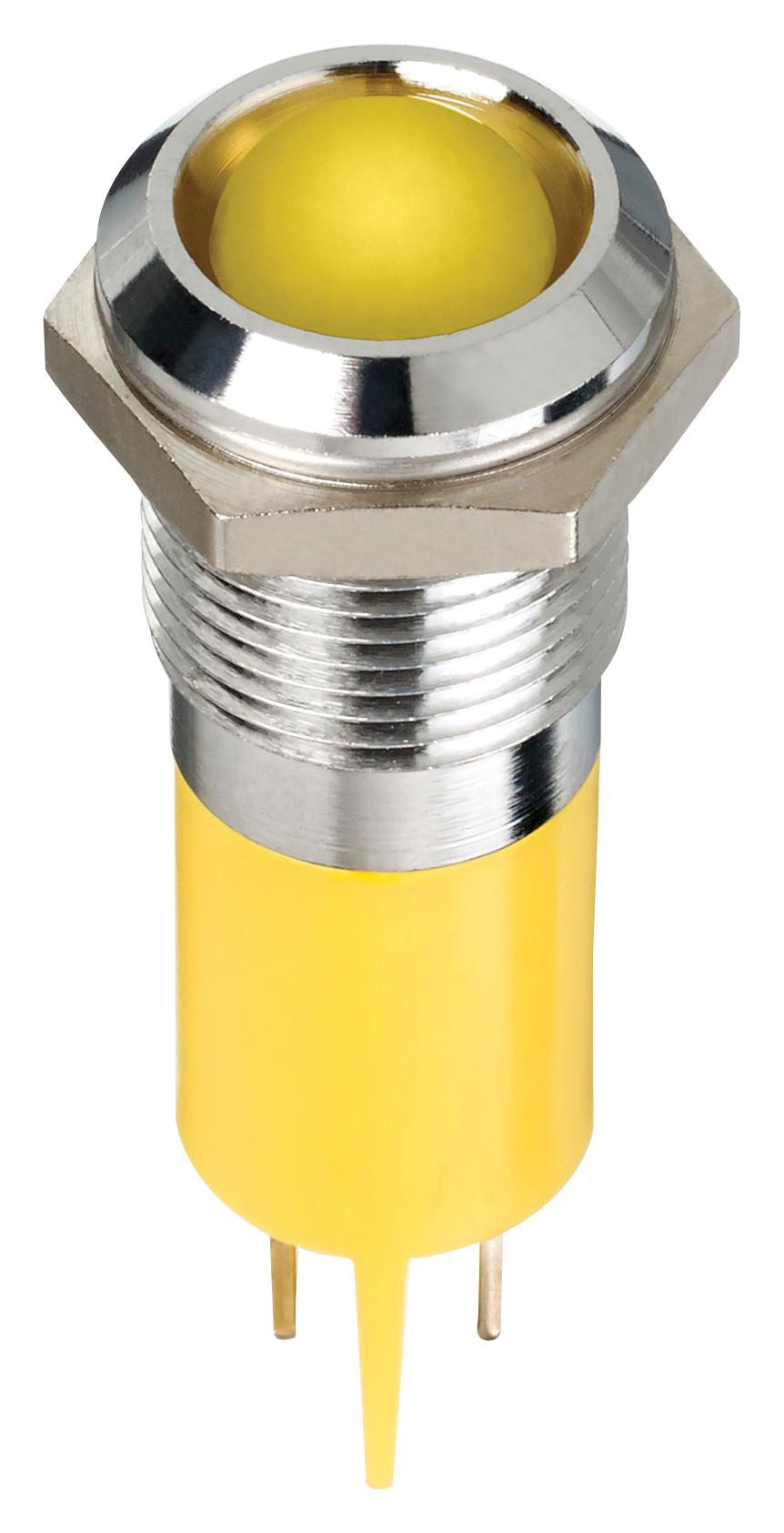

Apem Q14P1CXXY24 LED Indicator
The Q series 14mm panel mount LED indicators are durable, high-brightness lighting solutions suited for various industrial and electronic panel applications. Featuring prominent flush bezels, multiple color options including red, green, yellow, blue, white, and orange, and voltage ranges from 2VDC up to 220VAC. They offer IP67 sealing, custom engraving, and various terminations like solder lug, pins, and wires. Designed for long-lasting performance with a life expectancy of 100,000 hours and operating temperatures from -40°C to +85°C, these indicators ensure visibility in harsh environments.
Apem Q14P1CXXY24 LED Indicator Specifications:
- Panel Size: 14mm diameter
- Lens: Diffused epoxy, transparent high brightness LEDs
- Bezel Finish: Bright chrome, black chrome, satin grey
- Sealing: IP67 waterproof option available
- Voltage Range: 2VDC to 220VAC
- Operating Current: 20mA max (varies with voltage)
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100° depending on model
- Temperature Range: -40°C to +85°C
- Lifespan: 100,000 hours
- Temperature Rating: -40°C to +85°C
- Mounting: Panel cutout of 14mm, flush bezel
- Terminations: Solder lug, fastons, pins, or wires
- Ingress Protection: IP67 sealed option
- Panel Thickness: up to 11mm
- Certifications: UL Recognized Component
Buy the Buy APEM LED Indicator Part Number Q14P1CXXY24 Online
Discover the reliable and high-brightness LED indicator suitable for industrial panels. The Q series features 14mm diameter, IP67 waterproof sealing, various color options including red, green, yellow, blue, white, and orange, and voltage ranges from low to high AC/DC voltages. Designed for long lifespan with up to 100,000 hours of operation, these durable indicators provide excellent visibility and easy installation. Perfect for industrial controls, machinery, and safety indicators, they are customizable with engravings and available with different termination types for your specific needs.
Get APEM LED Indicator Q14P1CXXY24 today—built for high visibility, durability, and versatile panel mounting in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q14P1CXXY24?
You can click on the BUY or RFQ button to purchase Q14P1CXXY24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1CXXY24?
You can download the Q14P1CXXY24 datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1CXXY24?
Apem
