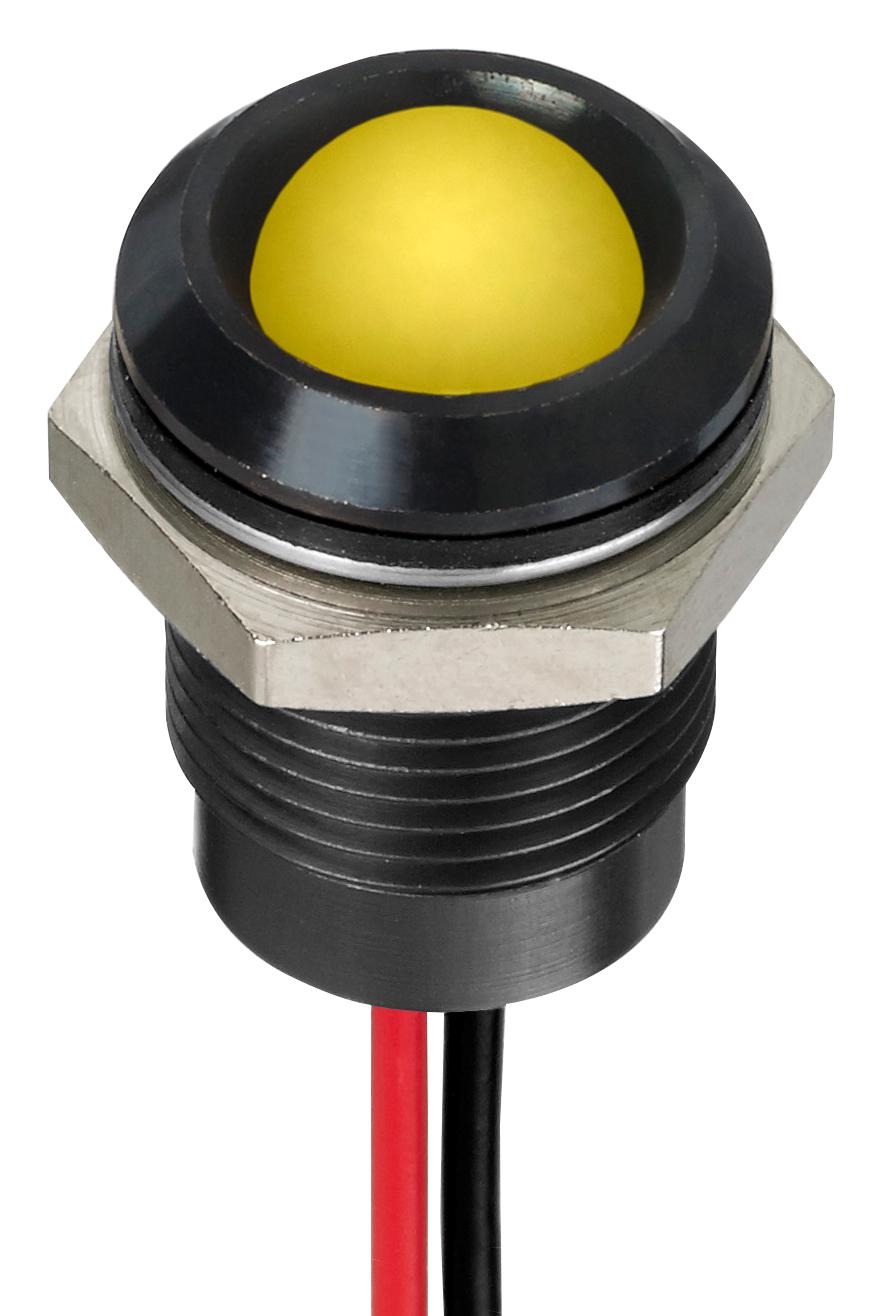

Apem Q14P5BXXHY24E LED Indicator
The Q14 series are 14 mm panel mount LED indicators designed for industrial applications. Featuring prominent, flush, or recessed bezels, they offer high brightness in various colors including RGB options. Constructed with durable materials like plated brass and polycarbonate, they are sealed to IP67 standards, making them suitable for harsh environments. These indicators operate at low voltages with long life expectancy of 100,000 hours, and are available with different terminal types, mounting styles, and sealing options, ensuring consistent visibility and reliability in industrial signaling systems.
Apem Q14P5BXXHY24E LED Indicator Specifications:
- Lens Size: 10 mm colored diffused epoxy or water clear
- Material: Plated brass bezel, polycarbonate rear body
- Sealing: IP67 sealed option available
- Operating Temperature Range: Rear plastic body -30 °C to +65 °C, Rear epoxy body -40 °C to +85 °C
- Max Panel Thickness: 11 mm
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Torque: 75 cNm
- Bezel Finish: Bright chrome, black, satin grey
- Mounting Hole: M14x1.0
- Electrical: Operating voltage from 1.8 V to 33 VDC, available with resistor options, operating current up to 20 mA
- LED Types: Standard, super bright, hyper bright, RGB, bi-color, tri-color
- Terminal Types: Solder lug, faston, pins, wires
- Colors Available: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- Environmental Ratings: IP67 for sealed versions, suitable for harsh environments
- Custom engravings available with standard white infill
Buy the Innovative 14 Series – Reliable LED Indicators for Industrial Applications
Discover the versatile LED indicator series perfect for industrial control panels and signaling systems. Easy to install with M14x1.0 mounting, these indicators feature various colors, brightness levels, and sealing options including IP67. Designed with durable materials like plated brass and polycarbonate, they provide long-lasting performance and reliable operation under harsh conditions. Choose from different terminal types such as solder lug or faston, and enjoy customization options like engraving. Get high visibility and superior durability for your industrial projects by ordering online today.
Order your APEM SeriesQ14 LED indicators today and enhance your industrial signaling systems with dependable, high-brightness illumination solutions.
Frequently Asked Questions
Where can I buy Apem Q14P5BXXHY24E?
You can click on the BUY or RFQ button to purchase Q14P5BXXHY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P5BXXHY24E?
You can download the Q14P5BXXHY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P5BXXHY24E?
Apem
