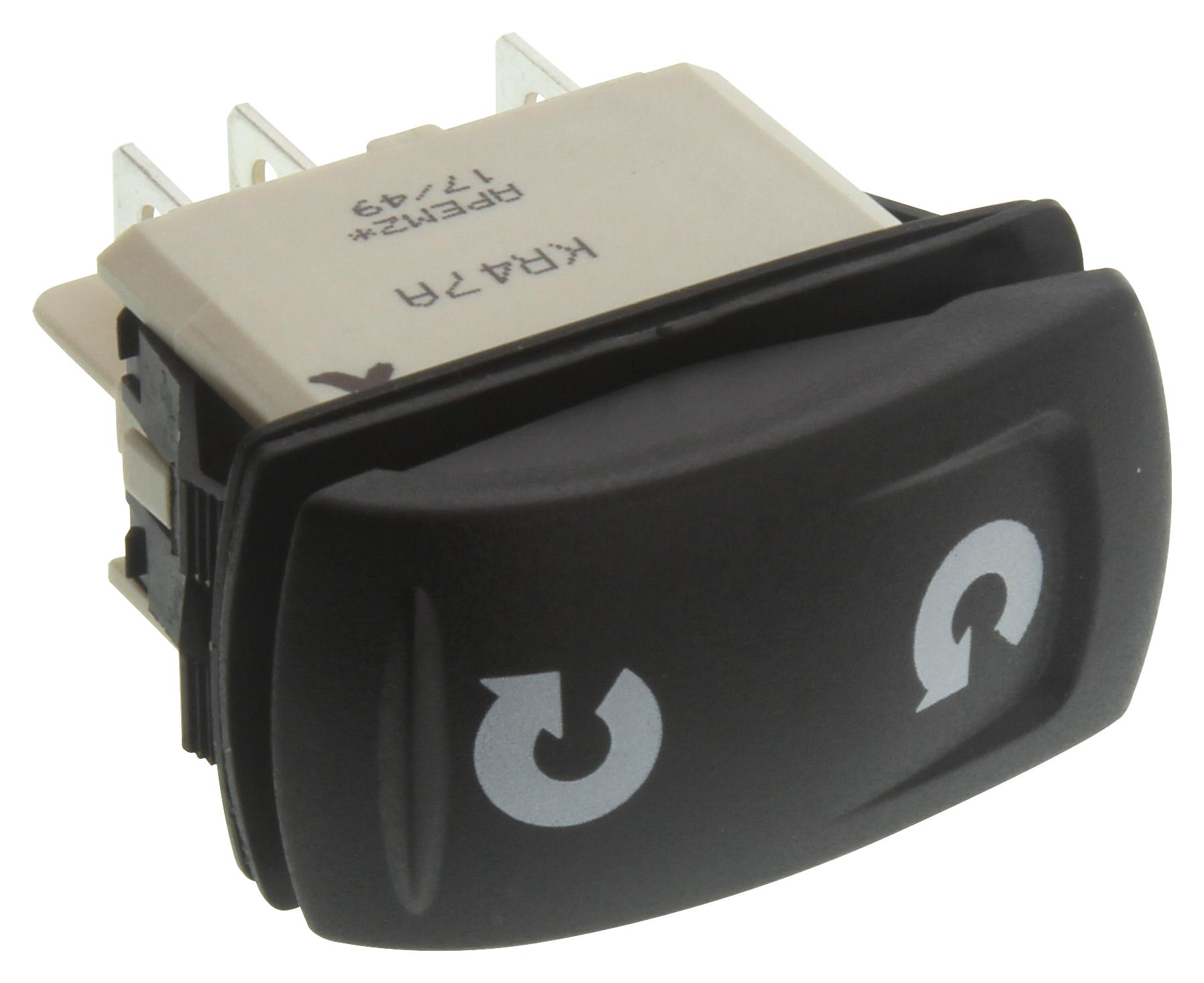

Apem KR472AKXXA12NQRXX9R Power Rocker Switch
Power rocker switches series featuring a distinctive rocker design, wide color options, laser-etched symbols, and optional sealing for IP68 or IP69K. Suitable for industrial environments, these switches resist salt spray, vibration, and operate effectively from -40°C to +85°C. The series supports resistive load ratings up to 20A at 12VDC or 24VDC, with a mechanical life of 150,000 cycles. Constructed with durable materials like PA 6-6 and ABS, they accommodate panel thicknesses from 0.8 mm to 4.6 mm, and are ideal for rugged industrial applications.
Apem KR472AKXXA12NQRXX9R Power Rocker Switch Specifications:
- Sealing options: IP68 to front panel with optional full IP69K sealing
- Salt spray resistance: 96 hours according to IEC 512-6, test 11f
- Vibration resistance: 10-500 Hz / 10 g per IEC 60068-2-6
- Operating temperature: -40 °C to +85 °C
- Current/voltage ratings: 5 A at 24 VDC, 10 A at 24 VDC, 20 A at 12 V, 20 mA at 12 V (gold plated)
- Electrical life: 150,000 cycles minimum
- Contact resistance: Max 10 mΩ
- Insulation resistance: Min 1,000 MΩ at 500 VDC
- Dielectric strength: Min 2,000 Vrms
- Panel thickness: 0.8 mm to 4.6 mm, recommended 2-3.5 mm
- Material: PA 6-6 case, ABS actuator, brass contacts with silver or gold plating
- Mechanical life: 150,000 cycles
- Physical dimensions: Panel cut-out varies from 23 mm to 56 mm depending on model
Buy the APEM KR Series – Reliable Power Rocker Switches for Industrial Applications
Get your APEM KR series power rocker switches online now and enjoy robust performance with high current ratings, multiple sealing options, and durable construction. Perfect for industrial control panels, these switches support resistive loads up to 20A, operate in extreme temperatures, and feature corrosion-resistant materials. With easy installation and proven reliability, they are ideal for demanding environments requiring reliable switching solutions. Purchase today to ensure your machinery and controls are protected with high-quality, industrial-grade switches designed to last and perform under tough conditions.
Order your APEM KR series power rocker switches today and equip your control panels with rugged, high-current industrial switches built for durability.
Frequently Asked Questions
Where can I buy Apem KR472AKXXA12NQRXX9R?
You can click on the BUY or RFQ button to purchase KR472AKXXA12NQRXX9R from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KR472AKXXA12NQRXX9R?
You can download the KR472AKXXA12NQRXX9R datasheet or visit the Apem website for support.
Who is the manufacturer of KR472AKXXA12NQRXX9R?
Apem
