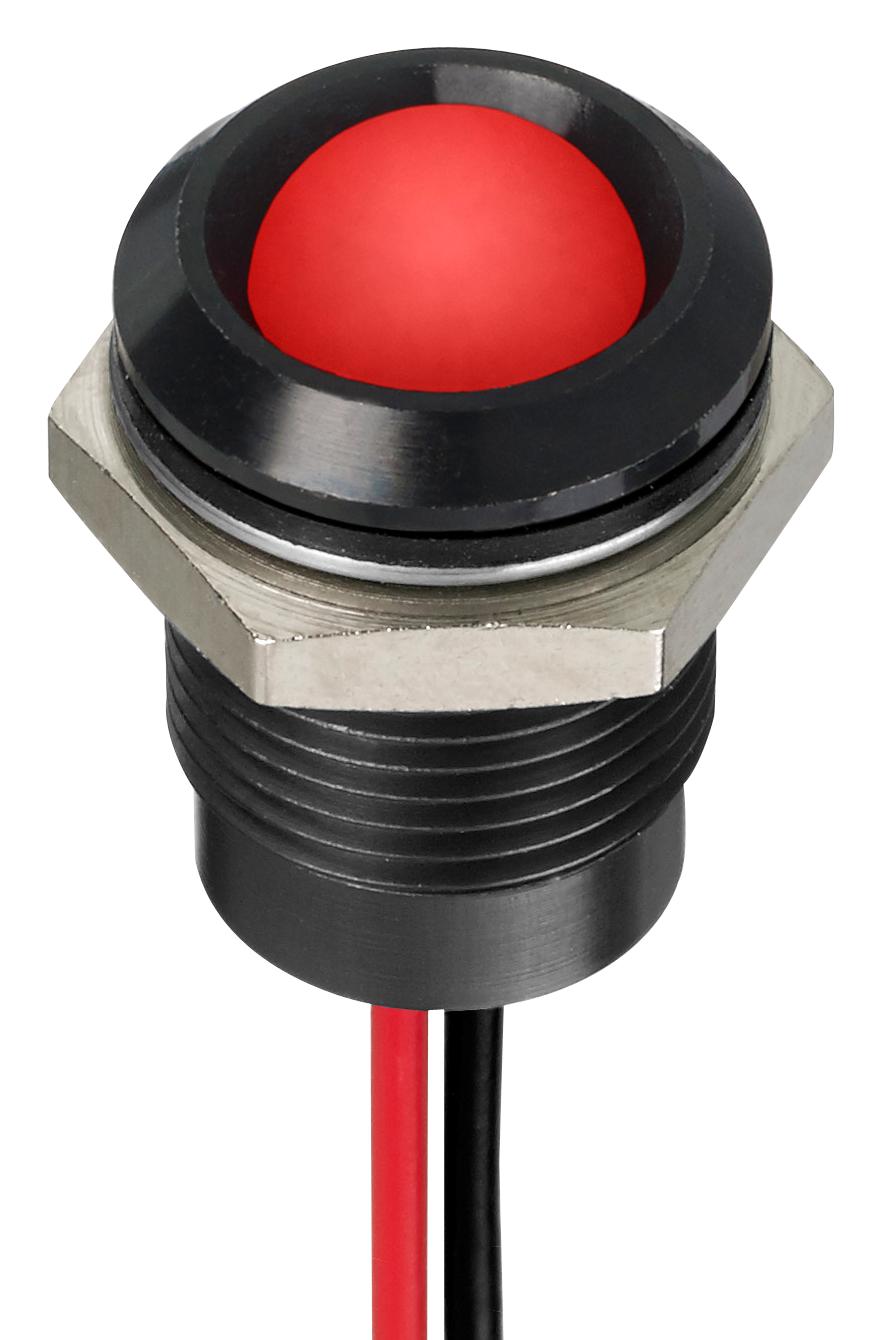

Apem Q14P5BZZRGB24ECA LED Indicator
The Q14 series is a line of 14 mm panel mount LED indicators designed for versatile applications in industrial and electronic environments. Featuring water-clear or diffused epoxy lenses, these LEDs are available in RGB, white, yellow, red, green, and blue colors. They offer high brightness, long life expectancy of 100,000 hours, and are sealed to IP67 standards with optional flush or recessed bezels. Mounting options include solder lug, Faston terminals, and rear epoxy wires, suitable for panel thickness up to 11 mm. These indicators operate across a wide voltage range and are ideal for signaling and status indication in control panels and machinery.
Apem Q14P5BZZRGB24ECA LED Indicator Specifications:
- Lens Type: 10 mm diffused epoxy or water clear
- LED Colors: RGB, White, Yellow, Red, Green, Blue
- Light Intensity: Standard, Hyper Bright, Super Bright, RGB specific
- Viewing Angle: 30-100° depending on model
- Lifespan: 100,000 hours
- Reverse Voltage: Max 5 V
- Operating Voltage: 1.8 to 33 VDC, 6 VDC, 12 VDC, 24 VDC, 28 VDC, 110 VAC, 220 VAC
- Operating Current: Max 20 mA, 6 mA for 110 VAC, 3 mA for 220 VAC
- Sealing: Options include IP67 sealed, unsealed
- Mounting Hole: 14x10 mm with M14x1.0 thread
- Mounting Options: Flush, recessed, short body, rear epoxy wires or pins
- Bezel Finish: Bright chrome, black, satin grey
- Environmental: Operating Temp -30°C to +85°C, Storage -40°C to +85°C
Buy the Buy Manufacturer Q14 Series LED Indicators Part Number Q14P5BZZRGB24ECA Online
Purchase the Manufacturer Q14 Series LED Indicator online today for reliable and durable signaling solutions. These 14 mm panel mount LEDs are available in multiple colors including RGB, white, yellow, red, green, and blue, offering high brightness and long operational life of 100,000 hours. They feature IP67 sealing with optional flush or recessed bezels, suitable for harsh environments. Easy to install with solder lug, Faston terminals, or rear epoxy wires, and operate over a wide voltage range. Perfect for industrial control and status indication, ensuring safety and operational efficiency.
Order your Manufacturer Q14 Series RGB LED Indicator with Water Clear Lens today and enhance your control panels with dependable, high-brightness signaling components.
Frequently Asked Questions
Where can I buy Apem Q14P5BZZRGB24ECA?
You can click on the BUY or RFQ button to purchase Q14P5BZZRGB24ECA from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P5BZZRGB24ECA?
You can download the Q14P5BZZRGB24ECA datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P5BZZRGB24ECA?
Apem
