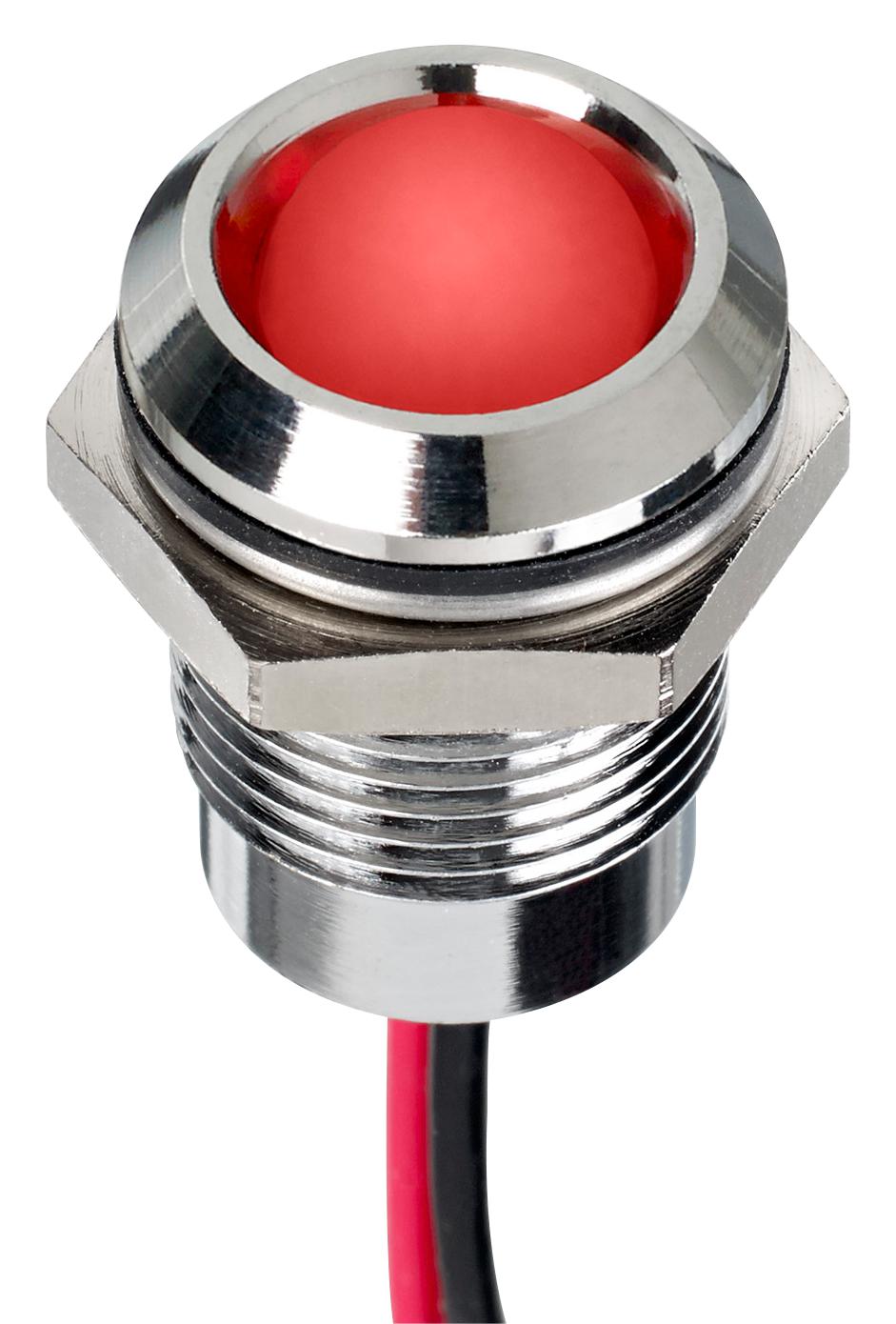

Apem Q14P5CXXHR24E LED Indicator
The Q14 series panel mount LED indicators offer high brightness and durability with 14 mm size, featuring epoxy or water-clear lenses, prominent or recessed bezels, and optional RGB colors. Devices are designed for easy mounting with various terminal options, including solder lug, faston, or wire terminations, and are sealed to IP67 for outdoor or harsh environments. Suitable for indicators, status signals, and alert systems, these LEDs feature a long life expectancy of 100,000 hours and operate within specified voltage and temperature ranges, making them ideal for industrial applications.
Apem Q14P5CXXHR24E LED Indicator Specifications:
- Size: 14 mm diameter
- Lens: 10 mm diffused epoxy or water clear
- Bezel: Prominent, recessed, or flush styles, plated brass, chrome, black, satin grey
- Max panel thickness: 11 mm
- Terminal options: solder lug, faston, pins, wire terminations up to 200 mm
- Sealing: IP67 option available
- Operating Voltage: 1.8-33 VDC, 110-220 VAC with resistor if needed
- Reverse Voltage: 5 V maximum
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Temperature Range: -30°C to +85°C depending on body type
- Materials: Moulded polycarbonate rear body, plated brass bezel
- Current: 20 mA (standard), various for high brightness options
Buy the ApeM Series Q14 LED Indicators: Q14P5CXXHR24E
Discover the high-quality, durable LED indicators from the Q14 series perfect for industrial control and signaling. Featuring 14 mm size, IP67 sealing options, and various bezel and terminal styles, these indicators are suitable for rugged environments. With long lifespan, high brightness options, and customizable engravings, they provide reliable performance for status indication. Suitable for applications requiring robust and vibrant LED signals, these indicators are easy to install and designed to meet demanding industrial standards. Purchase online today for instant access to dependable, versatile signaling solutions.
Order your ApeM Series Q14 LED Indicator today and enhance your industrial signaling with durable, high-brightness LED solutions.
Frequently Asked Questions
Where can I buy Apem Q14P5CXXHR24E?
You can click on the BUY or RFQ button to purchase Q14P5CXXHR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P5CXXHR24E?
You can download the Q14P5CXXHR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P5CXXHR24E?
Apem
