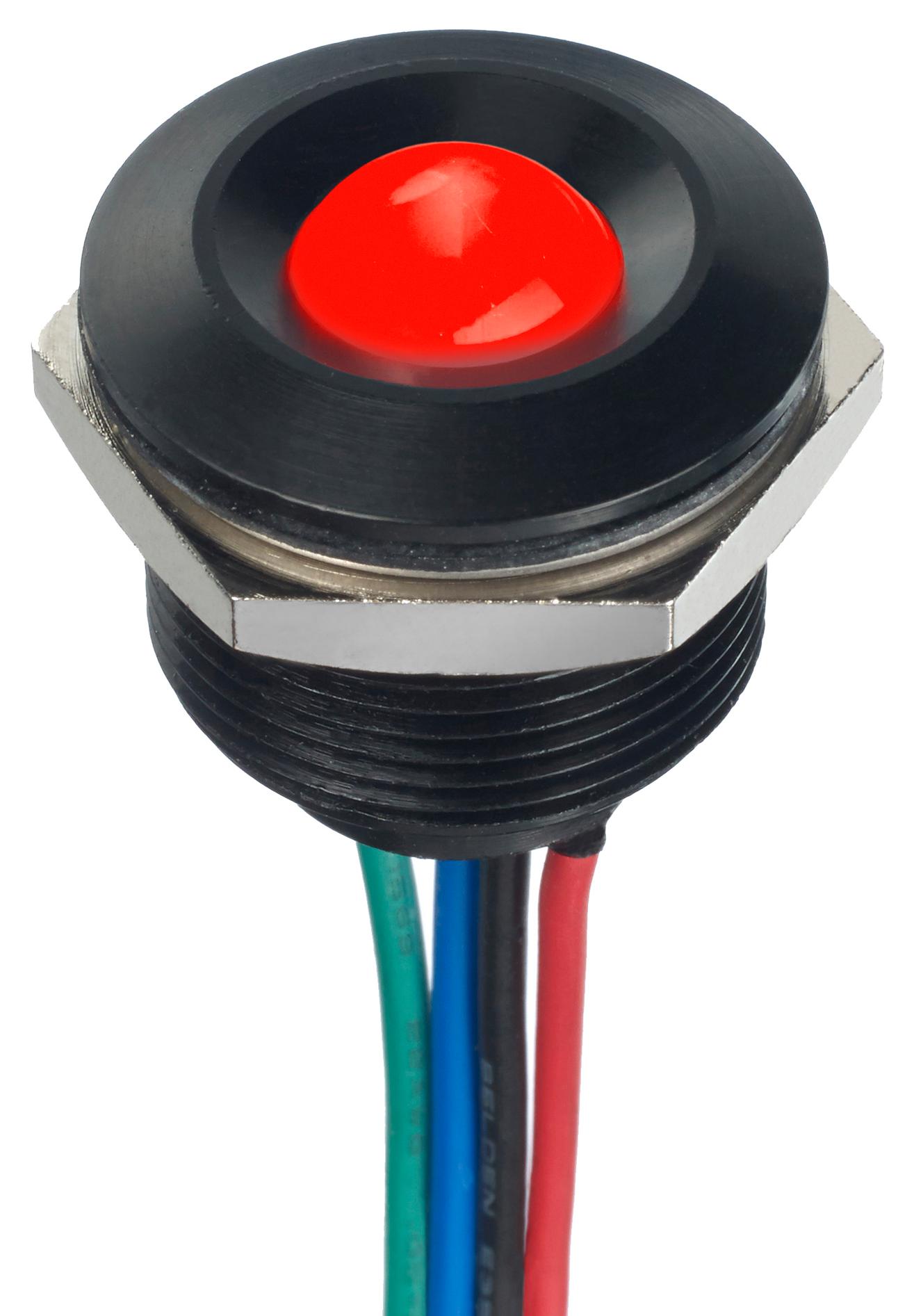

Apem Q19P5BZZRGB12ECA LED Indicator
The Q19 series panel mount LED indicators are designed with 19 mm diameter and feature options for distinctive bezel styles, including prominent, recessed, and extra prominent designs. They are available with water-clear or diffused epoxy lenses and offer various terminal configurations such as solder lug, faston, or wire terminations. These indicators support multiple LED colors, including RGB, and are suitable for industrial applications requiring high brightness, long life expectancy of 100,000 hours, and environmental sealing options like IP67. They operate within temperature ranges from -40°C to +85°C depending on the body type, with a maximum reverse voltage of 5V and a viewing angle ranging from 30° to 100°.
Apem Q19P5BZZRGB12ECA LED Indicator Specifications:
- Diameter: 19 mm
- Lens: 10 mm diffused epoxy or water clear
- Bezel styles: Prominent, recessed, extra prominent
- Terminals: Solder lug, faston, wires, pins
- Max Reverse Voltage: 5 V
- Viewing Angle: 30° to 100° (dependent on model)
- Life Expectancy: 100,000 hours
- Operating Temperature: -40°C to +85°C (body dependent)
- Sealing: IP67 optional
- Materials: Plated brass bezel, molded polycarbonate rear body
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB
- Voltage Range: 6 VDC to 220 VAC/DC
- Connection: Solder lug, faston, rear epoxy wires, short body wires
- Maximum panel thickness: 11 mm
- Torque: 75 cNm
Buy the Acme Q19P5BZZRGB12ECA – Reliable Industrial LED for Industrial Applications
Discover the high-quality LED indicator series suitable for industrial controls and panels. Featuring various bezel styles, multiple colors including RGB, and seals up to IP67, these indicators guarantee durability and clarity. With long life expectancy of 100,000 hours, they operate across wide temperature ranges from -40°C to +85°C, ensuring reliable performance in demanding conditions. Choose from solder lug, faston, and wire terminations for flexible installation. Enhance your control panels with these robust, visually distinctive LED indicators for industrial applications.
Buy Acme Q19P5BZZRGB12ECA now and experience unmatched reliability and performance in harsh industrial environments.
