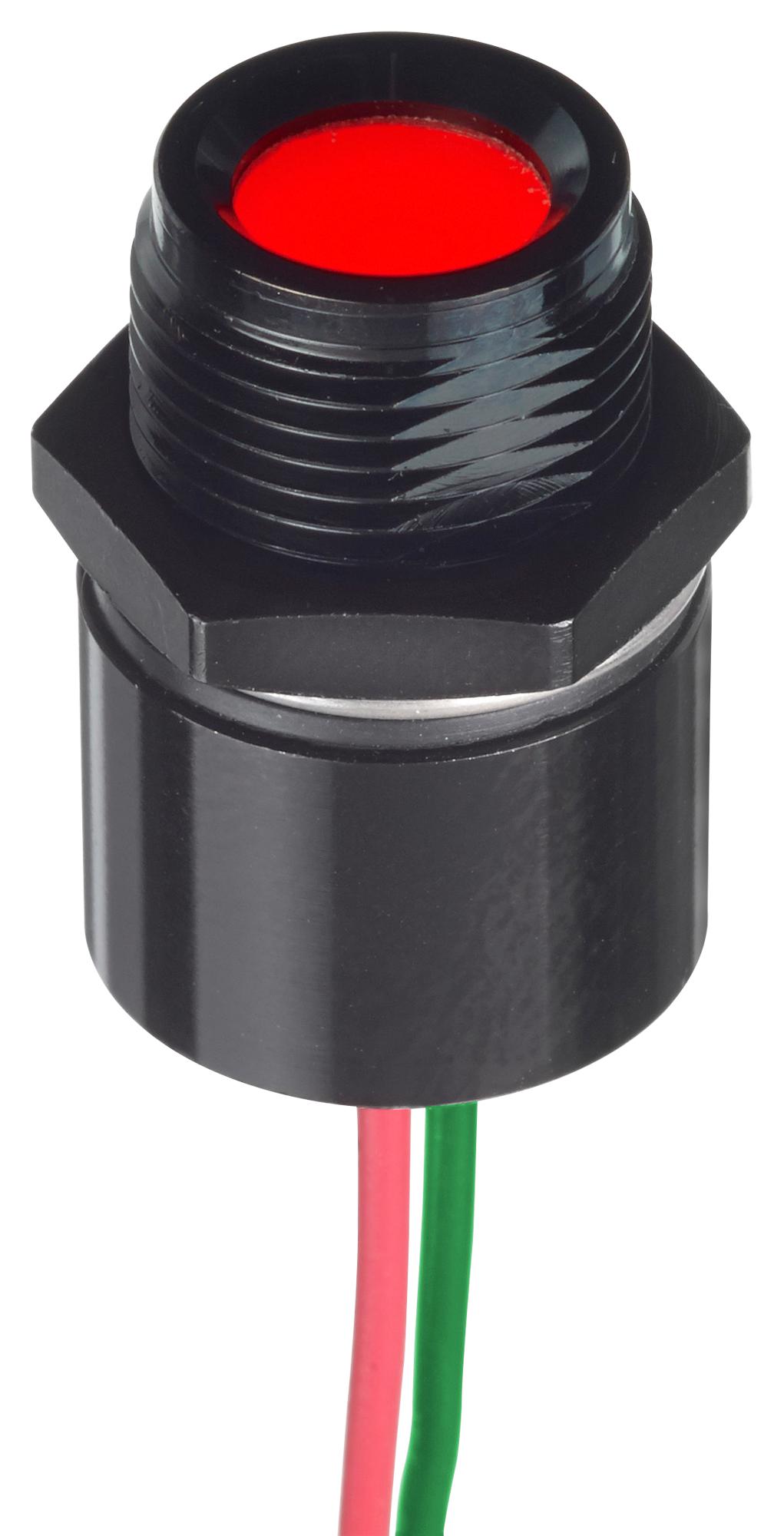

Apem QRM145BYYRG12E LED Indicator
The QRM14 series rear panel mount LED indicators are designed for industrial applications with 14mm diameter, IP67 sealing, and multiple color options including bi-color and tri-color. They feature a black chrome body, epoxy sealed rear end, and wires typical length 200mm. Operating from 2VDC to 28VAC/DC, these LEDs offer high brightness, long life expectancy up to 100,000 hours, and are suitable for panel thickness up to 10mm. Ideal for signaling in demanding environments with their sealed, durable construction and wide voltage range.
Apem QRM145BYYRG12E LED Indicator Specifications:
- Diameter: 14mm
- Sealing: IP67 (EN60529)
- Body Material: Black chrome plated brass
- Seal Material: Nitrile O-ring
- Wire Length: 200mm, 22AWG UL1061
- Voltage Range: 2VDC to 28VAC/DC
- Operating Current: 20mA max
- Reverse Voltage: Max 5V
- Viewing Angle: 60°
- Inrush Voltage: 2.0V to 3.3V depending on color
- Luminous Intensity: 50mcd to 17,000mcd depending on type and color
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +100°C
- Panel Thickness Max: 10mm
- Torque: 75cNm
- Materials: Brass, steel, epoxy, nitrile O-ring
- Certifications: UL Recognized
Buy the Buy APEM QRM14 Series Rear Panel Mount LED Indicators Part Number QRM145BYYRG12E Online
Discover the reliable and durable APEM LED indicator designed for industrial applications. Featuring 14mm diameter, IP67 sealing, and multiple color options including bi-color and tri-color. It operates over a wide voltage range from 2VDC to 28VAC/DC, ensuring versatility across various systems. With a long lifespan of up to 100,000 hours, these indicators provide excellent visibility and performance in demanding environments. Easily connect via 200mm wires, suitable for panel thickness up to 10mm, making installation straightforward and secure. Perfect for signaling and indicator needs in automation, manufacturing, and control systems.
Order your APEM QRM14 series LED indicator with high brightness and sealed IP67 protection today and enhance your projects' signaling reliability.
Frequently Asked Questions
Where can I buy Apem QRM145BYYRG12E?
You can click on the BUY or RFQ button to purchase QRM145BYYRG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QRM145BYYRG12E?
You can download the QRM145BYYRG12E datasheet or visit the Apem website for support.
Who is the manufacturer of QRM145BYYRG12E?
Apem
