Apem Q16F5BXXHG12E326 LED Indicator Light
The Q16 series is a family of 16 mm panel mount LED indicators designed for industrial and electronic applications. They feature secret until lit polycarbonate decals or custom engraving, water-clear or diffused epoxy lenses in various colors including RGB options. The indicators offer high brightness LEDs with an 85-90 hour life expectancy, sealed IP67 for durability, and multiple terminal and mounting options such as solder lug, faston, pins, or wires. Suitable for various environment temperatures and electrical configurations, these indicators are ideal for signaling and status indication in harsh environments.
Apem Q16F5BXXHG12E326 LED Indicator Light Specifications:
- Diameter: 16 mm
- Material: Polycarbonate lens, brass bezel, molded polycarbonate rear body
- Sealing: IP67 option available
- Operating Temperature: -30 °C to +65 °C for plastic body, -40 °C to +85 °C for epoxy body
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5 V
- Torque: 75 cNm
- Maximum Panel Thickness: 11 mm
- LED Types: Super bright, hyperbright, RGB, bi-color, tri-color
- Operating Current: 20 mA typical
- Voltage Range: 6 V to 220 VAC/DC with resistor required for specific voltages
- Bezel Finish: Bright chrome, black, satin grey
- Mounting Hole Size: 16 mm
- Electrical Terminals: Solder lug, faston, pins, or wires (200 mm length)
- Environmental: Suitable for harsh environments with optional sealing
- Custom Engraving: Available with secret until lit polycarbonate inserts

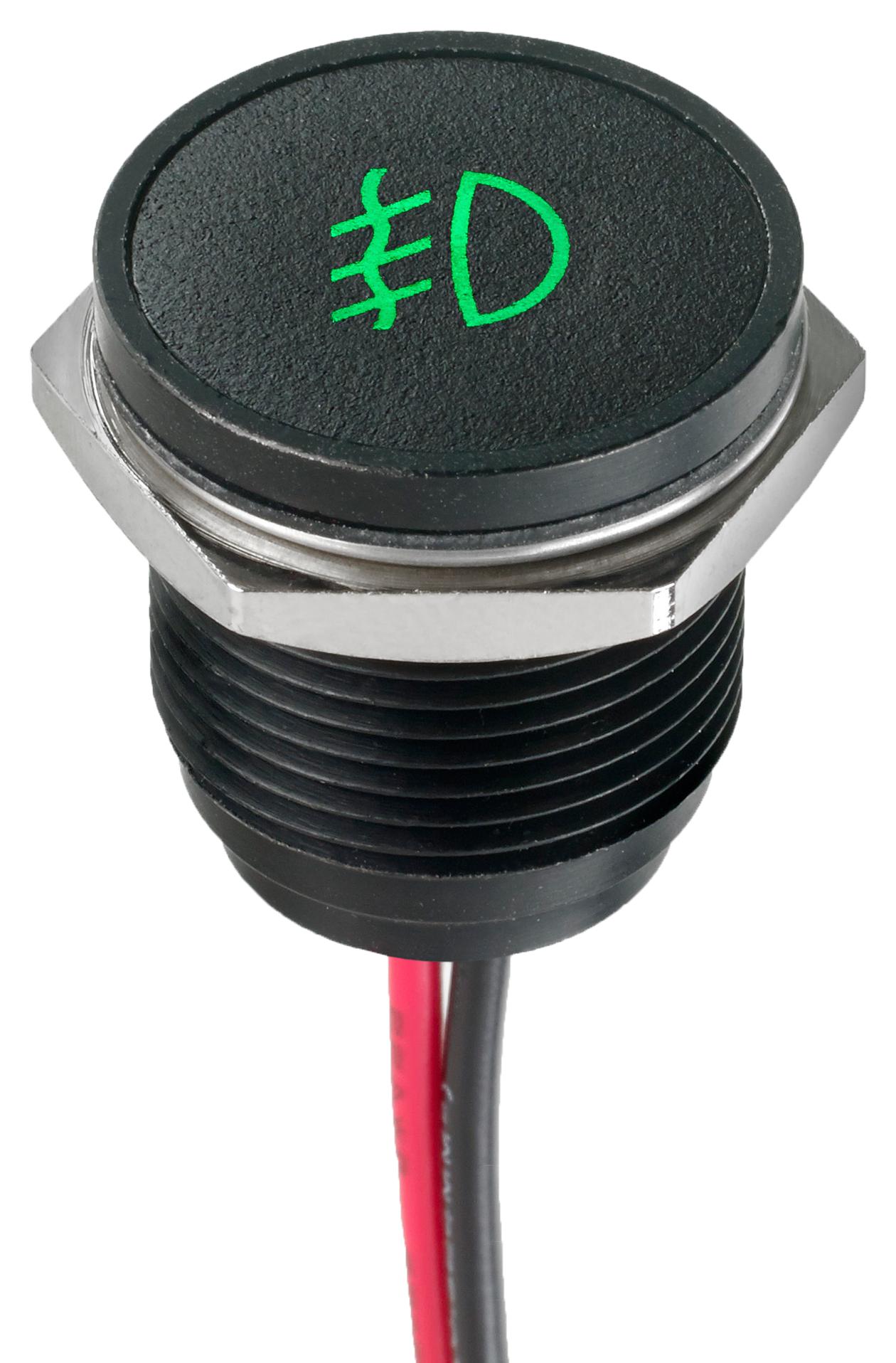

Buy the APEM Series Q16 LED Indicator: Q16F5BXXHG12E326
Order the APEM LED Indicator Light online today to ensure reliable signal indication in your equipment. These 16 mm panel mount indicators feature high-brightness LEDs, multiple mounting and termination options, and IP67 sealing for harsh environments. Perfect for industrial control panels, machinery, and electronic systems requiring durable and customizable signaling solutions. With a life expectancy of 100,000 hours and various color and configuration options, these indicators provide long-lasting performance and easy installation, making them a valuable addition to any control system or machinery interface.
Get APEM Q16F5BXXHG12E326 today—built for durability, high brightness, and customizable signaling options in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q16F5BXXHG12E326?
You can click on the BUY or RFQ button to purchase Q16F5BXXHG12E326 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16F5BXXHG12E326?
You can download the Q16F5BXXHG12E326 datasheet or visit the Apem website for support.
Who is the manufacturer of Q16F5BXXHG12E326?
Apem
