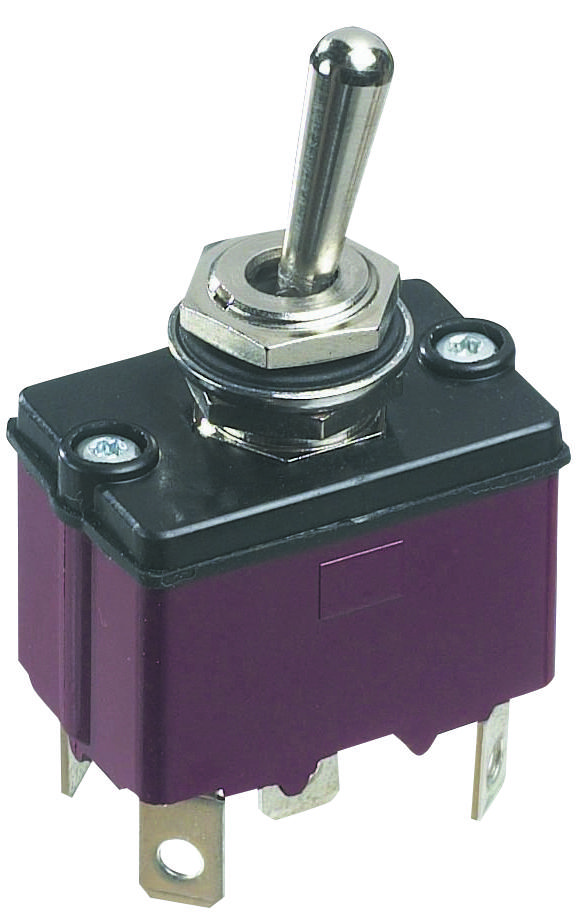

Apem 3631NF2 Sealed Toggle Switch
Sealed toggle switch designed for outdoor applications, featuring a single pole configuration with solder lug and quick connect terminals. It offers ON, OFF, and NONE positions, providing reliable switching in harsh environments. The switch is sealed with multiple layers of all-around gaskets, elastomer components, and molded-in terminal inserts, ensuring protection against dust, moisture, and environmental factors. It supports resistive loads up to 12A 28VDC, with solid silver contacts for enhanced electrical performance. Suitable for various industrial, outdoor control, and automation systems requiring durable and sealed switching solutions.
Apem 3631NF2 Sealed Toggle Switch Specifications:
- Sealed with O-ring, elastomer gasket, and sealing washer U60
- Material: phenolic resin case, brass nickel plated actuator and bushing, solid silver contacts
- Max. current/voltage rating: 12A 28VDC resistive load
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Dielectric strength: 2,500 Vrms between terminals, 3,000 Vrms between terminals and frame
- Electrical life: 10,000 cycles at full load
- Operating temperature: -40°C to +85°C
- Panel thickness: max. 2 mm
- Torque: maximum 1.50 Nm
- Mounting accessories include sealing boot, nut, washer
- Available with single or double pole configurations, various actuation options
Buy the Buy APEM Sealed Toggle Switch Part Number 3631NF2 Online
Purchase the durable APEM sealed toggle switch online today. Designed for outdoor use, this switch features a reliable sealing system, robust construction, and solid silver contacts. It supports resistive loads up to 12A 28VDC, ensuring long-lasting performance in harsh environments. Perfect for industrial control systems, automation, or outdoor equipment requiring sealed switching solutions. Efficient mounting with accessories included makes it easy to install. Order now for dependable, outdoor-rated switching ready to withstand extreme conditions and deliver consistent operation.
Get APEM 3631NF2 today—built for outdoor durability, reliable switching, and environmental sealing for industrial applications.
