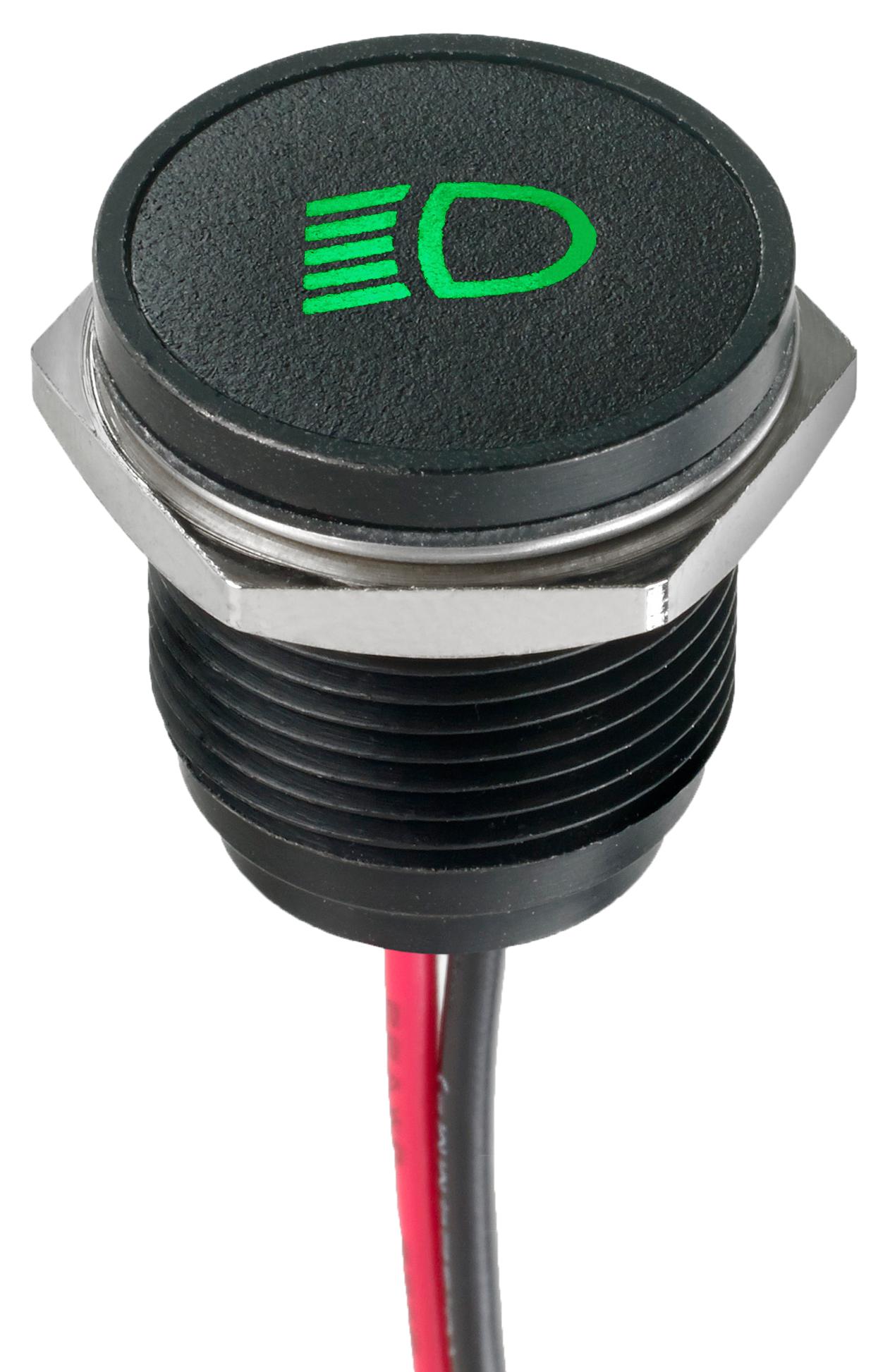

Apem Q16F5BXXHG12E397 Industrial LED Indicator
The Q16 series is a line of 16 mm panel mount LED indicators designed for industrial and control panel applications. Featuring distinctive secret until lit polycarbonate decals or custom engraving, these indicators are available with water-clear or diffused epoxy lenses in multiple bright, super-bright, and hyper-bright LED colors including RGB options. They offer IP67 sealing, operating temperatures from -40°C to +85°C depending on the body type, and a lifespan of 100,000 hours. Mounting options include solder lug, fastons, pins, or wires, with various bezel finishes such as bright chrome, black, or satin grey.
Apem Q16F5BXXHG12E397 Industrial LED Indicator Specifications:
- Size: 16 mm diameter
- Sealing: IP67 (optional)
- Operating Temperature: -40°C to +85°C depending on body type
- Lifespan: 100,000 hours
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (dependent on model)
- Mounting Hole Diameter: 16 mm
- Max Panel Thickness: 11 mm
- Materials: Plated brass bezel, polycarbonate rear body
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, and Tri-color options
- LED Types: Standard, super bright, hyper bright
- Terminals: Solder lug, faston, pins, or wire terminations
- Lens Types: Diffused epoxy or water-clear
- Environmental Resistance: Optional IP67 sealing
- Electrical Ratings: Up to 28 VDC and VAC, depending on model
Buy the ZEALOT Series Q16 LED Indicator: Q16F5BXXHG12E397
Enhance your control systems with the ZEALOT Q16 series LED indicators, designed for durability and high visibility. These 16 mm panel mount indicators feature secret until lit polycarbonate decals or custom engravings, and are available in multiple LED colors including RGB. With IP67 sealing options, long operational life of 100,000 hours, and versatile wiring and mounting configurations, they are ideal for demanding industrial environments. Easily install with solder lug, faston, pins, or wires, ensuring reliable performance for critical applications.
Get ZEALOT Q16F5BXXHG12E397 today—built for long-lasting durability and visibility in industrial control panels.
