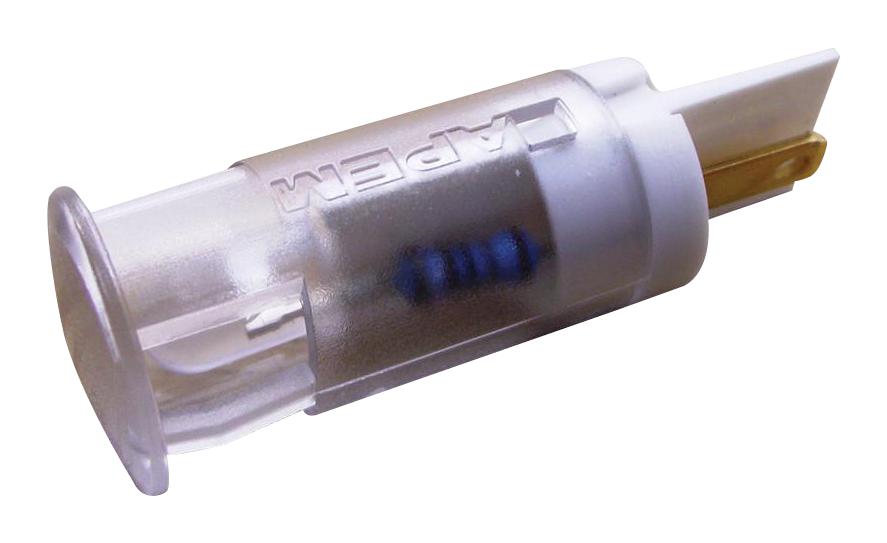

Apem QS101XXW12 White LED indicator
The QS101XXW12 is a white LED indicator from the QS series designed for panel mounting using a snap-in fixture. It features a polycarbonate lens and body with a diffused flat lens, suitable for replacing filament and neon indicators. Operating within 10.8 to 13.2 VDC at 20mA, it offers a standard intensity of 1200mcd and viewing angle of 30°. This indicator supports 10mm panel cut-out, with solder lug or Faston terminals, and a lifespan of approximately 100,000 hours. Its temperature range is -30°C to +85°C, suitable for signaling applications in various electrical systems.
Apem QS101XXW12 White LED indicator Specifications:
- Operating Voltage: 10.8 to 13.2 VDC
- Operating Current: 20mA
- Luminous Intensity: 1200mcd
- Viewing Angle: 30°
- Lens Material: Polycarbonate (UL94V-0)
- Lens Type: Diffused flat
- Panel Cut-Out: 10mm
- Mounting: Snap-in with solder lug or Faston terminals (2.8 x 0.8mm)
- Maximum Reverse Voltage: 5V
- Forward Voltage: 3.3V
- Lifespan: approx. 100,000 hours
- Operating Temperature Range: -30°C to +85°C
Buy the APEM QS101XXW12 – Reliable White LED for Industrial Applications
Purchase the APEM QS101XXW12 white LED indicator online today and enhance your signaling setups with a high-lumen, durable, and easy-to-mount indicator. This versatile component features a 10mm panel cut-out, supports solder lug or Faston terminals, and offers a lifespan of approximately 100,000 hours. Its diffused lens ensures even light distribution, ideal for various applications including industrial controls, fire alarm panels, and domestic appliances. Get reliable brightness and superior performance, and streamline your assembly process by buying online now.
Order your APEM QS101XXW12 series white LED indicator today and ensure your signaling systems operate reliably with high-quality indicators.
Frequently Asked Questions
Where can I buy Apem QS101XXW12?
You can click on the BUY or RFQ button to purchase QS101XXW12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS101XXW12?
You can download the QS101XXW12 datasheet or visit the Apem website for support.
Who is the manufacturer of QS101XXW12?
Apem
