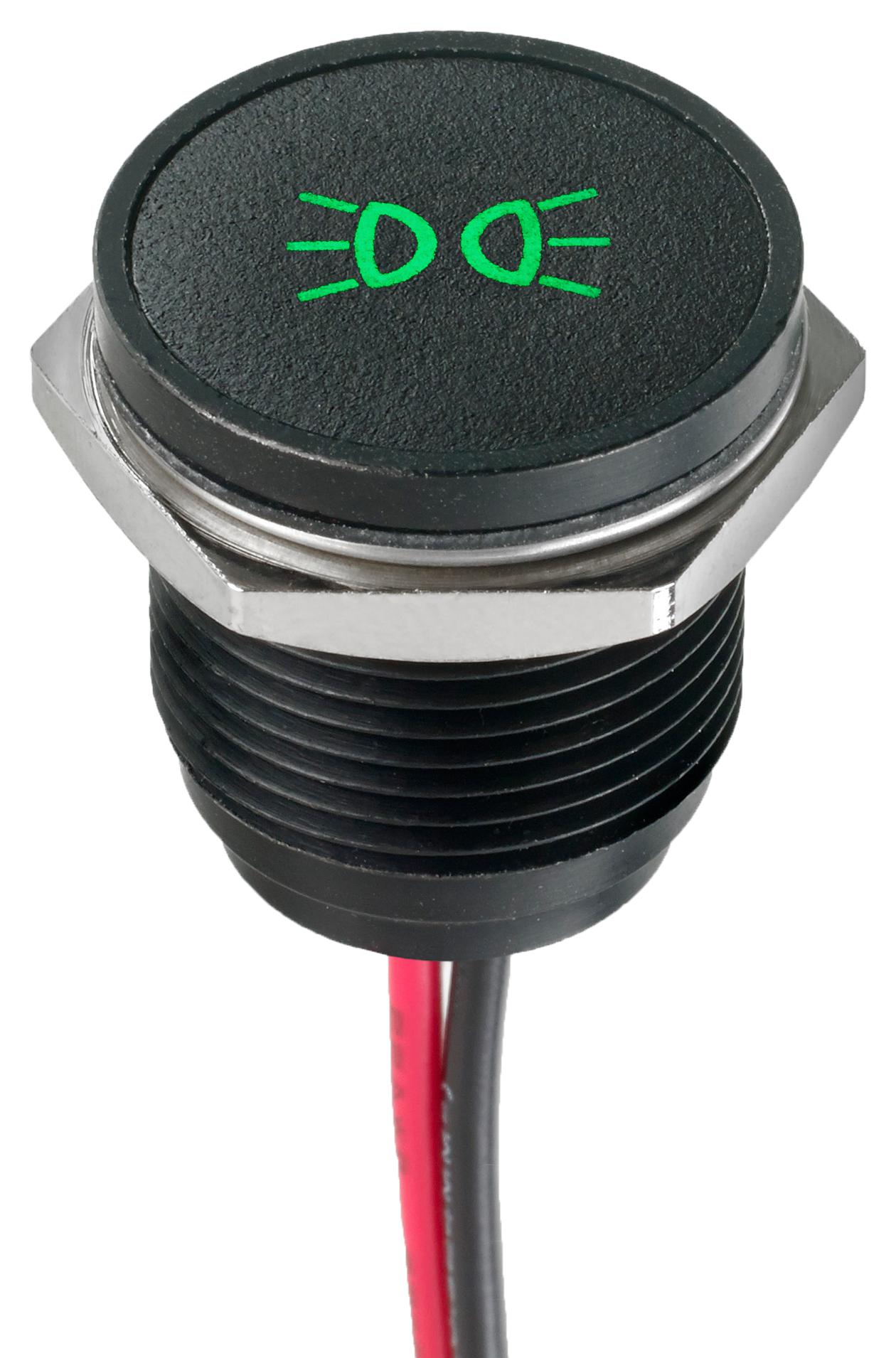

Apem Q16F5BXXHG12E398 Panel Mount LED Indicator
Q16 series panel mount LED indicators offer a reliable and versatile lighting solution suitable for industrial control panels and equipment. Featuring waterproof IP67 sealing, high brightness LEDs, and various mounting options, these indicators provide excellent visibility and durability. They are available in multiple colors including red, green, blue, yellow, white, and orange, with optional custom engraving and secret until lit polycarbonate inserts for enhanced security. Constructed with plated brass bezels and molded polycarbonate bodies, these indicators operate effectively within temperature ranges of -30°C to +85°C and have a lifespan of 100,000 hours, making them ideal for demanding environments.
Apem Q16F5BXXHG12E398 Panel Mount LED Indicator Specifications:
- Sealing: IP67 (waterproof enclosure)
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- LED Voltage: Red 2V, Green 5V, Yellow 4V, Blue 3.3V, White 3.3V, Orange 2V
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (dependant on model)
- Life Expectancy: 100,000 hours
- Bezel Material: Plated brass, finished in bright chrome, black, or satin grey
- Body Material: Molded polycarbonate
- Maximum Panel Thickness: 11 mm
- Terminals: Solder lug, faston, pins, or wire terminations (200 mm long)
- LED Intensity Options: Standard, Super Bright, Hyper Bright
- Operating Current: 20 mA (typical)
- Voltage Range: 6 V to 220 V AC/DC variants
- Dimension: 16 mm mounting diameter, height varies with installation
- Certifications: Suitable for industrial control panels
Buy the APEM Series Q16 LED Indicators: Panel Mount High Brightness Signal Light
Discover APEM Q16 series panel mount LED indicators, engineered for durability and high visibility in industrial environments. Featuring IP67 sealing, multiple color options, secret until lit polycarbonate inserts, and various mounting styles, these indicators ensure reliable operation even in demanding conditions. Designed with plated brass bezels and molded polycarbonate bodies, they provide long-lasting performance with a lifespan of 100,000 hours. Perfect for control panels needing clear, bright, and secure signaling in temperatures from -30°C to +85°C. Shop online now for fast, reliable delivery.
Buy APEM Q16 series LED indicators now and experience unmatched durability, high brightness, and customizable security features for your control systems.
Frequently Asked Questions
Where can I buy Apem Q16F5BXXHG12E398?
You can click on the BUY or RFQ button to purchase Q16F5BXXHG12E398 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16F5BXXHG12E398?
You can download the Q16F5BXXHG12E398 datasheet or visit the Apem website for support.
Who is the manufacturer of Q16F5BXXHG12E398?
Apem
