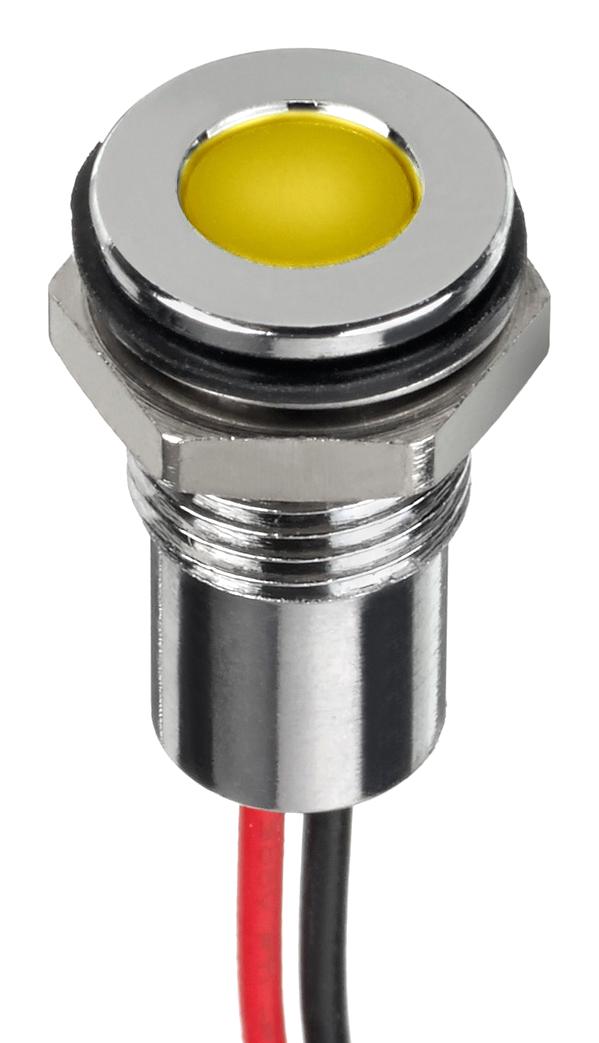

Apem Q6F5CXXHY24E Panel Mount LED Indicator
The Q6 series comprises 6 mm panel mount LED indicators designed for reliable visual signaling in electronic equipment. Featuring super bright LEDs with high luminosity ratings, these indicators are available in multiple colors including red, green, yellow, blue, white, and orange. They come with various terminal options such as solder lugs, pins, or wire leads, and are suitable for panel thicknesses up to 7 mm. Optional environmental sealing (IP67) enhances durability, making these indicators ideal for industrial and outdoor applications where high visibility and robustness are required.
Apem Q6F5CXXHY24E Panel Mount LED Indicator Specifications:
- Lens: 3 mm diffused epoxy or water clear
- LED Types: Standard, Super Bright, Hyper Bright
- Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- Viewing Angle: 30-100° depending on model
- Max Reverse Voltage: 5 V
- Operating Voltage: 1.8V to 33V DC with resistor, 6V, 12V, 24V, or 28V options
- Luminosity: Ranges from 20 med (standard) to 10,000 med (hyper bright)
- Lifespan: 100,000 hours
- Ambient Temperature Range: -30°C to +85°C
- Temperature Rating: -40°C to +85°C depending on body material
- Sealing: IP67 optional, unsealed versions available
- Panel Thickness: Max 7 mm
- Materials: Plated brass bezel in chrome, black, satin grey; molded polycarbonate rear body
- Mounting Hole Size: 6 mm
Buy the Buy BrandName 6 mm Panel Mount LED Indicator Part Number Q6F5CXXHY24E Online
Purchase the BrandName Panel Mount LED Indicator Part Number Q6F5CXXHY24E online today and enhance your projects with high visibility, long-lasting LEDs available in multiple colors and terminal options. These indicators feature various brightness levels, from standard to hyper bright, ensuring excellent visibility in all environments. With optional sealing up to IP67, the durable design withstands outdoor and industrial conditions. Easy to install with solder lugs or wires, they are perfect for control panels, machinery, and visual signaling applications demanding reliability and clear indication.
Order your BrandName SeriesQ6 LED Indicator Part Number Q6F5CXXHY24E today and ensure bright, reliable visual signals with durable, high-quality LEDs.
