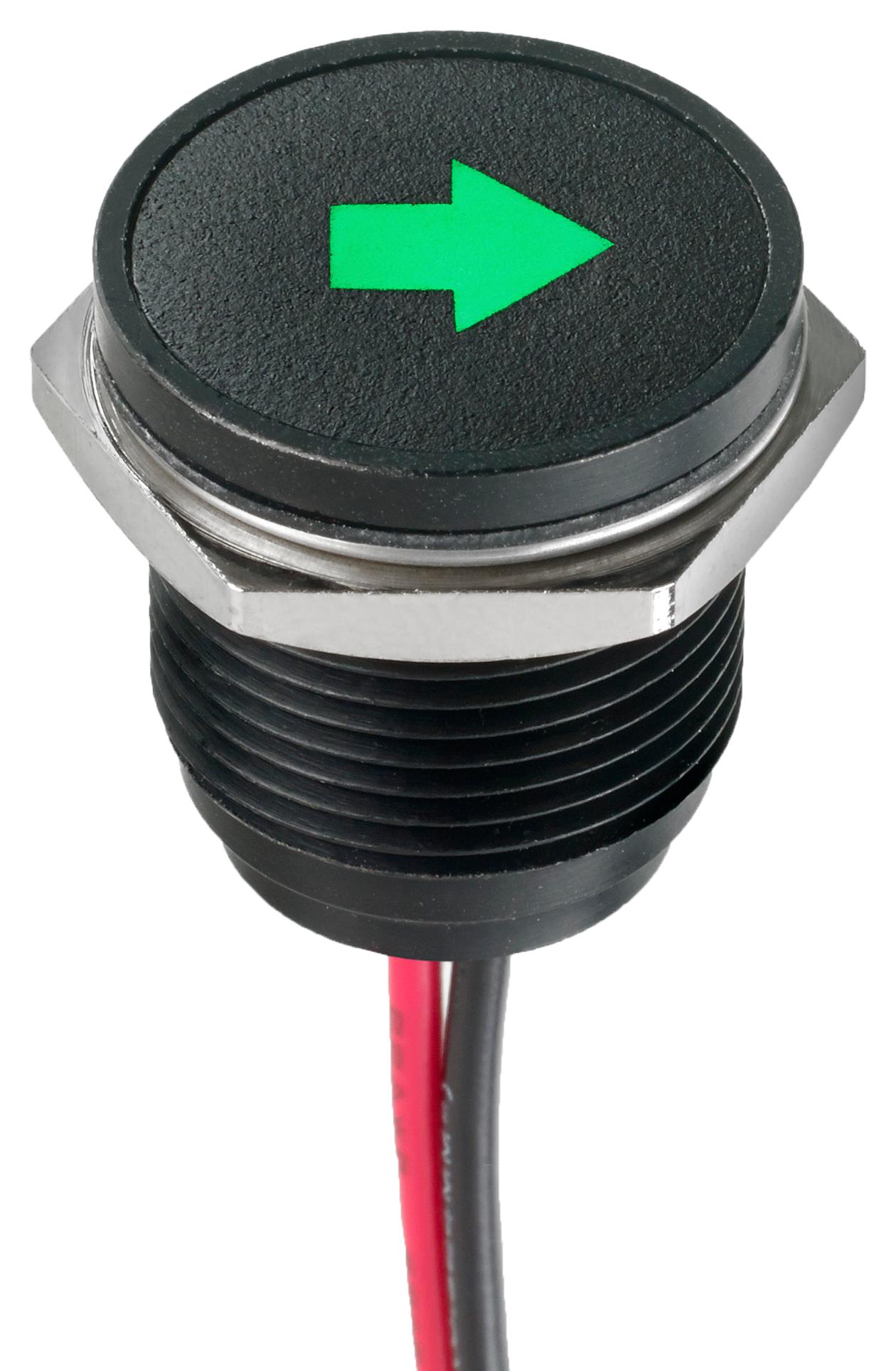

Apem Q16F5BXXHG12E3K6 Panel Mount LED Indicator
The Q16F5BXXHG12E3K6 is a 16 mm panel mount LED indicator designed for various industrial and automotive applications. Featuring secret until lit polycarbonate inserts, it offers customizable engravings, multiple color options including RGB variants, and high-brightness LEDs with lifespans of up to 100,000 hours. The indicator's sealed IP67 option ensures reliability in harsh environments, with operating temperatures ranging from -40°C to +85°C. Its durable metal bezel finishes in chrome, black, or satin grey support secure mounting and long-term use in demanding settings.
Apem Q16F5BXXHG12E3K6 Panel Mount LED Indicator Specifications:
- Diameter: 16 mm
- Bezel Material: Plated brass, finishes in bright chrome, black, or satin grey
- Body Type: Moulded polycarbonate rear body
- Sealing: IP67 sealing option available
- Operating Temperature: Rear plastic body: -30°C to +65°C, epoxy body: -40°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (model dependent)
- Connection Terminals: Solder Lug/Faston, wires (200 mm length), pins
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Tricolor
- LED Voltage: 2V to 22V depending on options, with hyperbright and super bright variants
- Luminous Life Span: Up to 100,000 hours
- Max Panel Thickness: 11 mm
- Dimensions: M16x1.0 mounting thread, with options for short bodies and various wiring configurations
- Environmental Ratings: EN60529 compliant sealing (IP67 optional)
- Electrical: Suitable for 18-33V DC and 110/220 VAC operation with resistor considerations
Buy the Buy Brand Q16 Series Panel Mount LED Indicator Part Number Q16F5BXXHG12E3K6 Online
Enhance your projects with the Q16 Series Panel Mount LED Indicator. This durable, high-brightness indicator features secret until lit polycarbonate inserts, customizable engravings, and various color options including RGB. Designed for harsh environments with IP67 sealing, it offers long lifespan of up to 100,000 hours. Easy to install with multiple wiring options—solder lug, faston, wires, pins—and supports panel thicknesses up to 11 mm. Perfect for industrial, automotive, and safety applications, this versatile indicator provides reliable signaling for demanding settings. Order online now!
Order your Brand Q16 Series Q16F5BXXHG12E3K6 high-brightness LED indicator today and enhance your industrial and automotive projects with dependable durability.
Frequently Asked Questions
Where can I buy Apem Q16F5BXXHG12E3K6?
You can click on the BUY or RFQ button to purchase Q16F5BXXHG12E3K6 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16F5BXXHG12E3K6?
You can download the Q16F5BXXHG12E3K6 datasheet or visit the Apem website for support.
Who is the manufacturer of Q16F5BXXHG12E3K6?
Apem
