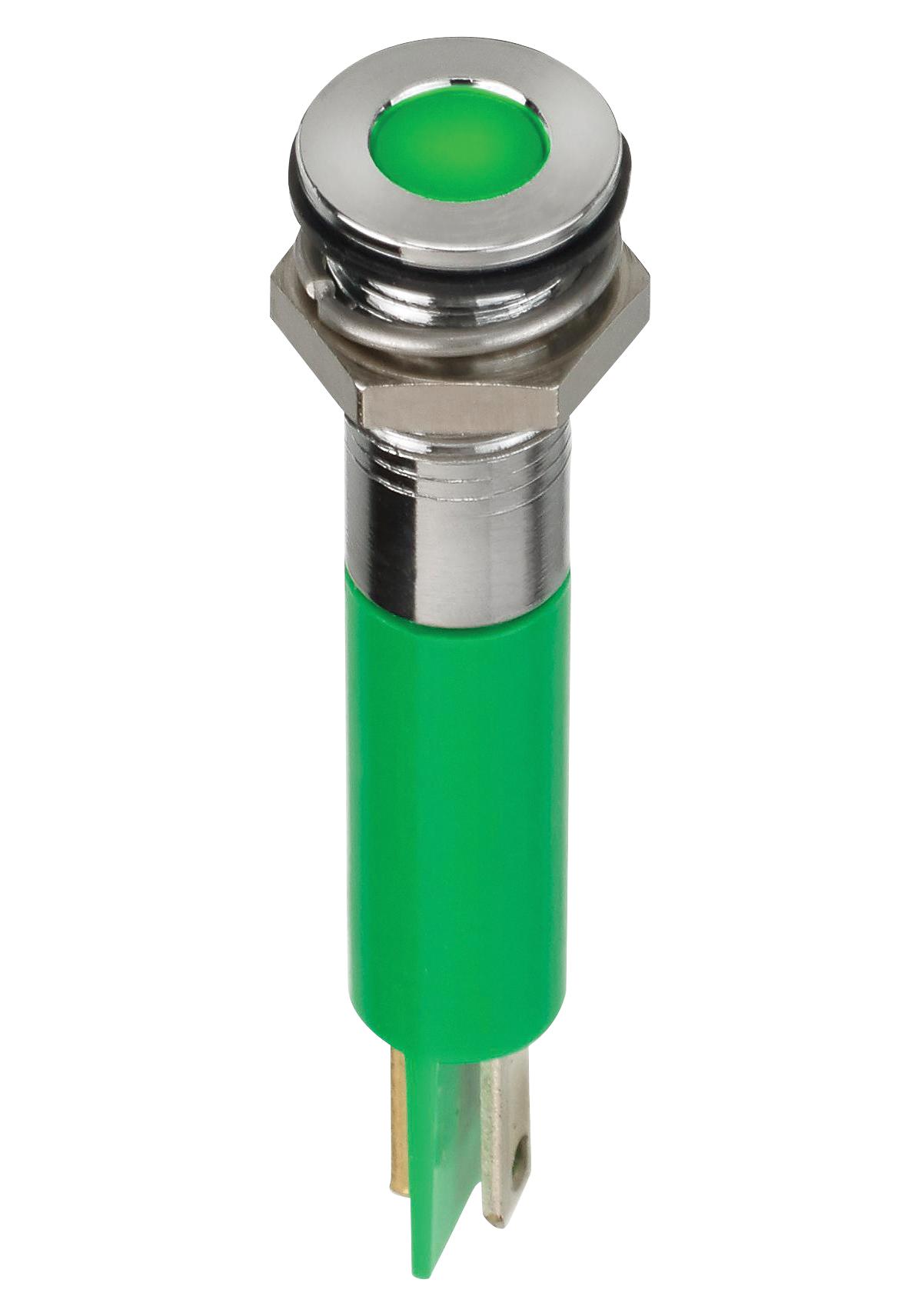

Apem Q22F1AGXXSG12AE Panel Mount LED Indicator
The Q22 series panel mount LED indicators feature 22mm diameter with options for prominent, recessed, and flush bezel styles. Available with standard or super bright diffused epoxy LEDs in multiple colors, they include plated brass bezels finished in chrome, black chrome, or satin grey, with optional stainless steel or anodized aluminum bezels. Termination options include solder lug, Faston, pins, or long wire leads. Sealed to IP67, these indicators operate at voltages from 3.3V to 253V DC/AC, with an expected lifespan of 100,000 hours, suitable for industrial and control applications requiring high visibility and durability.
Apem Q22F1AGXXSG12AE Panel Mount LED Indicator Specifications:
- Diameter: 22mm (0.866 inches)
- Bezel: plated brass, chrome, black chrome, satin grey, stainless steel, anodized aluminum
- Icon options: custom engraving, secret until lit
- Terminals: solder lug, Faston, pins, 200mm wires
- Sealing: IP67 enclosure rating
- Operating Voltage: 3.3V to 253V DC/AC (varies by model)
- Forward Voltage: 5.7V to 9.9V depending on color
- Luminous Intensity: 60mcd to 1,250mcd depending on LED type and color
- Viewing Angle: 30-100°
- Temperature Range: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Operating Current: 40mA max at various voltages
- Material: ABS plastic bezel, epoxy LED
- Maximum panel thickness: 12mm
- Certifications: UL Recognized, IP67 sealed
- Color Options: Red, Green, Yellow, Blue, White, Bi-color, Tri-color
- Additional options: custom marking, secret until lit, resistorless versions available
Buy the APEM Q22F1AGXXSG12AE – Reliable Industrial Panel Mount LED Indicators for Industrial Applications
Secure your industrial control systems today with the APEM Panel Mount LED Indicator. Designed for durability and clear visibility, this 22mm indicator offers multiple bezel styles, a wide voltage range from 3.3V to 253V, and an IP67 sealing rating for outdoor and harsh environments. With options for different colors, custom engraving, and high lifespan, it ensures reliable operation in demanding applications. Order online now for fast delivery and experience precision engineering tailored for industrial and control panel needs.
Get APEM Q22F1AGXXSG12AE today—built for precision, durability, and high visibility in industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q22F1AGXXSG12AE?
You can click on the BUY or RFQ button to purchase Q22F1AGXXSG12AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22F1AGXXSG12AE?
You can download the Q22F1AGXXSG12AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q22F1AGXXSG12AE?
Apem
