A Premier B2B Part Search

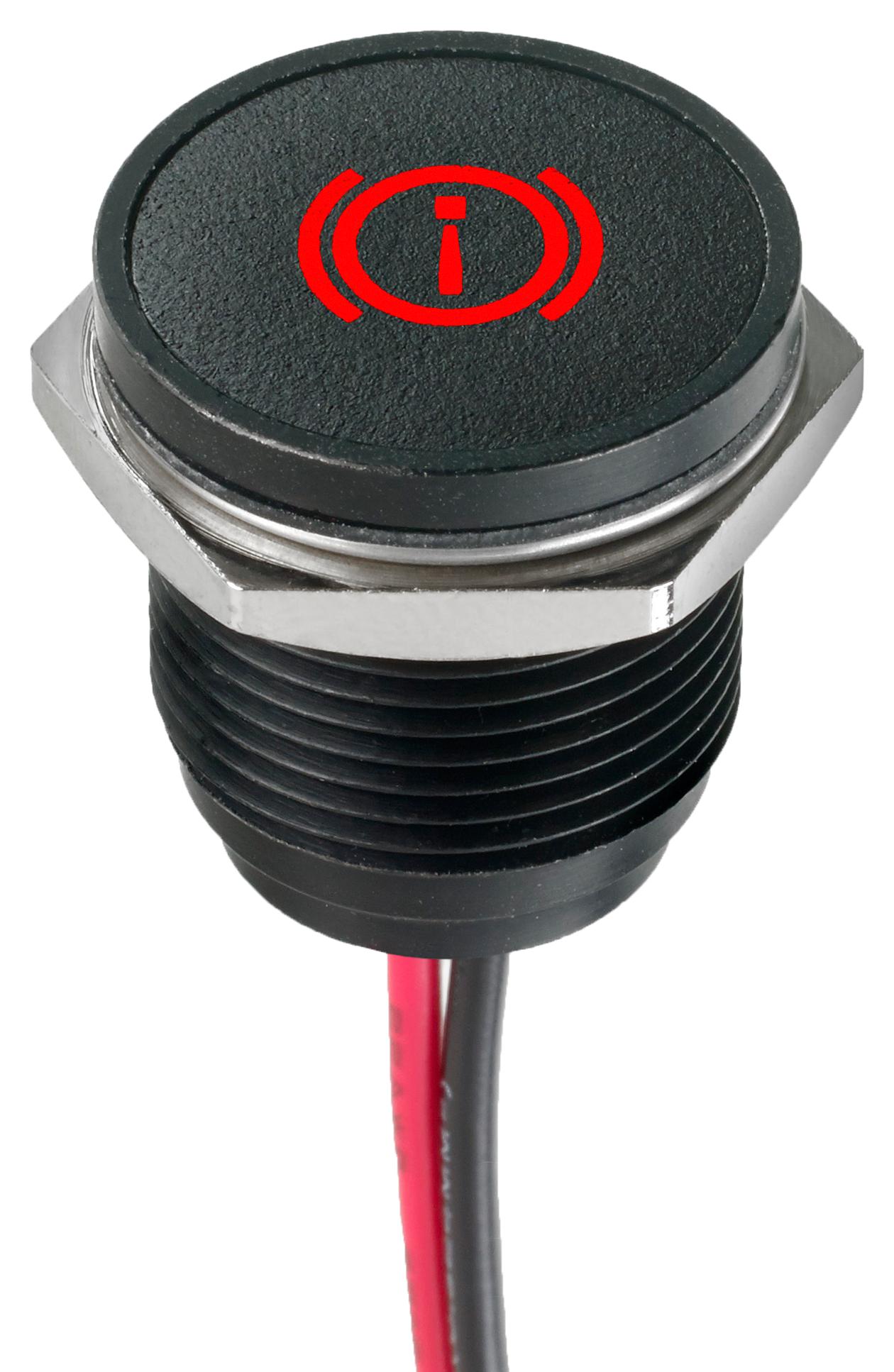

Apem Q16F5BXXHR12E3BU LED Indicator
The Q16 series panel mount LED indicators combine durability, high brightness, and versatile mounting options. Featuring secret until lit polycarbonate decals or custom engraving, they are available in multiple colors including RGB versions. Designed for industrial applications, they offer IP67 sealing, long life expectancy of 100,000 hours, and operating temperature ranges from -30°C to +85°C depending on body type. With prominent or recessed bezel options, they accommodate various electrical configurations, including resistor or resistorless models, and feature high-quality materials such as plated brass and molded polycarbonate for reliable performance.
Apem Q16F5BXXHR12E3BU LED Indicator Specifications:
- Size: 16 mm panel mount
- Bezel Material: Plated brass with bright chrome, black or satin grey finish
- Rear Body: Polycarbonate (water clear or customized decals)
- Mounting Hole Diameter: 16.00 +0.15/-0.0 mm
- Maximum Panel Thickness: 11 mm
- Sealing: IP67 (optional)
- Operating Temperature Range: -30°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5 V
- Electrical: Various LED voltages (e.g., 12V, 24V, 110V, 220V), options for resistor or resistorless operation
- LED Types: Standard, super bright, hyper bright, RGB, bi-color, tri-color
- Terminals: Solder lug, Faston, pins, or wires (200 mm length)
- Color Options: Red, Green, Yellow, Blue, White, Orange, RGB, bi-color, tri-color
- Connection: Anode (+VE), Cathode (-VE), with reverse polarity options for bi-color and tri-color
- Environmental Resistance: Sealed options available, corrosion-resistant materials
- Certifications: Not specified but suitable for industrial environments
Buy the Zealot Q16F5BXXHR12E3BU – Reliable LED Indicator for Industrial Applications
Order the Zealot Q16F5BXXHR12E3BU LED indicator online today and enhance your industrial control panels with this durable, high-brightness, customizable LED solution. Featuring secret until lit decals or custom engraving, IP67 sealing, and long lifespan, this 16mm panel mount indicator is suitable for various electrical and environmental conditions. Its versatile mounting options, including recessed and flush bezels, make it ideal for demanding industrial environments needing reliable visual status indication. Upgrade your machinery with this high-quality, energy-efficient LED indicator for optimal performance and visibility.
Buy Zealot Q16F5BXXHR12E3BU now and experience unmatched reliability, bright illumination, and versatile control panel integration.
Frequently Asked Questions
Where can I buy Apem Q16F5BXXHR12E3BU?
You can click on the BUY or RFQ button to purchase Q16F5BXXHR12E3BU from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16F5BXXHR12E3BU?
You can download the Q16F5BXXHR12E3BU datasheet or visit the Apem website for support.
Who is the manufacturer of Q16F5BXXHR12E3BU?
Apem
