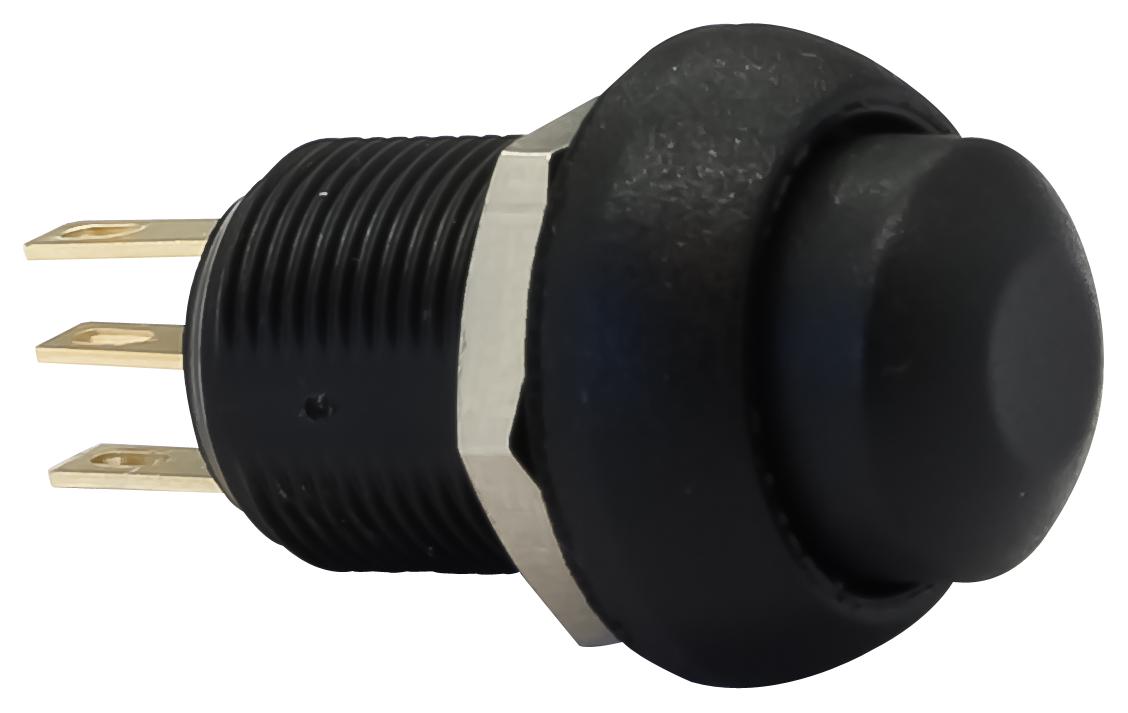

Apem IMR7Z422UL Industrial Sealed Pushbutton Switch
The IM series sealed snap-action pushbutton switches feature a bushing diameter of 12 mm, with momentary operation, tactile feedback, and an audible click. They are IP67 sealed for environmental protection and rated for a maximum current of 3A at 28 VDC, with a maximum dielectric strength of 500 Vrms. Made from polyamide materials, these switches feature silver, gold-plated contacts, and are suitable for panel mounting with various actuator options and colors. They are approved for 125/250 VAC applications, resistant to shock, salt spray, and temperature extremes, ensuring durability in harsh environments.
Apem IMR7Z422UL Industrial Sealed Pushbutton Switch Specifications:
- Bushing diameter: 12 mm
- Operation: Momentary toggle with tactile feedback and audible click
- Sealing: IP67 front panel sealing according to IEC 60529
- Electrical rating: Max. 3A 28 VDC, dielectric strength of 500 Vrms
- Contacts: Silver, gold plated
- Materials: Case and actuator made of polyamide 6/6 and polyamide 4/6
- Shock resistance: 50 g for 11 ms according to IEC 68-2-27
- Operating temperature: -40 to +85 °C (-40 to +185 °F)
- Panel thickness: 1.5 mm to 10 mm (0.059 to 0.394 inches)
- Total travel: 1.7 mm (+0.3 mm tolerance)
- Mechanical life: 1,000,000 cycles
- Electrical life: 25,000 cycles at full load
- Mounting hardware: Metal hex nut 14 mm across flats or plastic nut 17 mm across flats
- Agency approval: UL, CSA, File E83438
Buy the Buy IM series Switch Part Number IMR7Z422UL Online
Order the IM series sealed snap-action pushbutton switch IMR7Z422UL online today. This high-quality switch offers IP67 sealing, 3A at 28VDC, and gold-plated contacts for long-lasting durability. Ideal for control panels and industrial machinery, it features tactile feedback, an audible click, and is UL approved for safety. Its robust polyamide construction withstands shock, salt spray, and extreme temperatures, ensuring reliable performance in harsh environments. Secure your application with this versatile, easy-to-mount switch that guarantees dependable operation for your control needs.
Get IM series switch IMR7Z422UL today—designed for durability and reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem IMR7Z422UL?
You can click on the BUY or RFQ button to purchase IMR7Z422UL from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part IMR7Z422UL?
You can download the IMR7Z422UL datasheet or visit the Apem website for support.
Who is the manufacturer of IMR7Z422UL?
Apem
