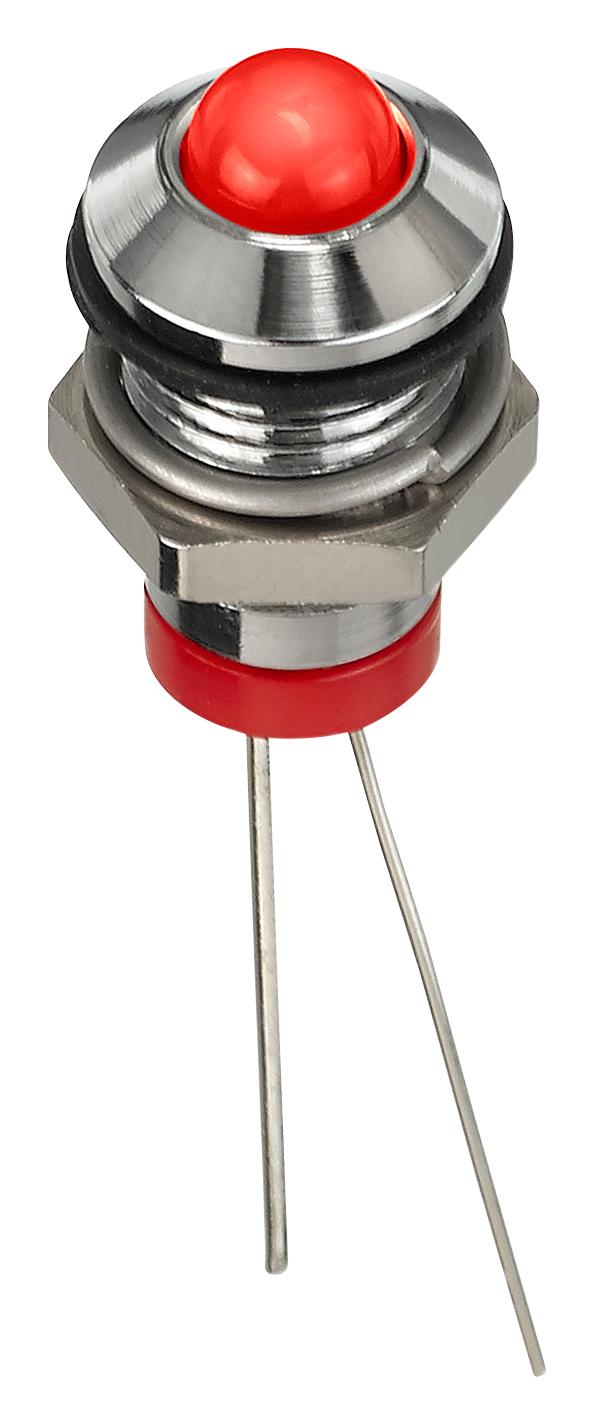

Apem Q8P6CXXR02E LED Indicator
The Q Series 8mm panel mount LED indicators are versatile, high-performance lights suitable for industrial and electronic applications. Featuring prominent, recessed, and flush bezel styles, these LEDs operate from 2VDC to 220VAC with a lifespan of approximately 100,000 hours. Available in various colors including red, green, yellow, blue, white, and orange, they deliver high luminous intensity with super bright and hyper-bright options. Equipped with different terminal configurations such as solder lug, pins, or 200mm wires, and an IP67 sealing option, these indicators are ideal for demanding environments, providing reliable visual status signals in multiple circuit voltages and mounting configurations.
Apem Q8P6CXXR02E LED Indicator Specifications:
- Size: 8mm Panel Mount
- Lens Diameter: 5mm
- Bezel Finish: Bright chrome, black chrome, satin grey
- Operating Voltage: 2VDC to 220VAC (various options available)
- Current: 20mA at specified voltage
- Luminous Intensity: 50 to 10,000mcd depending on LED type
- Viewing Angle: 30-100°
- Reverse Voltage Max: 5V
- Operating Temperature Range: -40 to +85°C
- IP67 sealing option available for waterproofing
- Terminals: solder lug, pins, or 200mm wire
- Lifespan: Approximately 100,000 hours
- Panel Cutout: Max 7mm thickness, 8.75mm diameter
- Connection Polarity: Gold Faston for anode, silver for cathode
- Soldering temperature: 270°C for 2 seconds
- Certifications: UL Recognized
Buy the APEM Series Q8 LED: LED Indicator Q8P6CXXR02E
Order the APEM Q Series LED indicator today to ensure reliable, long-lasting visual signals for your equipment. With various colors, terminal configurations, and IP67 sealing, these 8mm indicators are perfect for industrial panels, automation, and status indication. Designed for high brightness and durability, they are suitable for harsh environments and extended use. Purchase online now to enhance your control systems with quality LEDs that deliver clear and effective visual alerts in any operational setting.
Get APEM Q8P6CXXR02E LED indicator today—built for durability and visibility in industrial environments.
