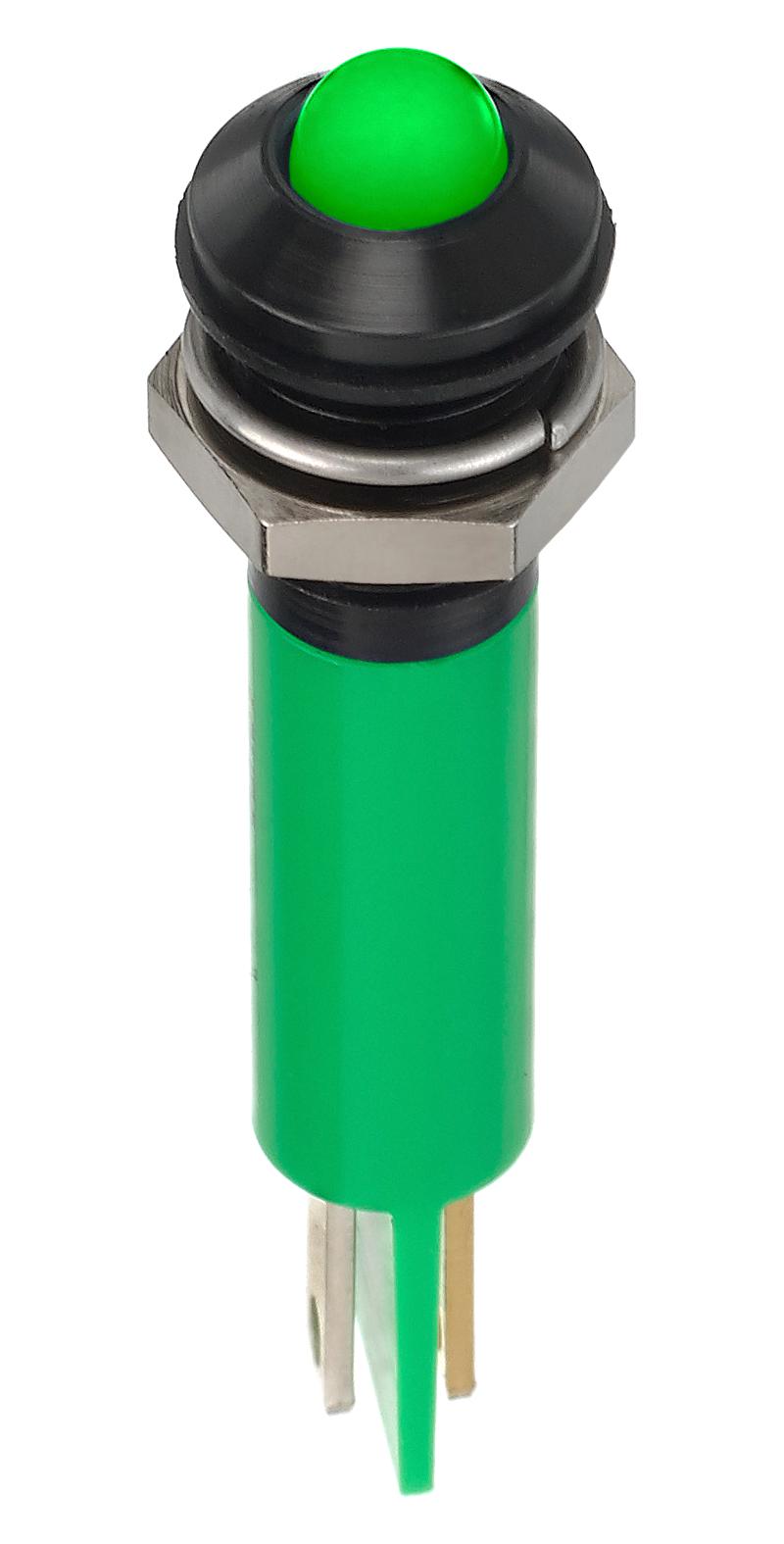

Apem Q8P1BXXG02E Panel Mount LED Indicators
The Q8 series panel mount LED indicators feature a rugged design with 8 mm diameter, available in prominent, recessed, and flush bezel styles. These LEDs have water clear or colored diffused epoxy lenses and bright or super-bright intensities. Designed for industrial applications, they support multiple terminal and mounting options, including solder lug, fastons, and pin connections, with sealing options up to IP67. Operating at voltages from 1.8 V to 110 VAC/DC, they offer long life expectancy of 100,000 hours, suitable for control panels, signaling, or automation systems, with high reliability and environmental resistance.
Apem Q8P1BXXG02E Panel Mount LED Indicators Specifications:
- Diameter: 8 mm
- Lens Types: Water clear, colored diffused epoxy
- Bezel Materials: Plated brass finished in bright chrome, black, satin grey, or stainless steel 316L
- Sealing: IP67 option available
- Operating Voltage: 1.8 V to 110 V AC/DC
- Current: Max 20 mA
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100° (dependent on model)
- Panel Thickness: Max 7 mm
- Mounting: Recessed, flush, prominent styles with solder lug, fastons, or pins
- Operating Temperatures: -40°C to +85°C depending on body style
- Material: Molded polycarbonate rear body, chromed or stainless steel bezel
- Reverse Voltage: Max 5 V
- Terminal Options: Solder lug, fastons, pins
- Environmental Resistance: Sealed options with IP67, suitable for harsh environments
Buy the APEM Series Q8 LED Indicators Reliable Control Panel Components
Enhance your control panels with our Q8 series LED indicators, featuring a robust 8 mm diameter, IP67 sealing, high luminous intensity, and versatile mounting options. With a lifespan of 100,000 hours, these indicators provide reliable visual signaling in harsh environments, supporting voltages from 1.8 V to 110 VAC/DC. Designed for industrial automation and control systems, they assure durability, safety, and brightness. Shop online now to get these high-quality, easy-to-install indicators delivered directly to your workspace, improving operational efficiency.
Get Q8 series LED indicators today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q8P1BXXG02E?
You can click on the BUY or RFQ button to purchase Q8P1BXXG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P1BXXG02E?
You can download the Q8P1BXXG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P1BXXG02E?
Apem
