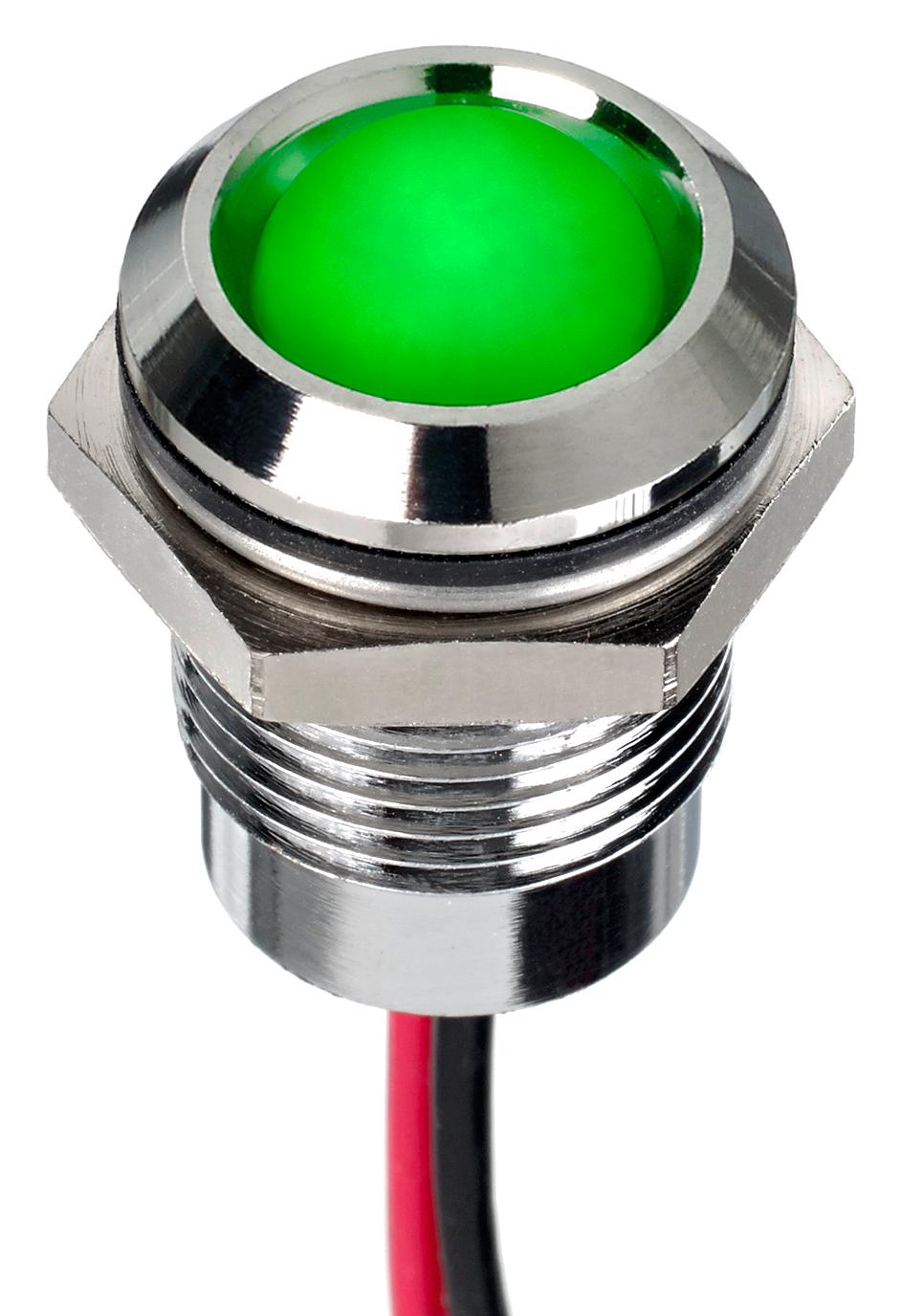

Apem Q16P5CZZRGB24ECA Panel Mount LED Indicator
The Q16 series panel mount LED indicators feature a 16 mm diameter, with options for diffused or water-clear epoxy lenses, high-brightness LEDs, and multiple color configurations including RGB and bi-color. They are rated IP67 for sealing, operate within -40°C to +85°C, and are suitable for panel thicknesses up to 11mm. These indicators have a long life expectancy of 100,000 hours, with sturdy plated brass bezels finished in chrome, black, or satin grey, and offer various mounting and wiring configurations for reliable performance in demanding environments.
Apem Q16P5CZZRGB24ECA Panel Mount LED Indicator Specifications:
- Diameter: 16 mm
- Lens Types: 10 mm diffused epoxy or water-clear
- Operating Temperature Range: -40°C to +85°C
- Sealing: IP67 (optional)
- Material: Plated brass bezel finished in chrome, black, or satin grey, polycarbonate rear body
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Maximum Panel Thickness: 11 mm
- Mounting: 24° bezel angle, various mounting options including flush, recessed, and prominent bezels
- Electrical: Standard and hyperbright LED intensities, forward voltage ranges from 2V to 22V depending on color and brightness
- Current: Typically 20 mA at specified voltages, with resistor supply recommended for specific currents
- LED Types: Super bright, hyper bright, RGB, bi-color, tricolor
Buy the Buy Industry LED Indicator Part Number Q16P5CZZRGB24ECA Online
Purchase the high-quality panel mount LED indicator Q16 series online today. Designed with durable materials and IP67 sealing, these indicators provide clear, bright illumination in various colors such as RGB, bi-color, and tricolor. Suitable for demanding industrial environments, they operate across a wide temperature range and feature long-lasting LEDs with an expected lifespan of 100,000 hours. Easy to install with multiple mounting options, these indicators improve visibility and operational safety in control panels and automation systems. Order now for reliable performance!
Order your APEM Series Q16P5CZZRGB24ECA today and give your industrial projects the reliable, high-brightness LED indication they need.
Frequently Asked Questions
Where can I buy Apem Q16P5CZZRGB24ECA?
You can click on the BUY or RFQ button to purchase Q16P5CZZRGB24ECA from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16P5CZZRGB24ECA?
You can download the Q16P5CZZRGB24ECA datasheet or visit the Apem website for support.
Who is the manufacturer of Q16P5CZZRGB24ECA?
Apem
