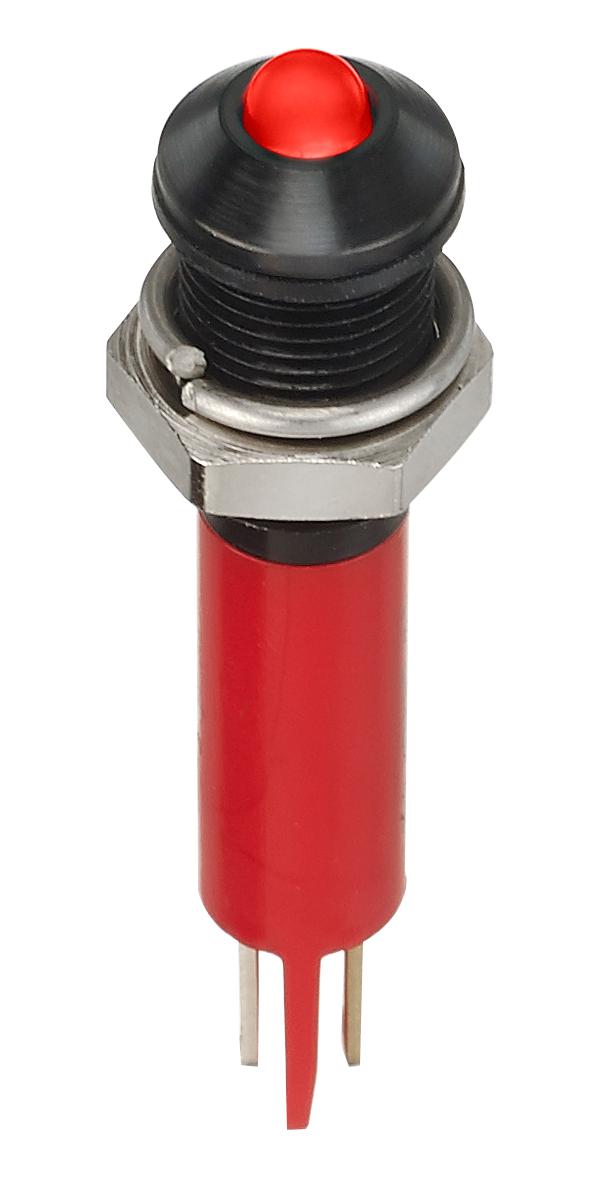

Apem Q6P1BXXHR12E Panel Mount LED Indicator
The Q6 series panel mount LED indicators feature 6 mm size with various bezel styles such as prominent, recessed, and flush. They utilize super bright LEDs in multiple colors including red, green, yellow, blue, white, and orange, with optional bi-color versions. These indicators are available with solder lug terminals, pin, or wire terminations of different lengths. Designed for industrial applications, they offer high luminous intensity, long life expectancy of 100,000 hours, IP67 sealing where specified, and operate within a temperature range of -40°C to +85°C depending on the body. Material options include plated brass bezels in chrome, black, satin grey, and molded polycarbonate bodies for durability.
Apem Q6P1BXXHR12E Panel Mount LED Indicator Specifications:
- Size: 6 mm panel mount
- Bezel styles: Prominent, recessed, flush
- LED colors: Red, green, yellow, blue, white, orange, bi-color
- LED intensity: Super Bright, Hyper Bright options available
- Voltage range: 1.8 to 33 VDC, 12VDC, 24VDC, 28VDC with user-supplied resistor
- Viewing angle: 30-100°
- Life expectancy: 100,000 hours
- Material: Plated brass bezel, molded polycarbonate body
- Sealing: IP67 option available, unsealed per model
- Operating temperature: -40°C to +85°C depending on body
- Max panel thickness: 7 mm
- Terminals: Solder lug, pins, or wires, length options available
- Mounting hole: 6 mm
- Reverse voltage max: 5 V
Buy the Buy Industrial Equipment Panel Mount LED Indicators Part Number Q6P1BXXHR12E Online
Enhance your control panels with the Q6 series 6mm LED indicators. These reliable, bright LEDs in various colors and styles ensure clear signaling with long lifespan. Available with multiple terminal options and IP67 sealing, they suit industrial settings demanding durability and long-term performance. Easy to install with a 6 mm mounting hole, these indicators operate within a broad voltage range and offer excellent visibility at diverse angles. Perfect for automation, control systems, and machinery, they deliver consistent, high-quality illumination for critical indications.
Buy Q6 series panel mount LED indicators now and enjoy high brightness, durability, and versatile mounting options for your industrial applications.
Frequently Asked Questions
Where can I buy Apem Q6P1BXXHR12E?
You can click on the BUY or RFQ button to purchase Q6P1BXXHR12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P1BXXHR12E?
You can download the Q6P1BXXHR12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P1BXXHR12E?
Apem
