Apem Q22F5AGXXSG24AE Panel Mount LED Indicator
The Q22 Series panel mount LED indicators are 22mm diameter devices designed for industrial applications. Featuring various bezel styles including bright chrome, black chrome, satin grey, and stainless steel options, these LEDs offer multiple illumination colors such as red, green, yellow, blue, and white, along with bi-color and tri-color configurations. They are suitable for panel sealing up to IP67, with solder lug, faston terminals, pins, or wire terminations. Operating at voltages from 3.3V to 253VAC, they provide long life expectancy of 100,000 hours and operate effectively within -40°C to +85°C temperature range. These indicators ensure high visibility with diffused epoxy or super bright LEDs, and are ideal for status indication and control panels in industrial environments.
Apem Q22F5AGXXSG24AE Panel Mount LED Indicator Specifications:
- Diameter: 22mm
- Bezel styles: Bright chrome, black chrome, satin grey, stainless steel, anodized aluminum
- Sealing: IP67 (optional)
- Lenses: Diffused epoxy and super bright LEDs
- LED Colors: Red, Green, Yellow, Blue, White, Bi-color, Tri-color
- Voltage Range: 3.3V to 253VAC (varies by model)
- Operating Current: Max 40mA
- Voltage Tolerance: ±10%
- Viewing Angle: 30-100°
- Temperature Range: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Terminations: Solder lug, faston, pins, wire (200mm)
- Material: ABS plastic bezel, polycarbonate body, plated brass bezel
- Approvals: UL Recognized, IP67 sealing option available
- Mounting: Panel cutout 22mm, various bezel styles for flush, recessed, prominent mounting
- Torque: 100cNm

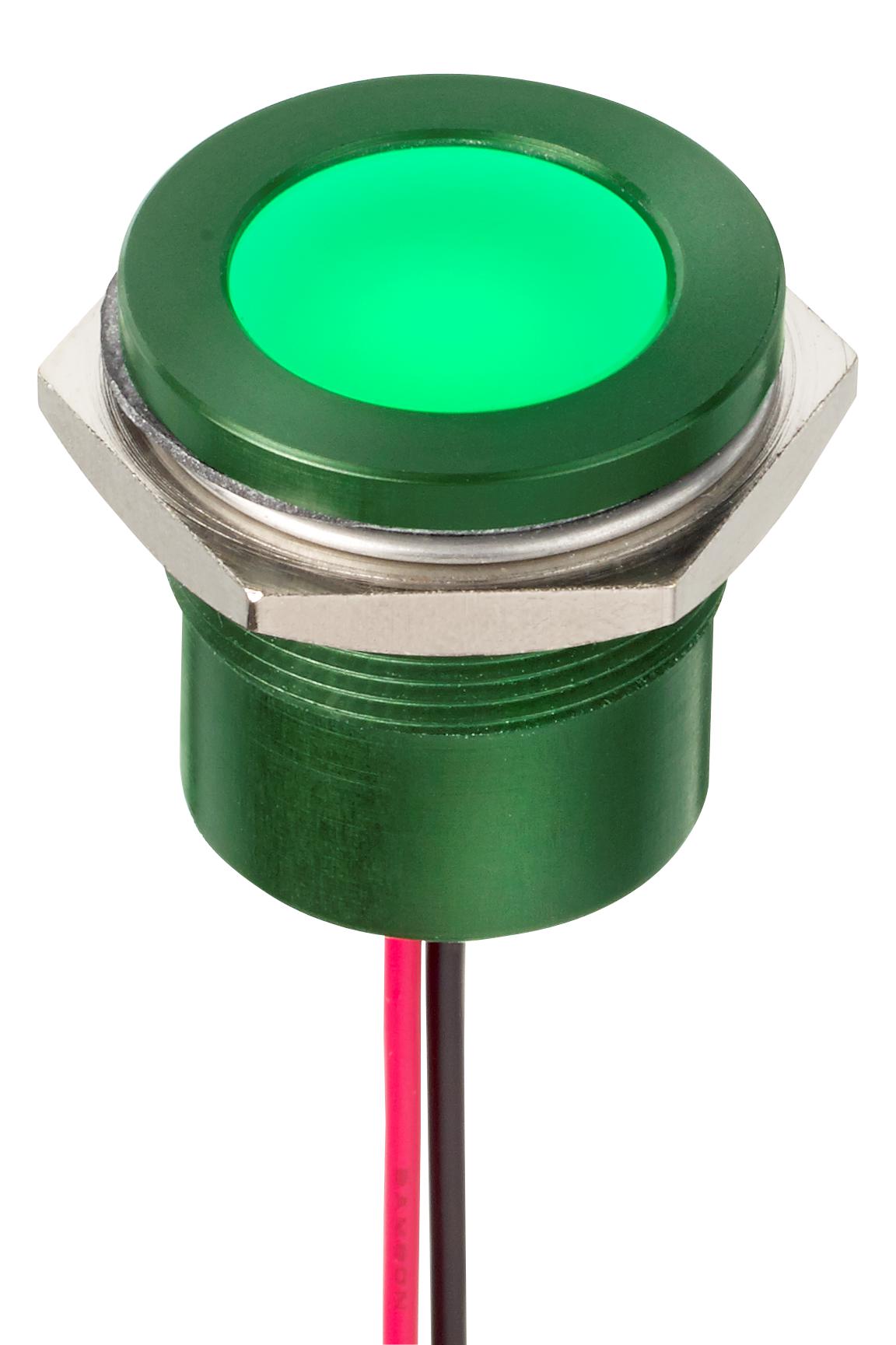

Buy the Buy APEM LED Indicator Part Number Q22F5AGXXSG24AE Online
Discover the high-quality APEM panel mount LED indicator with 22mm diameter, featuring multiple colors, bezel finishes, and sealing options for demanding industrial environments. Easy to install with various termination options including solder lug, faston, pins, or wire, these LEDs operate across a wide voltage range from 3.3V to 253VAC, ensuring long service life of 100,000 hours. Their robust design and IP67 sealing make them perfect for control panels requiring high visibility and durability in harsh conditions. Order online now for fast delivery and exceptional performance.
Buy APEM Q22F5AGXXSG24AE now and experience unmatched reliability and industrial-grade performance for your control panels.
Frequently Asked Questions
Where can I buy Apem Q22F5AGXXSG24AE?
You can click on the BUY or RFQ button to purchase Q22F5AGXXSG24AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22F5AGXXSG24AE?
You can download the Q22F5AGXXSG24AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q22F5AGXXSG24AE?
Apem
