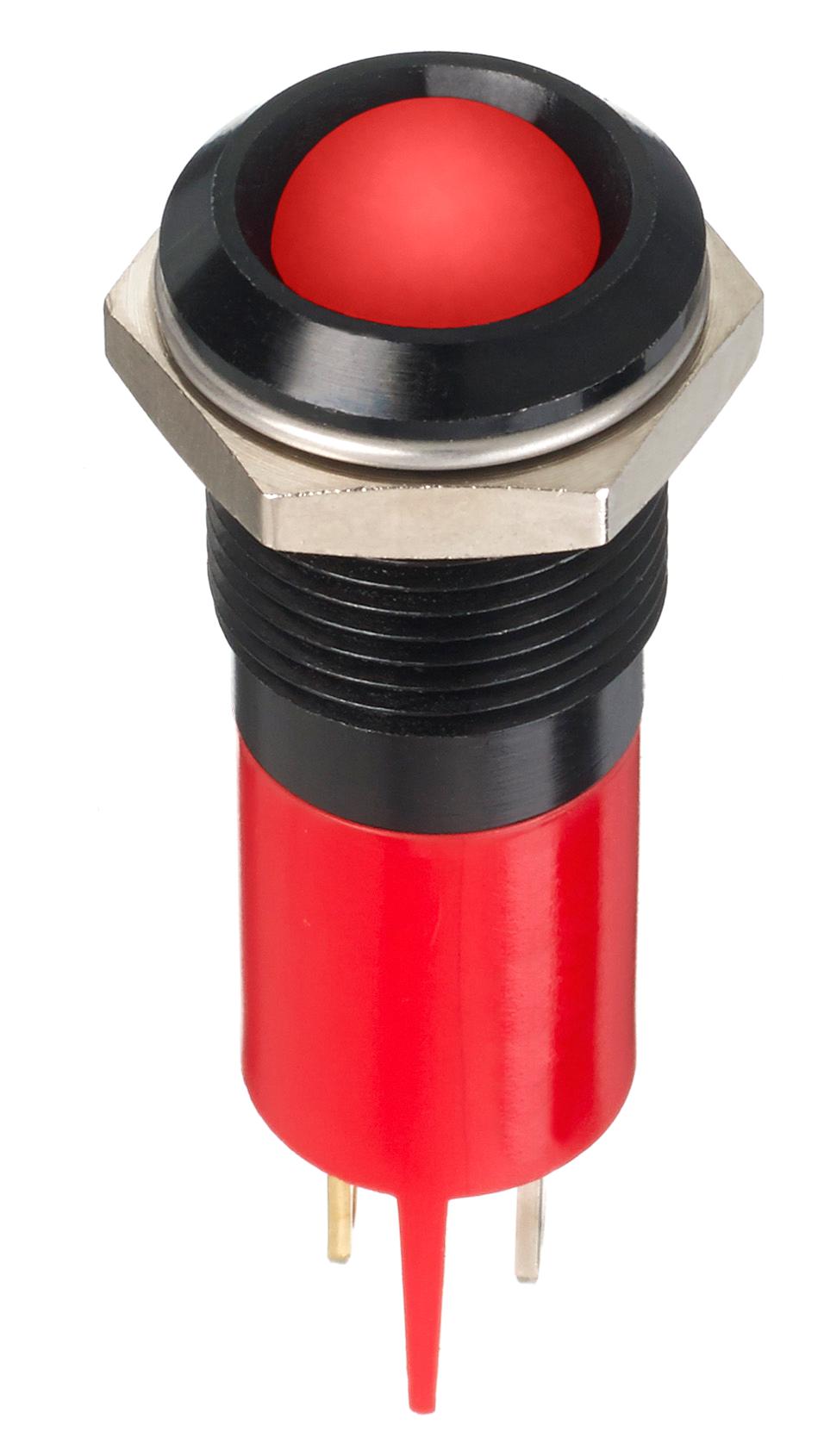

Apem Q14P1BXXR02E Panel Mount LED Indicator
The Q14 series panel mount LED indicators feature 14 mm diameter with a water-resistant IP67 sealing option, robust construction including plated brass bezels finished in chrome, and clear or diffused epoxy lenses in various colors like red, green, yellow, blue, and white. Designed for reliable operation in industrial environments, these indicators boast a lifespan of 100,000 hours, operating temperatures from -30°C to +85°C depending on body type, and multiple mounting and termination options including solder lug, faston, pins, or wire. They support various voltage ratings for AC/DC and feature high brightness and wide viewing angles for effective status indication.
Apem Q14P1BXXR02E Panel Mount LED Indicator Specifications:
- Diameter: 14 mm
- Lens: 10 mm diffused epoxy or water clear
- Sealing: IP67 option available
- Operating Temperature: -30°C to +85°C depending on body type
- Lifespan: 100,000 hours
- Viewing Angle: 30-100°
- Bezel Material: Plated brass, chrome finish
- Body Material: Moulded polycarbonate or epoxy
- Max Panel Thickness: 11 mm
- Reverse Voltage: 5 V
- Torque: 75 cNm
- Voltage Ratings: 1.8 to 33 VDC, 110/220 VAC (with resistor), other voltages available
- LED Types: Standard, super bright, hyper bright, RGB, bi-color, tri-color
- Terminals: Solder lug, faston, pins, or wire (200 mm long)
- Environmental: Operating & storage temperatures from -40°C to +85°C, IP67 sealing option
- Color Options: Red, green, yellow, blue, white, orange, RGB, bi-color, tri-color
- Mounting: Front panel mount with prominent or recessed bezel styles
Buy the Brand Q14 – Reliable LED Indicators for Industrial Applications
Order Q14 series LED indicators online today to ensure durable, reliable, and high-visibility status indication in industrial and commercial applications. Featuring IP67 sealing options, multiple mounting styles, and a variety of colors and brightness levels, these indicators provide outstanding performance in harsh environments. Designed for easy installation and long operational life, they support multiple voltage ratings including AC and DC options. Whether you need standard, super bright, or RGB LEDs, purchase online now for fast delivery, competitive prices, and trusted quality for your automation and control systems.
Get Q14 series LED indicators today—built for industrial environments with long-lasting durability and bright visual signaling.
Frequently Asked Questions
Where can I buy Apem Q14P1BXXR02E?
You can click on the BUY or RFQ button to purchase Q14P1BXXR02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1BXXR02E?
You can download the Q14P1BXXR02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1BXXR02E?
Apem
