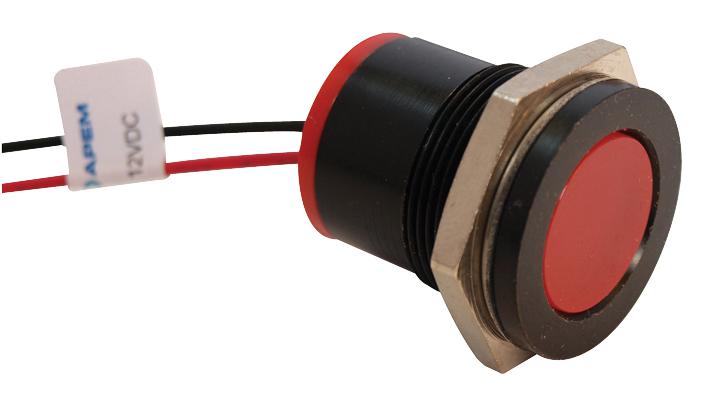

Apem Q22F7BXXR12E Panel Mount LED Indicator
The Q-SERIES 22mm panel mounting LED indicator provides high visibility with bright, diffused epoxy lenses in red, green, yellow, blue, white, and bi-color options. Features include various bezel finishes like bright chrome, satin grey, and black plastic, along with prominent, flush, and IP67 sealed variants. Suitable for multiple voltages from 5.5VDC to 230VAC, it includes quick-connect terminals, fastons, or wire terminations. Designed for robust operation with a lifespan of 100,000 hours and operating temperature from -40°C to +85°C, ensuring durability in industrial environments.
Apem Q22F7BXXR12E Panel Mount LED Indicator Specifications:
- Diameter: 22mm
- Lens: Coloured diffused epoxy
- Bezel Finishes: Bright chrome, satin grey, black plastic, gold ABS
- Mounting: Panel cutout M22x1.01 with fixing nut and spring washer
- Voltage Range: 5.5VDC to 230VAC
- Terminations: 2.8 x 0.8 terminals, pins, or 200mm wire
- Ingress Protection: IP67 option available
- Operating Voltage: 5.0 to 6.0VDC, 10.8 to 13.2VDC, 21.6 to 26.4VDC, 25.2 to 30.8VDC, 99 to 121VAC, 207 to 253VAC
- Operating Current: 40mA on DC models, 3-5mA on AC models
- Forward Voltage: 3.6V to 9V depending on color
- Luminous Intensity: 60mcd to 1,780mcd
- Viewing Angle: 100°
- Life Expectancy: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Certifications: UL Recognised Component
- Max Reverse Voltage: 5V
Buy the Buy Apem Q-SERIES 22mm Panel Mounting LED Indicator Part Number Q22F7BXXR12E Online
Enhance your industrial control panels with the Apem Q-SERIES 22mm LED Indicator. Featuring bright diffused epoxy lenses in multiple colors, various bezel options, and voltages from 5.5VDC to 230VAC. Designed for durability, it offers IP67 sealing, a lifespan of 100,000 hours, and operating temperature from -40°C to +85°C. Easy to install with panel cutout M22x1.01, quick terminals, and corrosion-resistant finishes, this indicator provides reliable, high-visibility signaling in demanding environments. Buy online today for fast delivery.
Order your Apem Series Q22F7BXXR12E LED Indicator today and enhance your industrial panels with reliable, bright illumination for dependable operation.
Frequently Asked Questions
Where can I buy Apem Q22F7BXXR12E?
You can click on the BUY or RFQ button to purchase Q22F7BXXR12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22F7BXXR12E?
You can download the Q22F7BXXR12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22F7BXXR12E?
Apem
