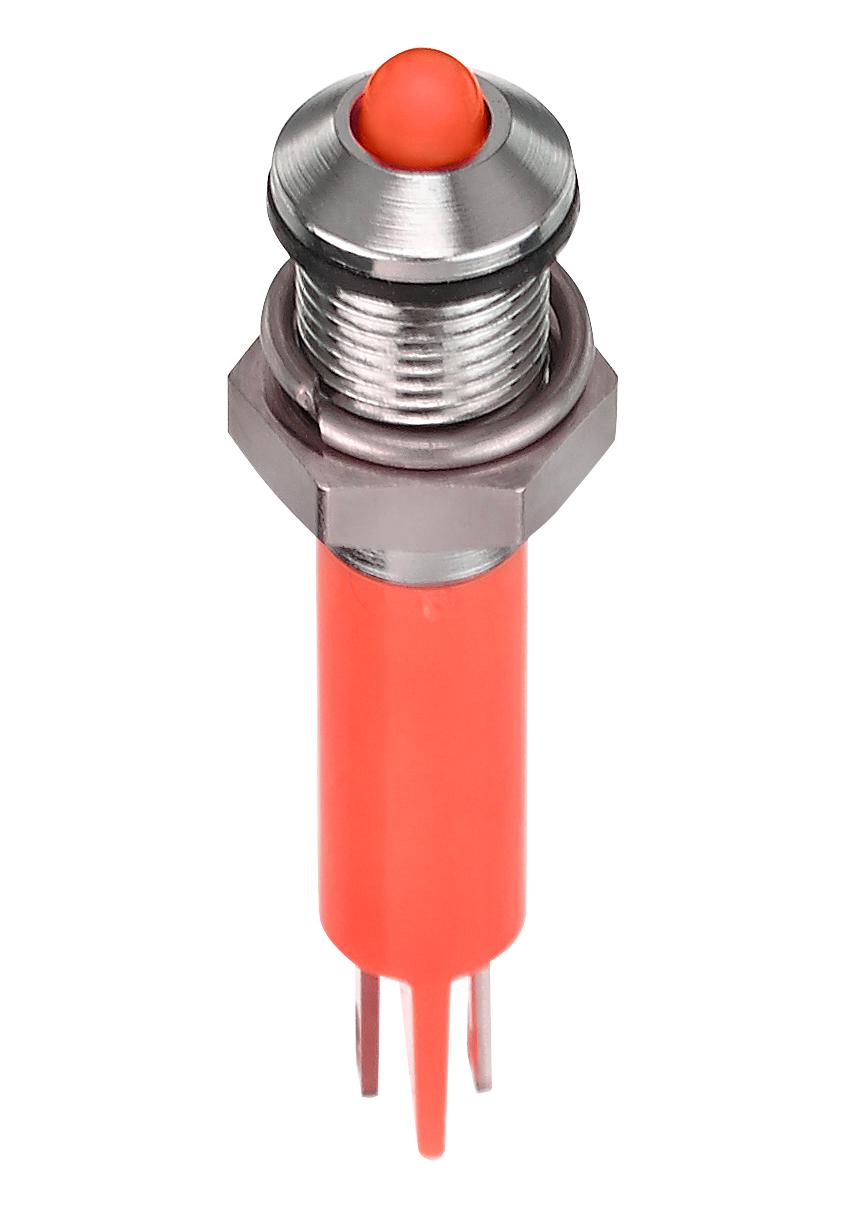

Apem Q6P1CXXSR12 6mm LED Indicator
A 6mm diameter panel-mounted LED indicator suitable for electrical panels, providing bright visual signals with durable construction. It features various mounting options like recessed, flush, and prominent bezels, with a choice of water-clear or diffused epoxy lenses. Constructed with plated brass bezel in chrome, black, or satin grey, and molded polycarbonate rear body, it supports IP67 sealing for harsh environments. It operates within -40°C to +85°C, has a life expectancy of 100,000 hours, and offers multiple voltage and color options, making it ideal for control panels and status indicators.
Apem Q6P1CXXSR12 6mm LED Indicator Specifications:
- Diameter: 6.00 mm with tolerance ±0.15 mm
- Material: Plated brass bezel in bright chrome, black or satin grey, molded polycarbonate rear body
- Sealing: IP67 (optional)
- Operating Temperature Range: -40 °C to +85 °C, Storage -30 °C to +65 °C
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100° depending on model
- Panel Thickness: Max 7mm
- Voltage Range: 1.8 to 33 VDC, 12 V, 24 V, 28 V options
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- LED Brightness: Super Bright, Hyper Bright
- Mounting: Solder Lug, Pins, Wires, Short body Wires, Short body Pins
- Finish: Bright Chrome, Black, Satin Grey
- Operating Current: 20 mA typical at specified voltages
- Certification: Suitable for industrial use with optional IP67 sealing
Buy the Amphenol Series Q6 LED Indicator: Q6P1CXXSR12
Purchase the 6mm LED indicator online today for high-quality visual alerts in control and instrumentation panels. Designed for harsh environments with IP67 sealing, it features a variety of bezel styles, colors, and brightness levels such as super bright and hyper bright LEDs. Its rugged construction includes plated brass bezels and molded polycarbonate rear bodies, with multiple mounting options like solder lug, pins, or wires. Ensure reliable operation from -40°C to +85°C with a lifespan of 100,000 hours, making it ideal for industrial applications and detailed panel indication.
Get Amphenol Q6P1CXXSR12 today—built for durability, visibility, and reliable panel indication.
Frequently Asked Questions
Where can I buy Apem Q6P1CXXSR12?
You can click on the BUY or RFQ button to purchase Q6P1CXXSR12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P1CXXSR12?
You can download the Q6P1CXXSR12 datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P1CXXSR12?
Apem
