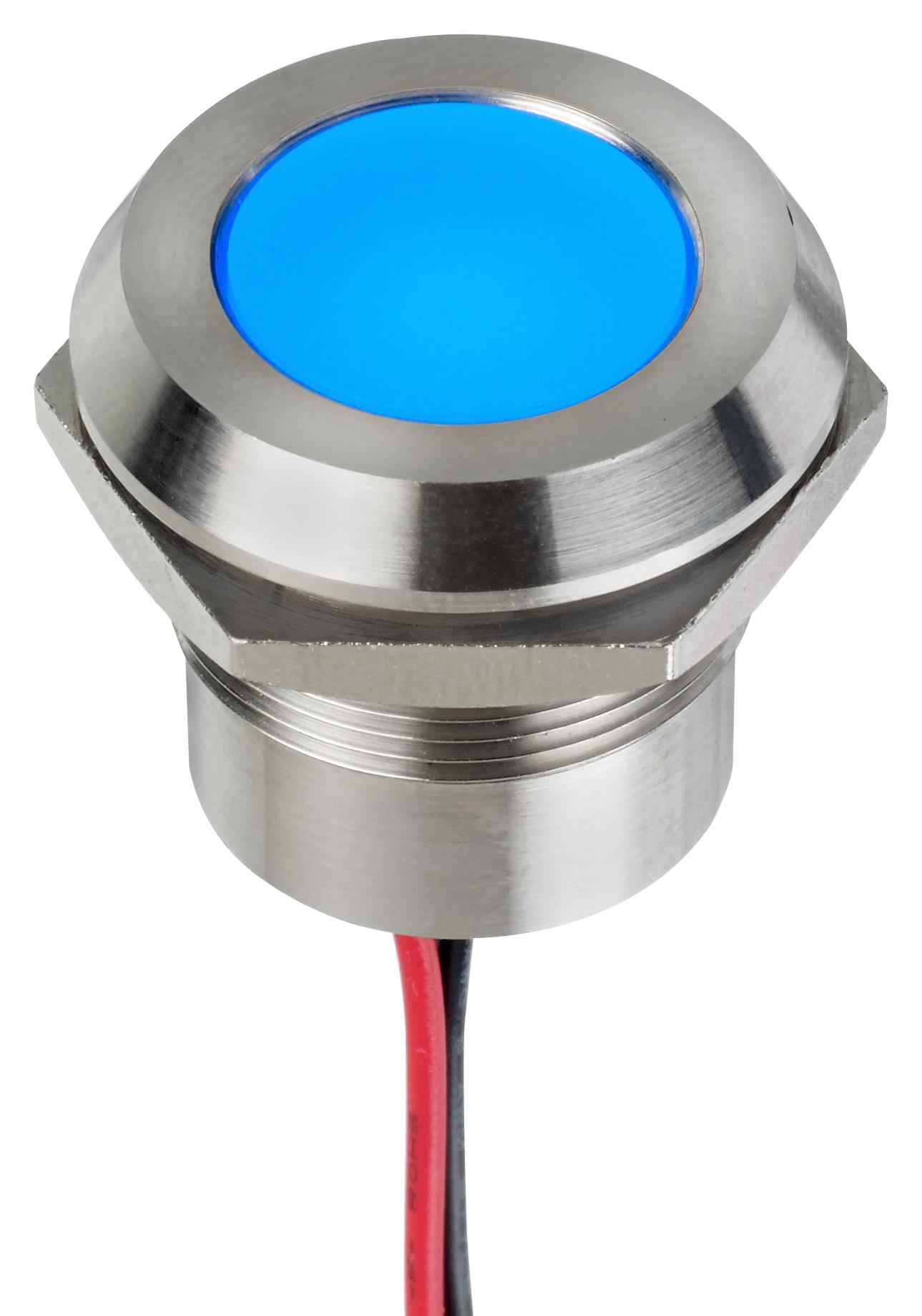

Apem Q22Y5SXXB220E LED Indicator
The Q22 series are 22 mm panel mount LED indicators designed for durability and visibility in various environments. They feature options such as diffused epoxy lenses, super bright LEDs, and RGB configurations, with or without sealing up to IP67. These indicators are suitable for applications requiring distinctive illumination, multiple wiring terminations, and custom engraving. They operate across a wide voltage range from 3.3V to 235V, with an expected lifespan of 100,000 hours, making them ideal for industrial and automotive uses requiring high reliability and long-term performance.
Apem Q22Y5SXXB220E LED Indicator Specifications:
- Diameter: 22 mm
- Lens Material: Diffused epoxy or super bright LEDs
- Sealing Options: Unsealed or IP67 for water resistance
- Operating Voltage: 3.3V to 235V DC/AC (various options)
- Current: Max 40 mA at specified voltages
- Lifespan: 100,000 hours
- Viewing Angle: 30-100° depending on model
- Materials: Plated brass bezel, polycarbonate rear body
- Mounting: Panel thickness up to 12 mm, flush or prominent bezel styles
- Bezel Finish: Bright chrome, black, satin grey, or anodized
- Connection: Solder lug, faston, pins, or rear wires
- LED Types: Standard, super bright, RGB, bi-color, tri-color
- Environmental: Operates from -40°C to +85°C, sealed options available
Buy the APEM Series Q22 LED Indicators: Q22Y5SXXB220E
Order the APEM LED indicator Q22Y5SXXB220E online today to enhance your industrial or automotive equipment with high-quality, durable, and bright 22 mm panel mount indicators. Featuring multiple LED options, sealing, and various terminal configurations, these indicators are built for long-lasting performance in harsh environments. Take advantage of our fast shipping and excellent customer support. Secure your order now to ensure your devices operate with clear, visible signaling and maximum reliability in all conditions.
Buy APEM Q22Y5SXXB220E now and experience unmatched reliability, brightness, and versatile wiring options for demanding industrial applications.
Frequently Asked Questions
Where can I buy Apem Q22Y5SXXB220E?
You can click on the BUY or RFQ button to purchase Q22Y5SXXB220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SXXB220E?
You can download the Q22Y5SXXB220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SXXB220E?
Apem
