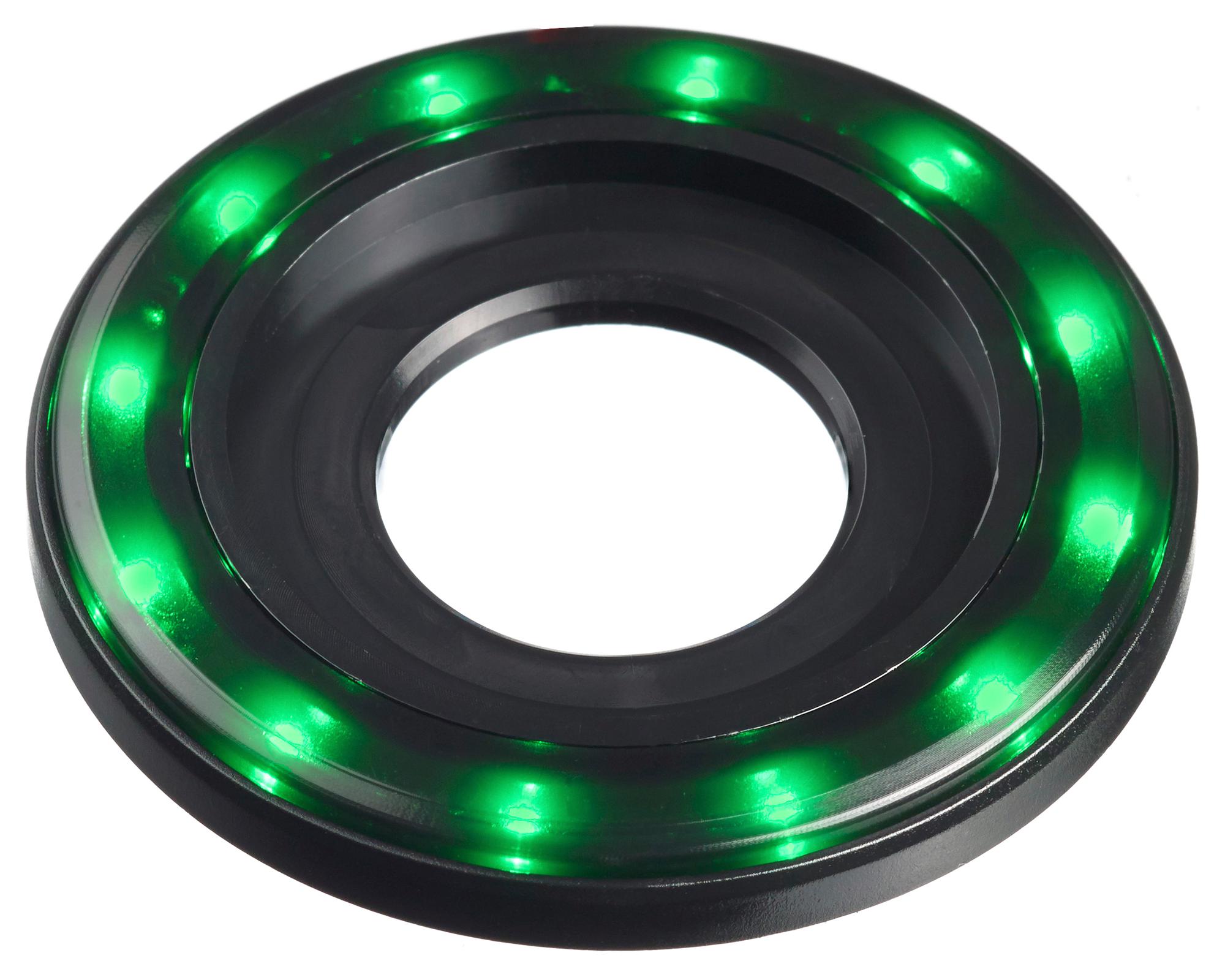

Apem QH22L27RGBC LED Indicator
The Halo LED illumination series features versatile, sealed LED indicators designed for industrial panels. Available in 16, 19, and 22 mm sizes, these indicators come with single, dual, and RGB color options, suitable for control panels and emergency stop switches. They feature IP67 sealing for environmental protection, are made with PC bodies and lenses, and have long life expectancy of 50,000 hours. Compatible with 12-24V DC power and equipped with UL1061 26 AWG wiring for reliable connections, these LED indicators provide high durability and visibility in demanding environments.
Apem QH22L27RGBC LED Indicator Specifications:
- Series: QH series
- Sizes: 16 mm, 19 mm, 22 mm, 22 mm oversized
- Color Options: Single, dual, RGB, red, green, yellow, blue, white, mixed
- Sealing: IP67 per EN60529:1992
- Body Material: PC
- Lens Material: PC
- Wire Termination: 200 mm, 26 AWG UL1061
- Operating Voltage: 12 VDC to 24 VDC, max reverse voltage 5 VDC
- Operating Current: 42 mA to 20 mA
- Luminous Intensity: Red 120 med, Green 350 med, Yellow 90 med, Blue 90 med, White 350 med at 20 mA
- Life Expectancy: 50,000 hours
- Operating Temperature: -30°C to +70°C
- Mounting: Panel cutout sizes: 16mm, 19mm, 22mm, oversized 22mm
- Environmental Standards: EMC EN61000-4-3, EN61000-6-4, electrostatic discharge EN61000-4-2
Buy the ACME QH22L – Reliable LED Indicator for Industrial Applications
Enhance your industrial control panels with the robust and versatile LED indicators from the QH series. Designed for durability with IP67 sealing and long-lasting LED lifespan, these indicators provide clear visibility and reliable operation in demanding environments. Available in multiple sizes and colors, including RGB options for dynamic signaling, they are suitable for various applications such as emergency stops and control panels. Easy to install with 200 mm UL1061 wiring, these indicators ensure dependable performance for industrial settings.
Buy ACME QH22L now and experience unmatched reliability and performance in control panel illumination.
Frequently Asked Questions
Where can I buy Apem QH22L27RGBC?
You can click on the BUY or RFQ button to purchase QH22L27RGBC from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QH22L27RGBC?
You can download the QH22L27RGBC datasheet or visit the Apem website for support.
Who is the manufacturer of QH22L27RGBC?
Apem
