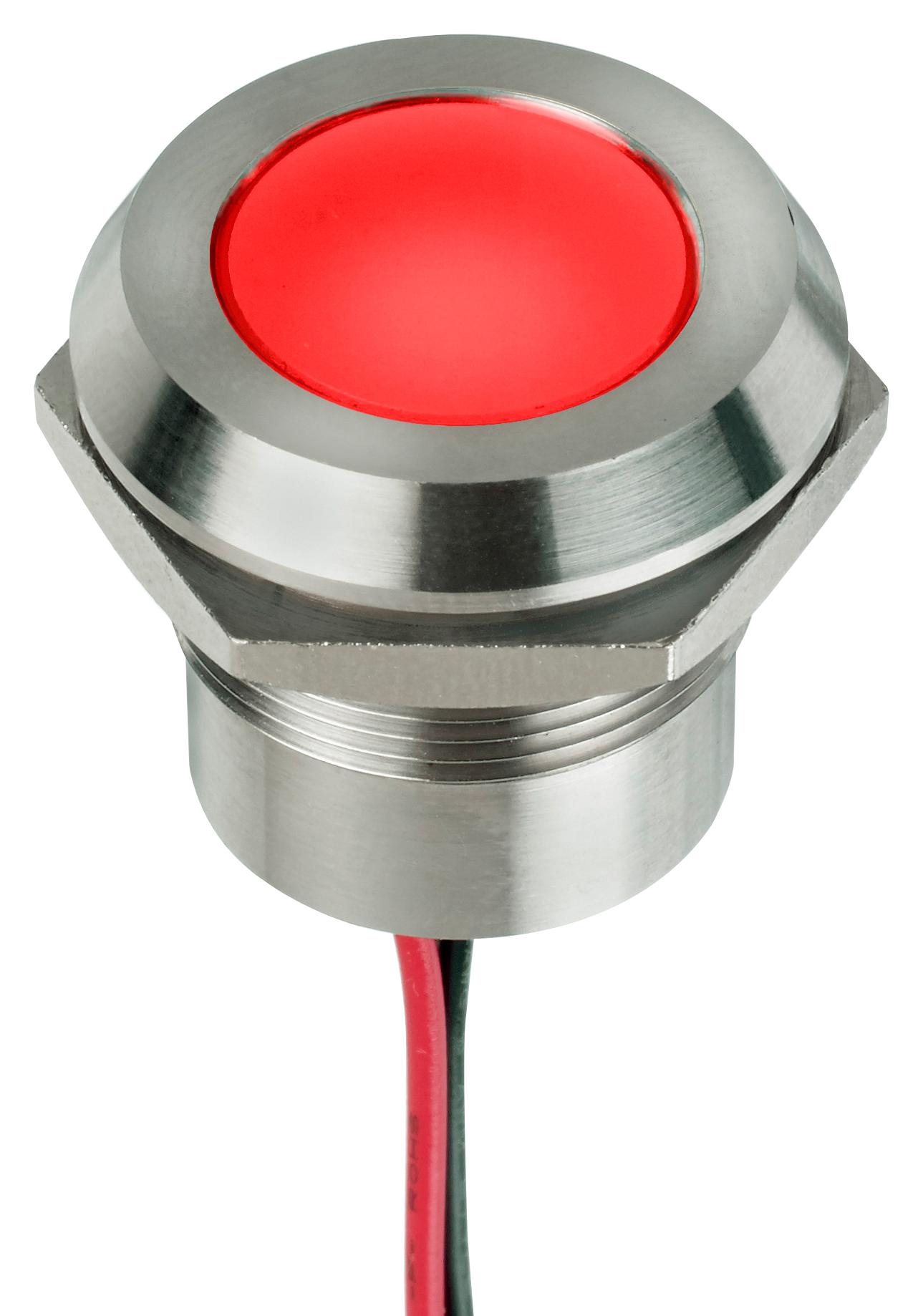

Apem Q22Y5SXXSR220E Panel Mount LED Indicator
The Q22 series are 22 mm panel mount LED indicators designed for industrial and electronic applications. They feature various illumination options, including super bright, RGB, bi-color, and tri-color LEDs, with high luminous intensity and long life expectancy of 100,000 hours. The indicators offer sealed sealing options up to IP67, with front and recessed bezel styles, multiple termination methods, and color options like red, green, yellow, blue, and white. Suitable for panel thickness up to 12 mm, they are ideal for signaling, control panels, and status indication in demanding environments.
Apem Q22Y5SXXSR220E Panel Mount LED Indicator Specifications:
- Diameter: 22 mm
- Operating Voltage: 3.3 to 30 VDC, 110/220 VAC options available
- Current: Max 40 mA (typical 20 mA for LEDs)
- Illumination: Super bright, RGB, bi-color, tri-color options
- Luminous Intensity: up to 1,250 med (white), 980 med (green), 465 med (red)
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Sealing: IP67 (optional), unsealed available
- Material: Brass bezel, polycarbonate rear body, ABS bezel
- Mounting Hole: 22 mm, maximum panel thickness 12 mm
- Terminations: Solder lug, faston, wires, pins
- Environmental temp range: -40°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
Buy the Buy APEM Q22Y5SXXSR220E Part Number Q22Y5SXXSR220E Online
Experience reliable signaling with the APEM panel mount indicator. Featuring high brightness, IP67 sealing, and versatile color options, it ensures visibility and durability in industrial applications. Easy to install with multiple termination methods, the indicator supports panel thickness up to 12 mm, making it adaptable for various control panels. With a long lifespan of 100,000 hours, it is designed for demanding environments. Order online now to enhance your control systems with this high-quality, easy-to-maintain LED indicator, ensuring optimal performance and safety.
Get APEM Q22Y5SXXSR220E today—built for precise signaling and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Apem Q22Y5SXXSR220E?
You can click on the BUY or RFQ button to purchase Q22Y5SXXSR220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SXXSR220E?
You can download the Q22Y5SXXSR220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SXXSR220E?
Apem
