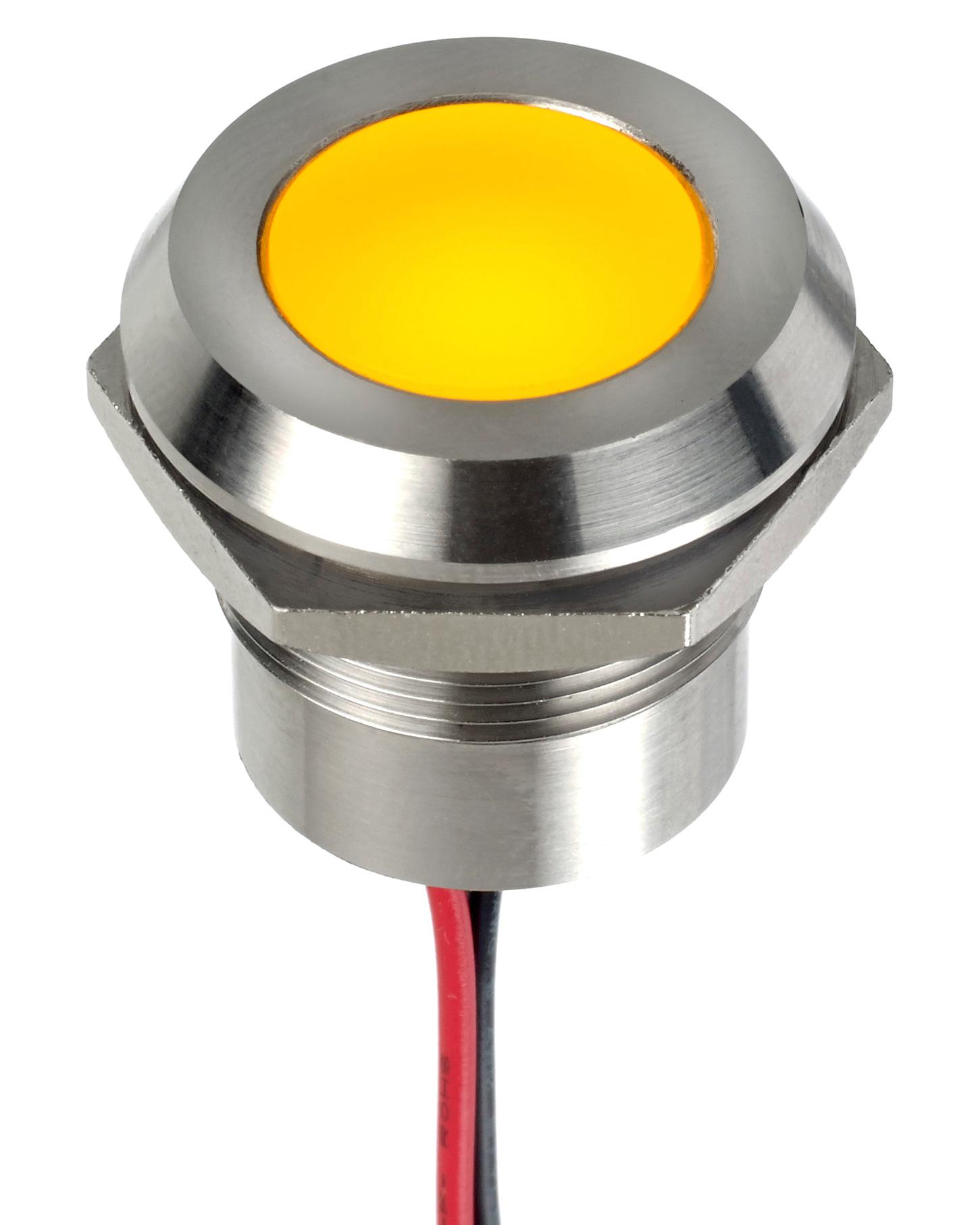

Apem Q22Y5SXXSY220E Panel Mount LED Indicator
The Q22 series are 22 mm panel mount LED indicators designed for rugged environments, featuring a 16.75 mm diffused epoxy lens or high-brightness LEDs. These indicators come with optional IP67 sealing, customizable engraving, and various mounting options including solder lug, faston terminals, pins, or 200 mm wire terminations. Available in multiple colors including RGB, they deliver up to 100,000 hours of life, with operating temperatures from -30°C to +85°C and maximum panel thicknesses of 12 mm. Suitable for diverse industrial applications requiring reliable, high-visibility status indication.
Apem Q22Y5SXXSY220E Panel Mount LED Indicator Specifications:
- Size: 22 mm diameter panel mount
- Lens: 16.75 mm diffused epoxy or super bright LEDs
- Sealing: Optional IP67 (EN60529)
- Operating Temperature: -30°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
- Max Panel Thickness: 12 mm (Prominent), 10 mm (Flush)
- Electrical: Max Reverse Voltage 5 V, operating currents up to 40 mA
- Viewing Angle: 30-100° depending on model
- LED Lifespan: 100,000 hours
- Materials: Plated brass bezel, polycarbonate, ABS plastic
- Mounting: panel, with various terminal options including solder lug, faston, pins, or wire
- Colors: Red, Green, Yellow, Blue, White, RGB, Tricolor, Bi-color, Super Bright variants
Buy the Buy Q22 Series Panel Mount LED Indicators Part Number Q22Y5SXXSY220E Online
Order the Q22 series panel mount LED indicators online today to benefit from durable, high-quality illumination solutions for industrial, automotive, or machinery applications. These indicators feature various colors, including RGB options, and customizable options such as engravings and sealing ratings. Suitable for installations up to 12 mm thick, they offer a lifespan of 100,000 hours with wide viewing angles and reliable electrical performance. Perfect for status indication in harsh environments, ensuring clear visibility and long-term durability in your control panels and equipment.
Get Q22 Series LED Indicator with high-brightness LEDs and IP67 sealing today—built for rugged industrial environments and long-lasting visibility.
Frequently Asked Questions
Where can I buy Apem Q22Y5SXXSY220E?
You can click on the BUY or RFQ button to purchase Q22Y5SXXSY220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SXXSY220E?
You can download the Q22Y5SXXSY220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SXXSY220E?
Apem
