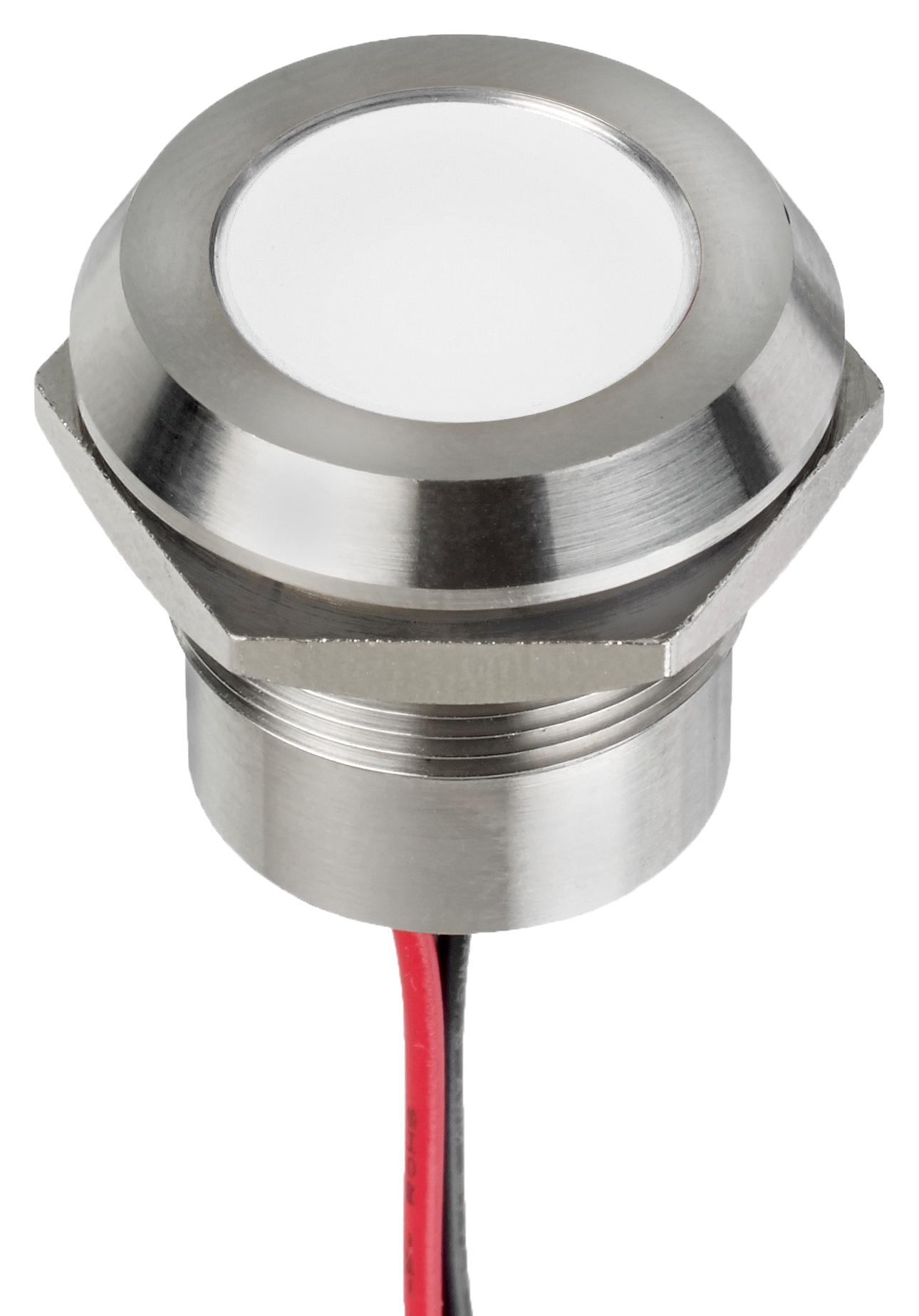

Apem Q22Y5SXXW12E Panel Mount LED Indicator
The Q22 series panel mount LED indicators are 22 mm diameter, suitable for various applications with optional environmental sealing up to IP67. They feature diffused epoxy or super bright LEDs in multiple colors including RGB, yellow, red, green, and blue. These indicators are designed with sleek bezels in bright chrome, satin grey, or black, and feature solder lug, faston terminals, pins, or custom wire terminations up to 200 mm. They offer long life expectancy of 100,000 hours and are ideal for status indication in industrial environments, with operating temperatures ranging from -40°C to +85°C depending on body type.
Apem Q22Y5SXXW12E Panel Mount LED Indicator Specifications:
- Diameter: 22 mm
- Lens Types: Diffused epoxy or super bright LEDs
- LED Colors: Red, Green, Yellow, Blue, White, RGB, Bi-color, Tri-color
- Sealing: Up to IP67 (optional)
- Operating Temperature Range: -30°C to +65°C (plastic body), -40°C to +85°C (epoxy body)
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100° (model dependent)
- Maximum Panel Thickness: 12 mm (prominent), 10 mm (flush)
- Bezel Materials: Plated brass, ABS plastic
- Electrical: Forward Voltage varies by color, typical 3.3V to 6.0V, Operating Current: 40 mA (max)
- Connection Terminals: Solder lug, faston, pins, or wires up to 200 mm length
- Optional features include secret until lit polycarbonate decals, custom engraving
- Electrical Sealing Options: Unsealed, Daisy Chain, Lamp Test, Sealed options available
- Environmental Ratings: Sealing up to IP67, operating temperature up to 85°C
- Other: Suitable for panel mounting in industrial control and automation environments
Buy the APEM Series Q22 LED: Panel Mount Indicator Q22Y5SXXW12E
Purchase the APEM Q22Y5SXXW12E panel mount LED indicator today for reliable status indication in industrial control panels. Designed with durable materials, high-quality LEDs, and sealing options up to IP67, it ensures long-lasting performance even in harsh environments. With a wide range of colors—including RGB, yellow, red, green, and blue—this indicator provides versatile visual signals. Easy to install with solder lug, faston, pins, or custom wiring, it is ideal for machinery, automation, and control panels requiring clear, visible status indicators that last for 100,000 hours of operation.
Get APEM Q22Y5SXXW12E today—built for durability, long-lasting LED illumination, and versatile mounting options.
Frequently Asked Questions
Where can I buy Apem Q22Y5SXXW12E?
You can click on the BUY or RFQ button to purchase Q22Y5SXXW12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SXXW12E?
You can download the Q22Y5SXXW12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SXXW12E?
Apem
