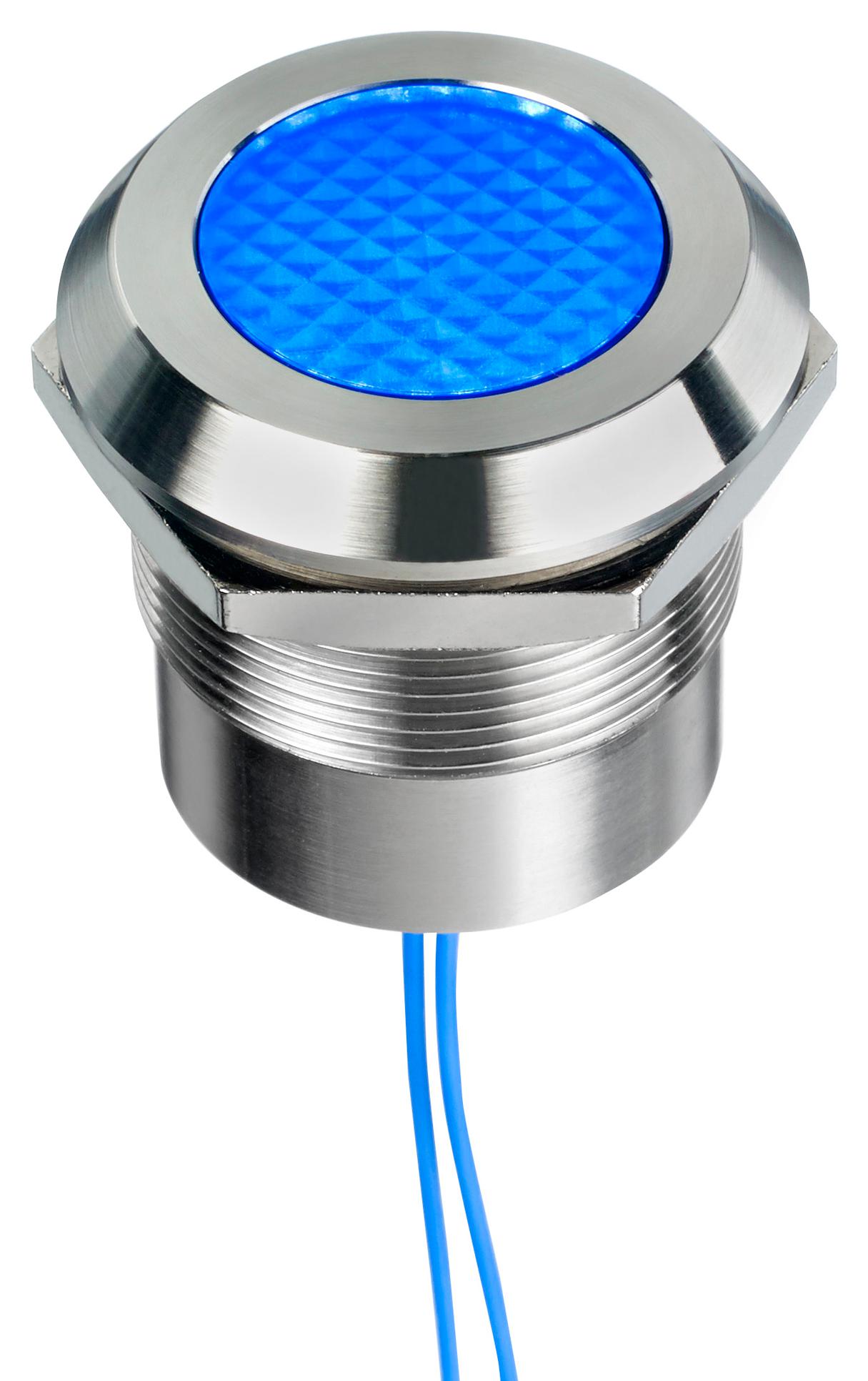

Apem Q25Y5SXXB1AE Panel Mount LED Indicator
The Q25 Series panel mount LED indicators feature a 25mm diameter with a durable stainless steel 316L body and PC lens, offering IP67 & IP69K sealing for harsh environments. They operate at 12 to 24 VAC/DC with a current of 30mA, and have a long life expectancy of 100,000 hours. These indicators include an 18.2mm colored Fresnel lens, 200mm wiring, and reverse and over-voltage protection. Suitable for applications requiring robust, sealed indicators with a variety of LED colors and easy panel mounting, they are ideal for industrial control panels and machinery.
Apem Q25Y5SXXB1AE Panel Mount LED Indicator Specifications:
- Diameter: 25mm
- Body Material: Stainless steel 316L
- Lens Material: PC
- Lens Type: Fresnel, 18.2mm colored
- Sealing: IP67 & IP69K
- Operating Voltage: 12 to 24 VAC/DC
- Current: 30mA nominal
- Reverse Voltage Protection: Yes
- Over-voltage Protection: Activates at 36 V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Wire Length: 200 mm (standard), 20 AWG UL1007
- Maximum Panel Thickness: 9mm
- Materials: Nitrile O-ring, stainless steel body
- Mounting Torque: 0.75 Nm
- Temperature Range: -40°C to +85°C operating, -40°C to +100°C storage
- Bolt Thread: M25 x 1.0
- Color Options: Red, Green, Yellow, Blue, White
- Sealing Type: Rear epoxy sealed
Buy the APEM Series Q25 LED Indicator: Q25Y5SXXB1AE
Order the APEM Q25Y5SXXB1AE panel mount LED indicator today to enhance your control panels. Crafted with stainless steel and sealed to IP67 & IP69K standards, it ensures reliability in harsh environments. Operating at 12 to 24V with a long lifespan of 100,000 hours, this LED indicator offers excellent visibility with multiple color options. Its robust build, 200mm wiring, and easy mounting make it ideal for industrial, automation, and machinery applications, delivering superior performance and extended service life.
Get APEM Q25Y5SXXB1AE today—built for precision, durability, and reliable industrial performance with sealed, customizable LED indicators.
Frequently Asked Questions
Where can I buy Apem Q25Y5SXXB1AE?
You can click on the BUY or RFQ button to purchase Q25Y5SXXB1AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q25Y5SXXB1AE?
You can download the Q25Y5SXXB1AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q25Y5SXXB1AE?
Apem
