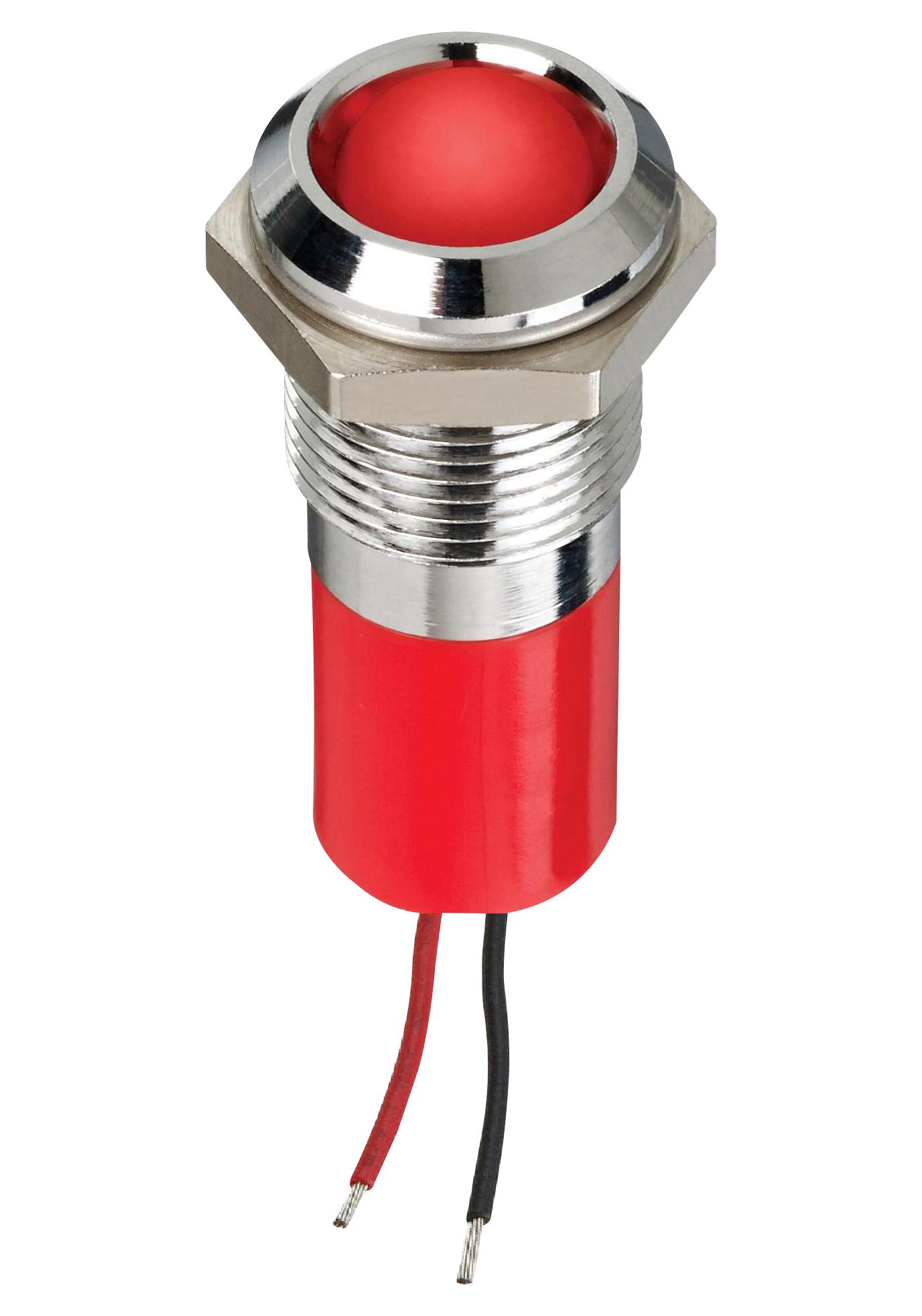

Apem Q14P3CXXR24E Panel Mount LED Indicator
The Q14 series panel mount LED indicators feature 14 mm diffused epoxy or water-clear lenses, available in RGB, super bright LEDs with long life expectancy of 100,000 hours, and multiple termination options such as solder lug, faston terminals, pins, or long wire terminations. Designed for industrial and control applications, they offer prominent bezel styles, customizable engraving, sealed models with IP67 rating, and operating temperatures from -40°C to +85°C depending on the body. Suitable for various mounting and illumination requirements with high reliability and visibility in harsh environments.
Apem Q14P3CXXR24E Panel Mount LED Indicator Specifications:
- Lens Diameter: 14 mm diffused epoxy or water-clear lenses
- LED Lifespan: 100,000 hours
- Operating Temperature Range: Rear plastic body -30°C to +65°C, rear epoxy body -40°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Sealing Option: IP67
- Material: Plated brass bezel in bright chrome, black, satin grey; molded polycarbonate rear body
- Termination Options: Solder lug, faston terminals, pins, wire terminations up to 200 mm
- Max Panel Thickness: 11 mm
- Mounting Hole: 14x1.0 mm thread
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tricolor
- Electrical Voltage: 1.8 V to 33 VDC, 6 VDC to 220 VAC, with resistor requirement for some voltages
- Illumination Types: Fixed, flashing, hyper bright, super bright, RGB, bi-color, tricolor
Buy the Buy APEM Q14P3CXXR24E Part Number Q14P3CXXR24E Online
Order the APEM Q14 series panel mount LED indicator online today for robust, high-brightness illumination solutions suitable for industrial and control systems. With options including RGB, bi-color, tricolor, and various termination styles, these indicators provide excellent visibility and durability, featuring IP67 sealing and extended temperature ranges from -40°C to +85°C. Custom engraving options allow for easy identification, making them ideal for harsh environments requiring reliable performance and versatile mounting options. Enhance your control panels with this premium LED indicator today.
Buy APEM Q14P3CXXR24E now and experience unmatched reliability and high visibility in harsh environments with customizable illumination options.
Frequently Asked Questions
Where can I buy Apem Q14P3CXXR24E?
You can click on the BUY or RFQ button to purchase Q14P3CXXR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P3CXXR24E?
You can download the Q14P3CXXR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P3CXXR24E?
Apem
