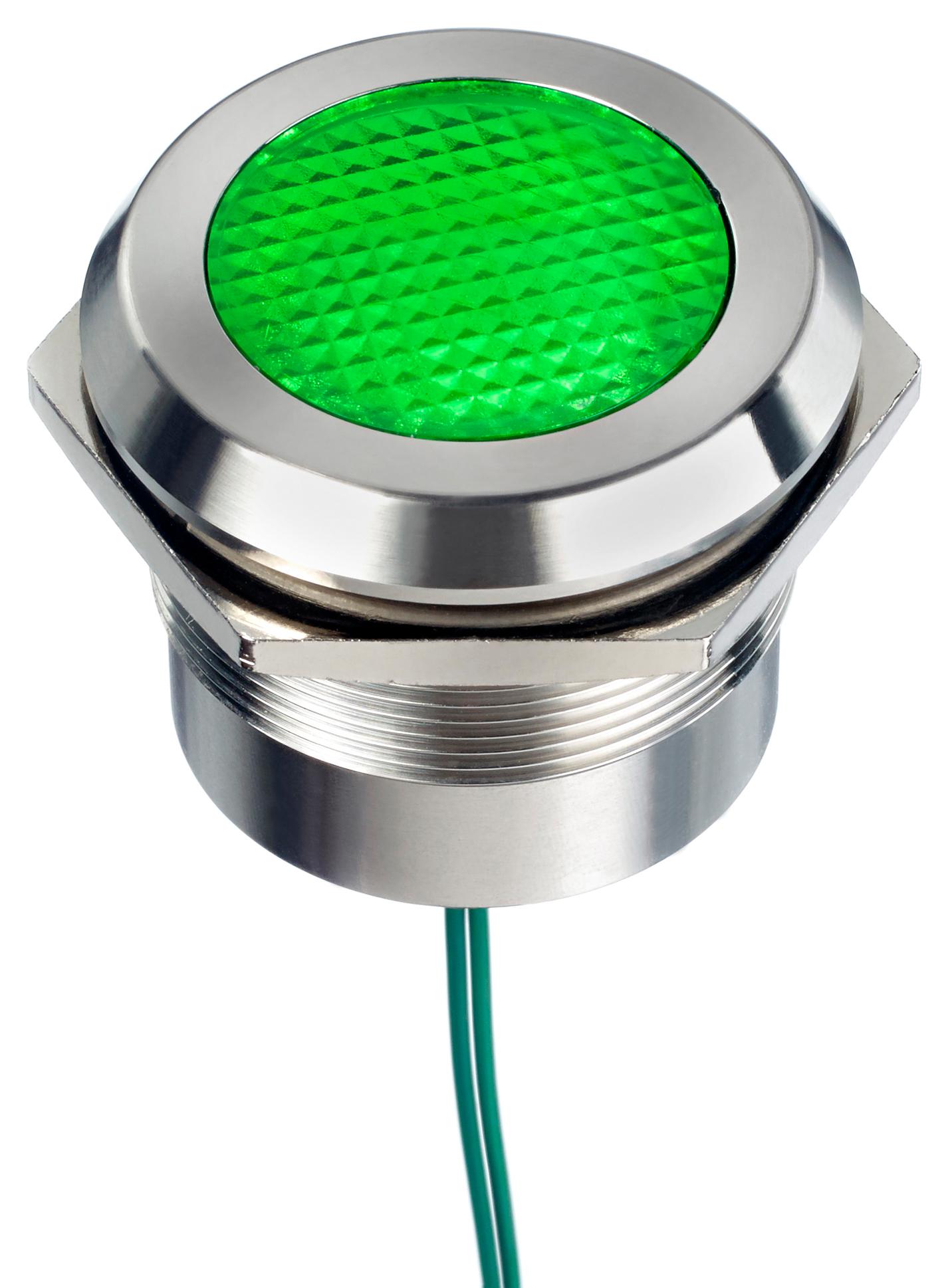

Apem Q30Y5SXXG1AE LED Indicator
The Q30 Series panel mount LED indicators feature a 23.2mm coloured Fresnel lens, 200 mm long wire terminations, and are sealed to IP67 & IP69K standards for harsh environments. Constructed with stainless steel 316L bodies, they operate at 12-24Vac/dc with a current of 30mA, offering a lifespan of 100,000 hours and a viewing angle of 60°. Suitable for panel thicknesses up to 9mm, these indicators are protected against reverse voltage and over-voltage. They come in multiple colours including red, green, yellow, blue, and white, with terminals and sealing options for versatile industrial use.
Apem Q30Y5SXXG1AE LED Indicator Specifications:
- Lens Diameter: 23.2mm
- Wire Length: 200mm (standard 20 AWG UL1007)
- Operating Voltage: 12 to 24Vac/dc
- Current Consumption: 30mA
- Reverse Voltage Protection: Yes
- Over-voltage Protection: 36V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 9mm
- Sealing Standards: IP67 & IP69K
- Material: Stainless steel 316L body, PC lens, Nitrile o-ring
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- LED Colours: Red, Green, Yellow, Blue, White
- Mounting Torque: 75 cNm / 0.75 Nm
Buy the Buy APEM Q30Y5SXXG1AE Part Number Q30Y5SXXG1AE Online
Purchase the APEM Series Q30Y5SXXG1AE LED indicator online to improve your machinery or control systems. These high-quality, sealed LED indicators boast a 23.2mm lens, stainless steel construction, and a long 100,000-hour lifespan. Designed for quick panel mounting with a maximum thickness of 9mm, they operate at 12-24Vac/dc with low power consumption of 30mA. The versatile series offers multiple colours such as red, green, yellow, blue, and white for various signalling needs and is protected against harsh environmental conditions. Use these indicators to ensure reliable, clear visual status indicators in industrial environments.
Order your APEM SeriesQ30Y5SXXG1AE LED indicator today and enhance your industrial control panels with reliable, durable illumination.
Frequently Asked Questions
Where can I buy Apem Q30Y5SXXG1AE?
You can click on the BUY or RFQ button to purchase Q30Y5SXXG1AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q30Y5SXXG1AE?
You can download the Q30Y5SXXG1AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q30Y5SXXG1AE?
Apem
