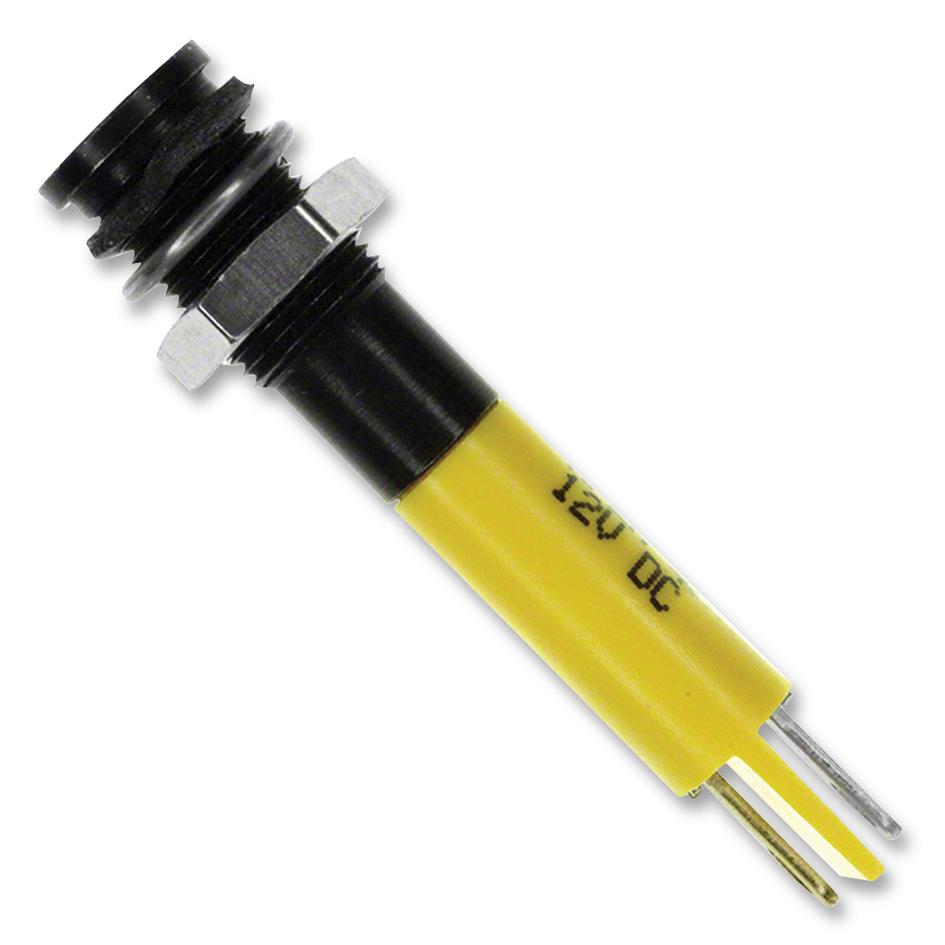

Apem Q6F1BXXY12E LED Indicator
The 6mm panel mount LED indicator with IP67 sealing features a sleek black bezel and is available in multiple colors including yellow, red, green, blue, and white. Designed for panel mounting, it offers a range of voltages from 2VDC to 28VDC, with options for prominent, recessed, and flush bezel styles. The indicator supports solder lug terminals, pins, or wire terminations, and is UL recognized, suitable for harsh environments. With an operating temperature range from -40°C to +85°C and a lifespan of 100,000 hours, it provides reliable visual signaling for industrial applications.
Apem Q6F1BXXY12E LED Indicator Specifications:
- Diameter: 6mm
- Bezel: Black chrome, chrome, or satin grey finishing available
- Seal: IP67 waterproof sealing
- Mounting: Panel mounted with M6 x 0.5 thread
- Voltage Range: 2VDC to 28VDC (up to 28VAC/DC with resistor)
- Forward Voltage: 2.0V (Red), 2.2V (Green), 2.0V (Yellow), 3.3V (Blue, White), 2.0V (Orange)
- Luminous Intensity: Ranges from 8mcd to 1200mcd depending on color and brightness
- Viewing Angle: 30° to 100° depending on model
- Current: 20mA typical
- Operating Temperature: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Terminals: Solder lug, pins, or 200mm wire termination
- Certifications: UL Recognized
Buy the APEM Series Q6 LED Indicator: Q6F1BXXY12E
Purchase the APEM Series Q6 yellow LED indicator now to upgrade your panel with a durable, waterproof, highly visible indicator. This 6mm LED features a black bezel, IP67 sealing, and supports multiple voltage options up to 28VDC or 28VAC/DC, ensuring excellent performance in harsh environments. It offers various mounting styles including prominent, recessed, and flush bezels, with solder lug, pin, or wire terminations for flexible installation. Designed for long-lasting service, it provides reliable visual signaling for industrial, automation, and control applications.
Order your APEM Series Q6 yellow LED indicator today and enhance your industrial control panels with reliable, waterproof signaling solutions.
