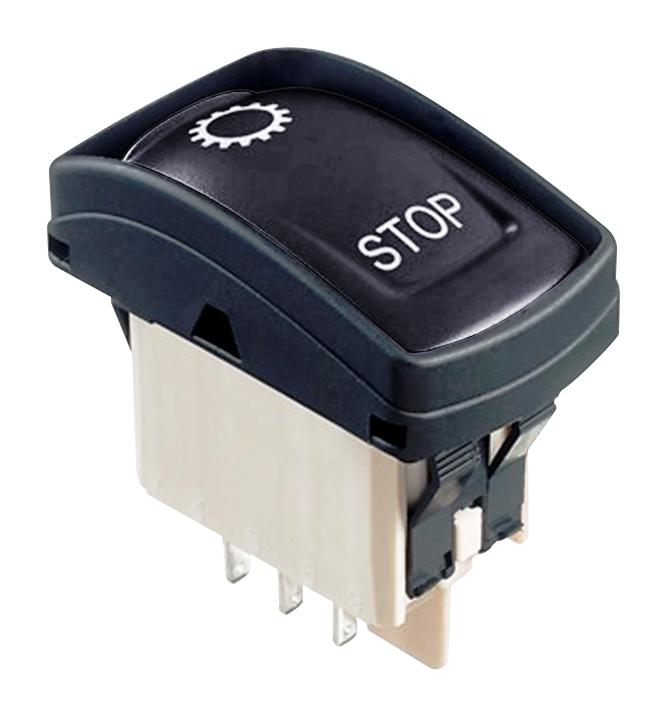

Apem KH146AAZXXG12NXXXXXX Power Rocker Switch
The Power rocker switches with protection guard from the KH series offer safety features such as protection against accidental actuation, environmental sealing to IP69K, and durability with a mechanical life of at least 150,000 cycles. These switches feature sealed construction resistant to salt spray, vibration, and operating temperatures from -40°C to +85°C. They are suitable for industrial use with options including illuminated or non-illuminated versions, various contact configurations (silver or gold plated), and robust materials like PA 6-6 and ABS. Designed for panel thicknesses between 2 mm and 4.6 mm, these switches incorporate sealed contacts, high dielectric strength, and copper alloy terminals, making them ideal for demanding environments.
Apem KH146AAZXXG12NXXXXXX Power Rocker Switch Specifications:
- Sealing: IP69K according to DIN 40050-9
- Operating Temperature: -40°C to +85°C
- Salt Spray Resistance: 96 hours IEC 512-6, test 11f
- Vibration Resistance: 10-500 Hz / 10 g IEC 60068-2-6
- Mechanical Life: at least 150,000 cycles
- Contact Material: Brass, solid silver grain, silver plated, or brass with gold plating
- Current/Voltage Rating with Resistive Load: 5 A 24 VDC for silver contacts, 20 mA 12 V for gold contacts
- With lamp load: 100 W 24 VDC (silver), 60 W 24 VDC (silver contacts)
- Panel Thickness: 2 mm to 4.6 mm; recommended 2 to 3.5 mm
- Materials: Case and bezel - PA 6-6; actuator - ABS; contacts - brass
- Dimensions: Suitable for panel cut-out and mounting with quick-connect terminals
- Includes LED options with various voltages and symbols, laser etched or pad printed symbols, and resistant to UV, petrol, and water.
- Electrical Ratings: 10 A 24 VDC, 150,000 cycles (gold plated) and 5 A 24 VDC, 100,000 cycles (silver plated).
Buy the APEM Series KH Power Rocker Switch: KH146AAZXXG12NXXXXXX
Order the APEM series KH power rocker switch online today and benefit from high IP69K sealing, durable construction, and versatile contact configurations. Ideal for harsh industrial environments, these switches feature illuminated or non-illuminated options, with robust materials like PA 6-6 and ABS ensuring long-term operation. With high mechanical lifecycle, sealed contacts resistant to salt spray, vibration, and temperature variations, they are perfect for demanding applications. Elevate your equipment's safety and reliability by purchasing this premium switch online with confidence.
Buy APEM KH146AAZXXG12NXXXXXX power rocker switch now and experience unmatched reliability and industrial-grade performance.
